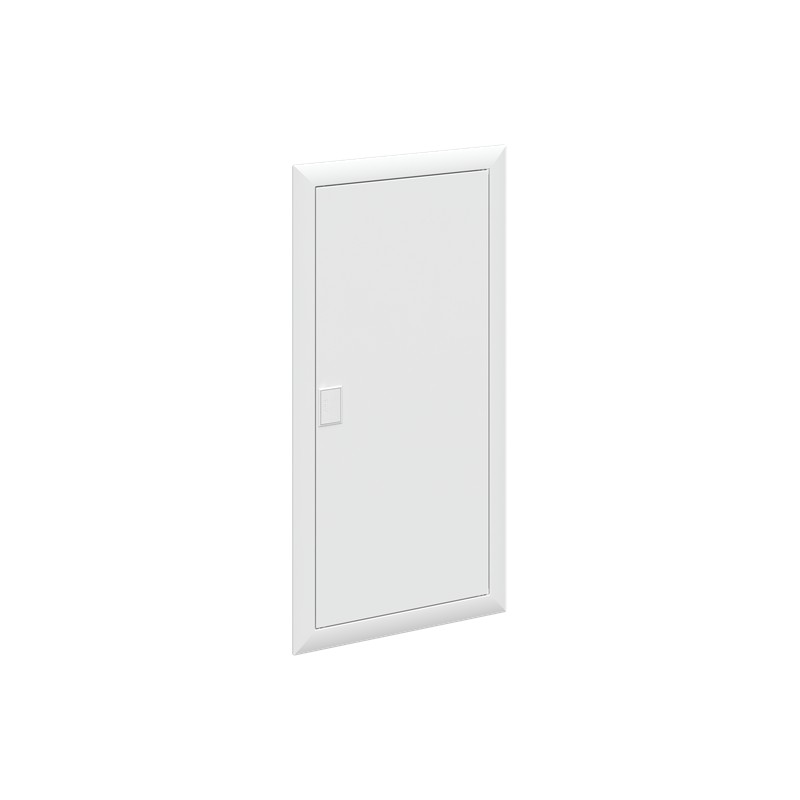

2CPX031084R9999 ABB BL640 frame door 4R RAL 9016
2CPX031084R9999
ABB
BL640 frame door 4R RAL 9016
Residential boxes
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- BL640
- Product ID:
- 2CPX031084R9999
- EAN:
- 4011617310846
- Catalog Description:
- BL640 frame door 4R RAL 9016
- Long Description:
- Trim frame and door, suitable for UK64... consumer unit, powder-coated sheet steel, color: Alpine white, RAL 9016, the tip-in closure impresses with its modern design and simple operation, a safety lock is available as an accessory for more security, simple removal of the trim frame and door with a flush-mounted option
Ordering
- E-Number (Sweden):
- 2201196
- EAN:
- 4011617310846
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85389099
Dimensions
- Product Net Width:
- 384mm
- Product Net Height:
- 747mm
- Product Net Depth / Length:
- 33mm
- Product Net Weight:
- 2.283kg
Container Information
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Width:
- 390.000 mm
- Package Level 1 Height:
- 756.000 mm
- Package Level 1 Depth / Length:
- 40.000 mm
- Package Level 1 Gross Weight:
- 2.374 kg
- Package Level 1 EAN:
- 4011617310846
Additional Information
- Accessory Type:
- door with frame
- Color:
- Traffic white
- Degree of Protection:
- IP30
- DIN Place Units:
- 48
- Enclosure Type:
- Closed cover with door
- Field Width:
- 1
- Material:
- Steel
- Number of Rows:
- 4
- Product Main Type:
- BL
- Product Name:
- BL640 frame door 4R RAL 9016
- Surface Finishing:
- Powder coating
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
2CPC000031C0101
2CPC000187C0101
2CPC000188C0101
- Declaration of Conformity - CE:
- No declaration needed
- Instructions and Manuals:
- 2CPC130111M5601
Classifications
- ETIM 5:
- EC000747 - Door/operating panel (switchgear cabinet)
- ETIM 6:
- EC000747 - Door/operating panel (switchgear cabinet)
- ETIM 7:
- EC000747 - Door/operating panel (switchgear cabinet)
- Object Classification Code:
- U
- WEEE Category:
- Product Not in WEEE Scope
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 59 Mbytes |
|
| 2CPX031084R9999 2CPX031084R9999 EN_2CPX031084R9999.pdf | 126 Kbytes |
|
