> DANFOSS REFRIGERATION>120U1161 DANFOSS REFRIGERATION Scroll compressor, HRH040U1LP6
Previous Product Next Product

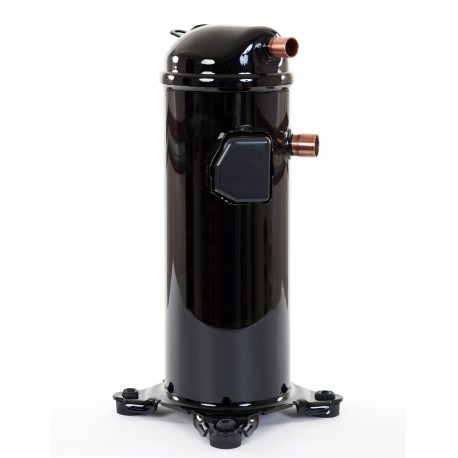

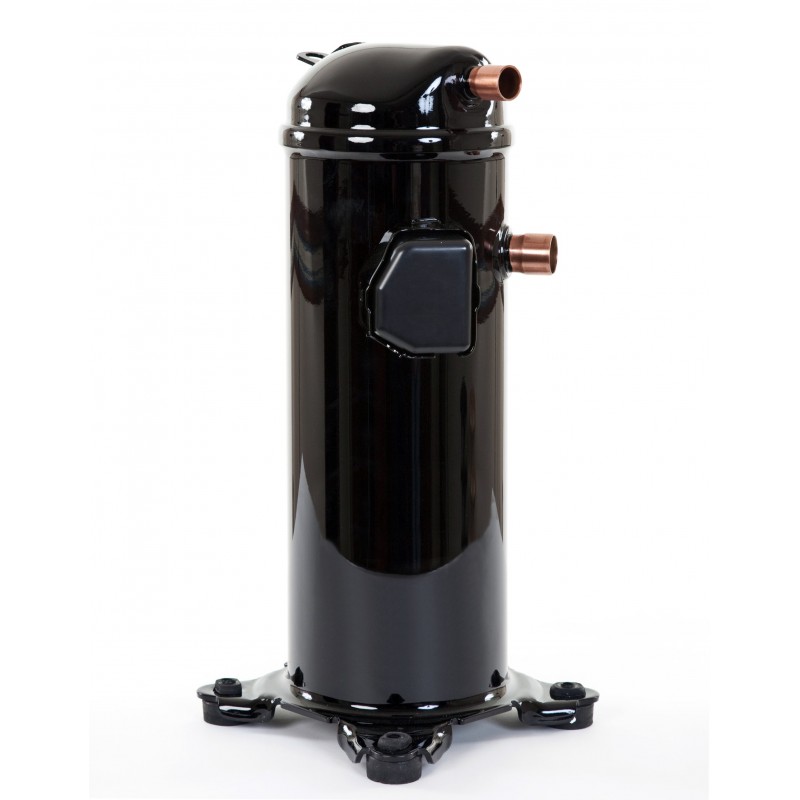

120U1161 DANFOSS REFRIGERATION Scroll compressor, HRH040U1LP6 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

120U1161 DANFOSS REFRIGERATION Scroll compressor, HRH040U1LP6

120U1161

DANFOSS REFRIGERATION

Scroll compressor, HRH040U1LP6

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 230/1/60
Gross weight 33.2 Kg
Net weight 31.35 Kg
EAN 5702428206532
Approval standard CE
UL
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 1.47 Ohm
Brand technique Scroll compressor
Capacity control Fixed speed
Capacity of capacitor A 60 µF
Capacity of capacitor B 88-108 µF
Colour Black
Compressor power supply [V/Ph/Hz] 230/1/60
Configuration code Single
Connection type Brazed
Description HRH040U1
Diameter [mm] 165 mm
Discharge connection height [mm] 405 mm
Discharge connection pipe size [in] 0.5 in
Discharge connection size [in] 0.5 in
Drawing number 0XC6301B-3
Economizer No
Fitting standard ODF
Frequency [Hz] 60
Gauge port HP None
Gauge port LP None
Glass mounting None
High value of nominal voltage at 50Hz [V] 0 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 0 V
High value of voltage range at 60Hz [V] 253 V
IP protection class IP22
Length [mm] 239 mm
Low value of nominal voltage at 50Hz [V] 0 V
Low value of nominal voltage at 60Hz [V] 208 V
Low value of voltage range at 50Hz [V] 0 V
Low value of voltage range at 60Hz [V] 187 V
LRA 115 A
Main winding resistance for single-phase compressors [Ohm] 0.55 Ohm
MCC 32 A
Model number HRH040U1LP6
Motor protection Internal overload protector
Nominal cooling capacity 60 kBTU/h 41.64 KBtu/h
Nominal cooling capacity at 60Hz 12.2 kW
Oil charge [L] 1.33 L
Oil equalization None
Oil reference 320HV
Oil type PVE
Packing format Single pack/pallet
Packing quantity 16
Phase 1
Power connections Spade
Product type HRH
Refrigerant R410A
Refrigerant charge [kg] [Max] 3.63 kg
Relay model 3ARR3*3L*
Relief valve Yes
RLA 21 A
Rotational speed at 50Hz [rpm] 0 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 275 mm
Suction connection pipe size [in] 0.875 in
Suction connection size [in] 0.875 in
Swept volume [cm3] 39.64 cm3
Technology Scroll
Total height [mm] 439 mm
Type designation Compressor
Viscosity [cP] 68 cP
Voltage of capacitor A [V] 370 V
Voltage of capacitor B [V] 330 V
Width [mm] 239 mm
