> EATON - MOELLER>Power XL Frequency Converters>DX-COM-STICK3-KIT 197586 4100100 ELECTRIC Bluetooth communication stick for transferring parameters to..
Previous Product Next Product

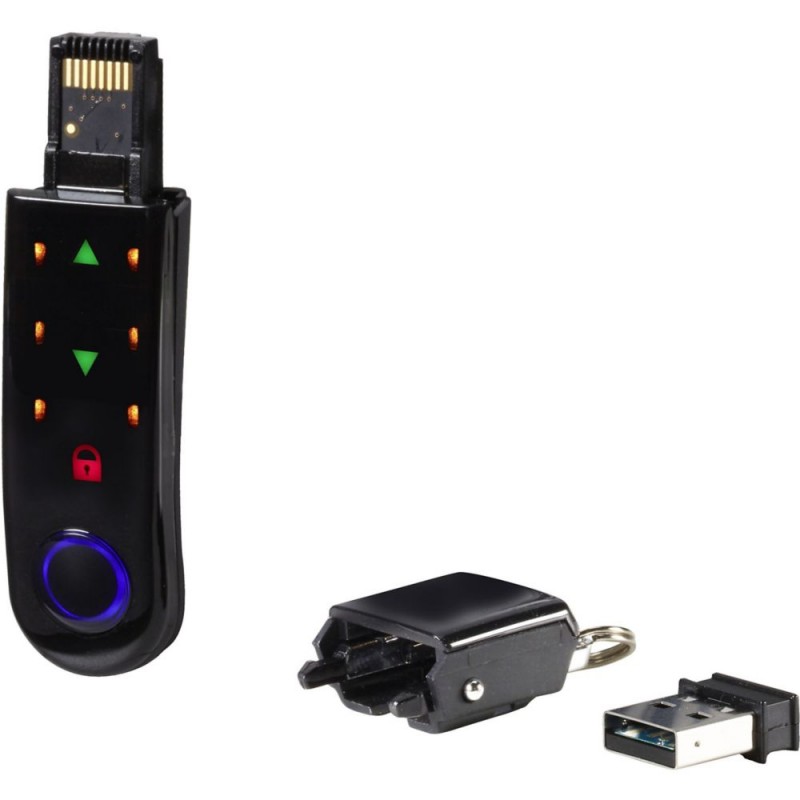

DX-COM-STICK3-KIT 197586 4100100 EATON ELECTRIC Bluetooth communication stick for transferring parameters to.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DX-COM-STICK3-KIT 197586 4100100 EATON ELECTRIC Bluetooth communication stick for transferring parameters to..

DX-COM-STICK3-KIT

197586

Y7-197586

EATON-MOELLER

Bluetooth communication stick for transferring parameters to a PC for DE1, DC1, DB1, DA1 variable frequency drives

DX-COM-STICK3-KIT

Eaton DX Bluetooth communication stick for transferring parameters to a PC for DE1, DC1, DB1, DA1 variable frequency drives DX-COM-STICK3-KIT

More details


Low-voltage industrial components > Accessories/spare parts for frequency controller

Power XL Frequency Converters

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $193.81
Unit price: $193.81

Quantity Price
1+$193.81
4+$161.05
7+$154.21
10+$150.99
13+$149.10
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton DX Communication module
Catalog Number
197586
Model Code
DX-COM-STICK3-KIT
EAN
4015081945221
Product Length/Depth
10 mm
Product Height
80 mm
Product Width
20 mm
Product Weight
0.014 kg
Compliances
CE

Product specifications

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
2 function keys for uploading and downloading parameters
Configuration memory
Bluetooth dongle
Used with
DA1
DB1
DC1
DE1
RAMO5
RASP5
Accessory/spare part type
Communication module
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-10 °C
Functions
For storage, copying parameters, and/or transferring parameters via Bluetooth to a PC with drivesConnect software or the drivesConnect mobile app

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 32 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
DX-COM-STICK3-KIT Y7-197586 197586 EN_197586.pdf 184 Kbytes DX-COM-STICK3-KIT Y7-197586 197586 EN_197586.pdf
