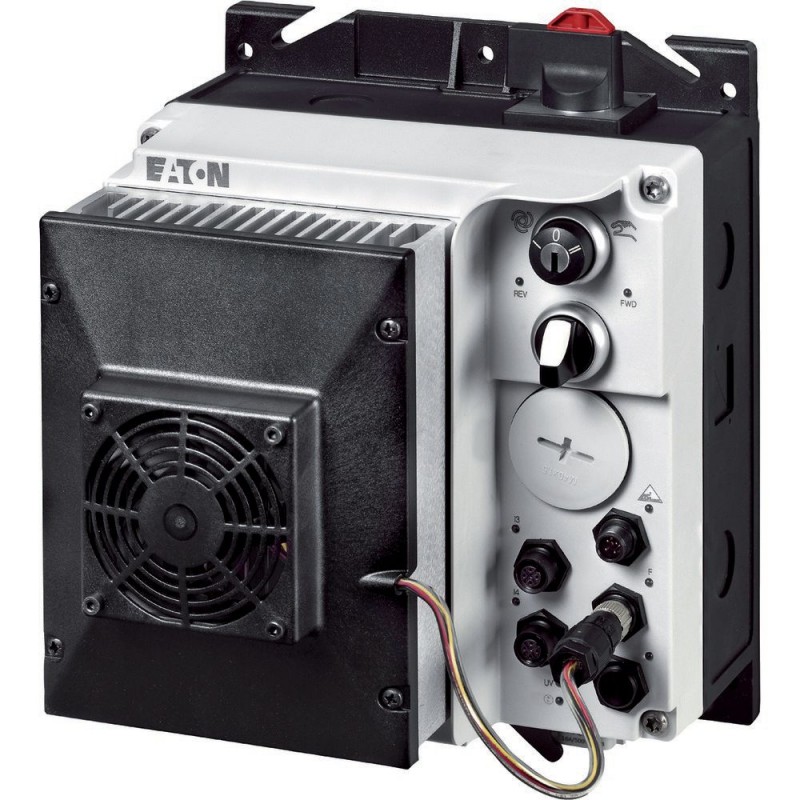

Standards
IEC/EN 61800-5-1
UL 61800-5-1
Guideline 2011/65/EU (RoHS)
CE approval
UL approval
Climatic proofing [ρw]
< 95%, non-condensing
IEC/EN 50178 %
Ambient temperatureOperating ambient temperature min.
0 °C
Ambient temperatureOperating ambient temperature max.
+45 °C
Ambient temperatureStorage [ϑ]
-30 - +70 °C
Rated impulse withstand voltage [Uimp]
2 kV
Radio interference levelEnvironment (EMC)
2. Environment, Class C3
Radio interference levelmaximum motor cable length [I]
10 m
Mechanical shock resistance
1000 shocks per shaft, semi-sinusoidal 15 g/11 ms
IEC/EN 60068-2-27 g
Vibration
Oscillation frequency: 10 - 150 Hz
Amplitude 0.15 mm: 6 Hz
Amplitude transition frequency on acceleration: 57 Hz
IEC/EN 60068-2-6
Mounting position
Vertical
Altitude
0 - 1000 m above sea level
above 1000 m with 1 % performance reduction per 100 m
max. 2000 m m
Degree of Protection
IP65
NEMA12
SupplyRated operational voltage [Ue]
400 V AC, 3-phase
480 V AC, 3-phase
SupplyMains voltage (50/60Hz) [ULN]
380 (-15%) - 480 (+10%) V
SupplyInput current (150% overload) [ILN]
7.3 A
SupplySystem configuration
AC voltage
Center-point earthed star network (TN-S network)
Phase-earthed AC supply systems are not permitted.
SupplySupply frequency [fLN]
50/60 Hz
SupplyFrequency range [fLN]
47 - 66 Hz (± 0%) Hz
SupplyMains switch-on frequency
Maximum of one time every 60 seconds
SupplyMains current distortion [THD]
> 120 %
SupplyRated conditional short-circuit current [Iq]
< 5 kA
SupplyShort-circuit protection for output circuits, external
Type 1 coordination via the power bus' feeder unit
Power sectionFunction
Variable frequency drive with internal DC link and IGBT inverter
Power sectionOn-delay [tON]
30 - 50 ms
Power sectionOff-delay [tOFF]
15 - 35 ms
Power sectionOverload current (150% overload) [IL]
8.4 A
Power sectionNote regarding overload current
at 40 °C
Power sectionNote about max. starting current
for 2 seconds
at 40 °C
Power sectionOutput voltage with Ve[U2]
0 - ULN
Power sectionOutput Frequency [f2]
0 - 50/60 (max. 320) Hz
Power sectionSwitching frequency [fPWM]
6
adjustable 1.5 - 16 kHz
Power sectionOperation Mode
linear, parameterizable
Power sectionFrequency resolution (setpoint value) [Δf]
0.01 Hz
Power sectionRated operational currentAt 150% overload [Ie]
5.6 A
Power sectionNote
Rated operational current at an operating frequency of 6 kHz and an ambient air temperature of +40 °C
Power sectionMotor current limit [I]
1.12 - 11.2
adjustable A
Power sectionEfficiency [η]
0.96 %
Power sectionMaximum leakage current to ground (PE) without motor [IPE]
3.5 mA
Power sectionFan
internal and on heat sink, temperature-controlled
Power sectionFitted with
with manual override switch
with fan
with braking resistance
Motor feederNote
for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1at 50 Hz or 1800 min-1at 60 Hz
Motor feederNote
at 400 V, 50 Hz
Motor feeder150 % Overload [P]
2.2 kW
Motor feederNote
at 480 V, 60 Hz
Motor feeder150 % Overload [P]
3 HP
Motor feederActuator for external motor brakeBreaking voltage [U]
400/480 V AC -15% / +10% V
Motor feederActuator for external motor brakeBraking current [I]
≤ 0.6 A
(max. 6 A for 120 ms) A
Motor feederBraking functionBraking torque [%]
≦ 30 I/Ie
Motor feederBraking functionSwitch-on threshold for the braking transistor [UDC]
765 V DC V
Motor feederBraking functionDC braking [%]
≦ 100, adjustable I/Ie
External control voltage [Uc]
24 V DC - 15 % / + 20 % via AS-Interface®plug V
Interface/field bus (built-in)
AS-Interface®
AS-Interface®
max. total power consumption from AS-Interface® power supply unit (30 V): 250 mA
Specification: S-7.4
Number of slave addresses: 31
