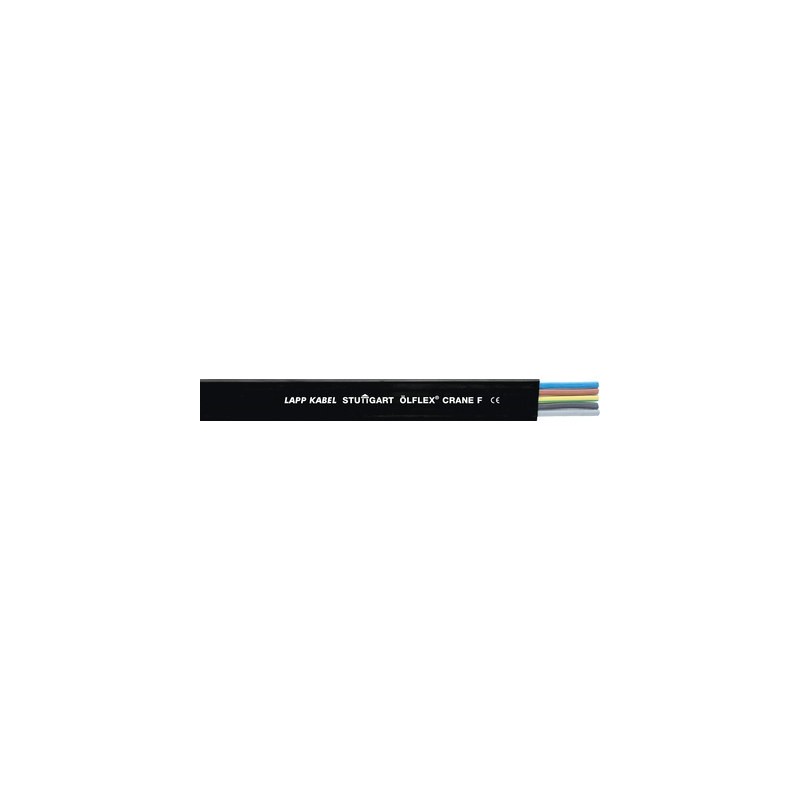

0041059 ÖLFLEX CRANE F 4G16 LAPP Weather-resistant flat rubber cables

Benefits

• Weather-resistant for harsh environmental conditions
• Flat cables need less space than round cables
• Smaller bending radii is possible

Application range

• As a lift control cable: max. 50 m suspension length
• In crane systems on building sites and shipyards for fixed installation, or for flexible use in
  cable trolley systems
• Sewage treatment plants, steelworks and high rack facilities
• The application profiles for ÖLFLEX® CRANE and ÖLFLEX® LIFT cables can be found in the appendix, selection table A3

Product features

• Flame-retardant according IEC 60332-1-2

Norm references / Approvals

• Based on VDE 0250-809 (NGFLGÖU)

Product Make-up

• Conductors: Finely stranded bare copper
• Core insulation: rubber compound
• Outer sheath: special rubber compound

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000825
• ETIM 5.0 Class-Description: Flat cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000825
• ETIM 6.0 Class-Description: Flat cable

Core identification code

• Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
• From 6 cores: black with white numbers

Conductor stranding

• Copper conductor according to VDE 0295/IEC 60228
  up to 25 mm²: extra-fine wire, class 6
  from 35 mm²: fine wire, class 5

Minimum bending radius

• Flexible use: 10 x cable thickness
• Fixed installation: 4 x cable thickness

Nominal voltage

• U0/U: 300/500 V

Test voltage

• 3000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Flexible use: -25°C to +90°C
• Fixed installation: -40°C to +90°C
