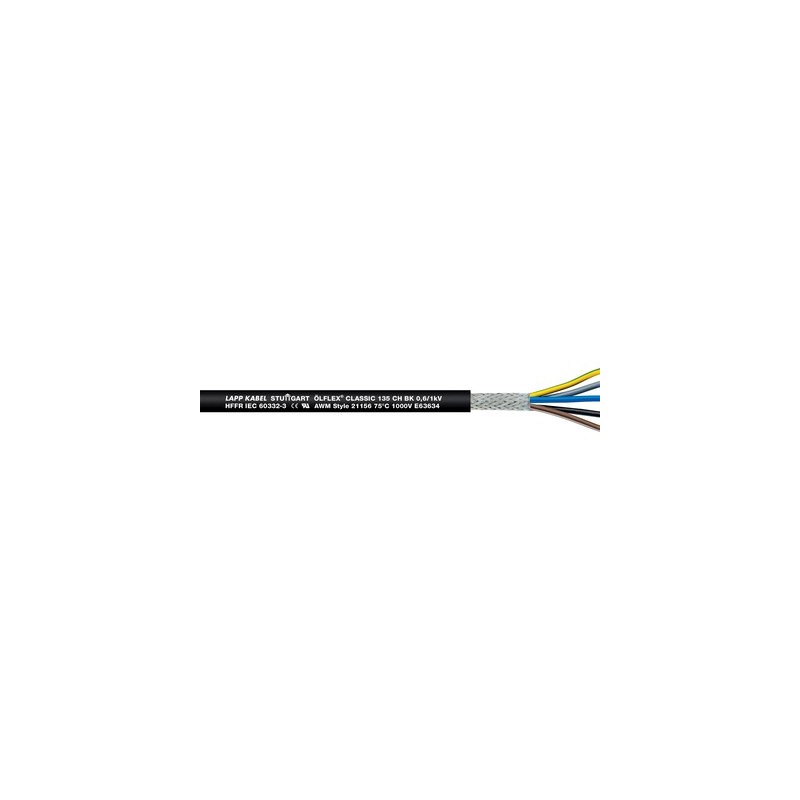

1123478 ÖLFLEX CLASSIC 135 CH BK 0,6/1 kV 4G2,5 LAPP ÖLFLEX CLASSIC 135 CH BK 0,6/1 kV 4G2,5

Benefits

• Easy handling and installation due to flexible design
• Space-saving installation due to small cable diameters

Application range

• Plant engineering
  Industrial machinery
  Heating and air-conditioning systems
• Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards
• For outdoor applications
• According to NFPA 79, subchapter 12.9.2: Use for industrial machinery operated in the USA on the basis of UL AWM (recognized) certification
• Each dimension with nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm: For applications where a strengthened outer sheath may turn out to be advantageous

Product features

• Flame-retardant according to IEC 60332-1-2
  (flame spread on a single cable)
• No flame-propagation according to IEC 60332-3-24 respectively IEC 60332-3-25 (Flame spread on vertical cable or wire bundle)
• Halogen-free according to IEC 60754-1
  (amount of halogen acid gas)
  Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
• Low smoke density according to IEC 61034-2
• UV and weather-resistant according to ISO 4892-2
• Ozone-resistant according to EN 50396

Norm references / Approvals

• Based on EN 50525-3-11
• UL AWM approval: refer to data sheet

Product Make-up

• Fine-wire strand made of bare copper wires
• Core insulation: Halogen-free
• Halogen-free plastic foil wrapping
• Tinned-copper braiding
• Outer sheath made of special halogen-free coumpound, black

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000057
• ETIM 5.0 Class-Description: Low voltage power cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000057
• ETIM 6.0 Class-Description: Low voltage power cable

Core identification code

• Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
• From 6 cores: black with white numbers

Conductor stranding

• Fine wire according to VDE 0295,
  class 5/IEC 60228 class 5

Minimum bending radius

• Occasional flexing: 20 x outer diameter
• Fixed installation: 6 x outer diameter

Nominal voltage

• U0/U: 600/1000 V
• UL: 1000 V

Test voltage

• Core/core: 4000 V
• Core/screen: 2000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Occasional flexing: -25°C to +70°C
  Fixed installation: -40°C to +80°C
• UL: -25°C to +75°C
