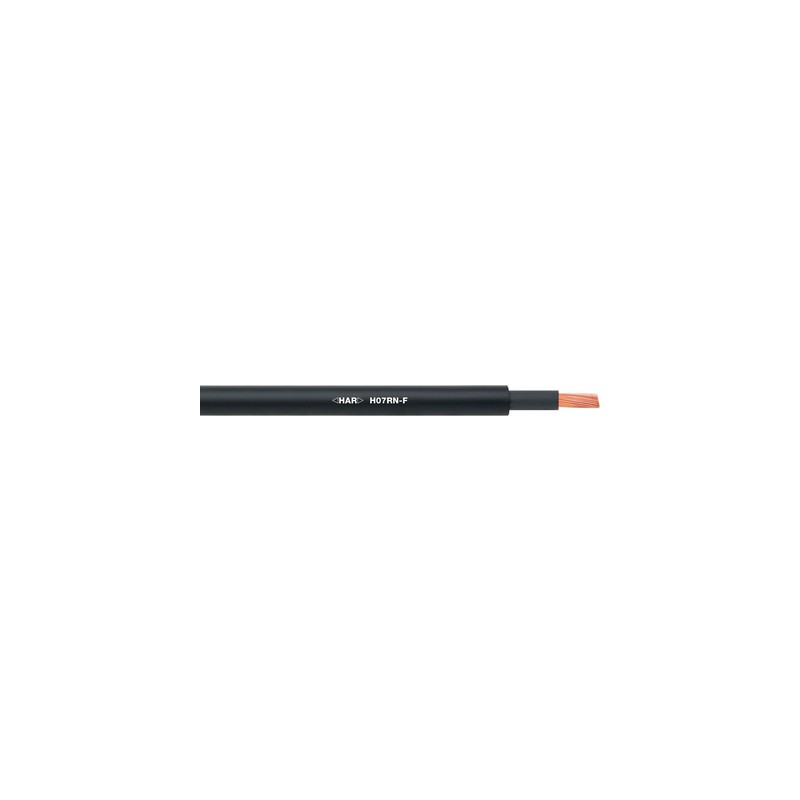

1600195 H07RN-F 1X16 LAPP H07RN-F 1X16

Benefits

• For mechanically more demanding applications
• 1000 V AC at protected + static laying
• Arrangements made of single-core, rubber-sheathed cables H07RN-F can be used for short circuit-proof and short-to-ground-proof installations in accordance with IEC 60364-5-52/ HD 60364-5-52/ VDE 0100 Part 520

Application range

• Handheld and power supply devices according to EN 50565-2
• Medium, mechanical stress
• Industrial, agricultural use
• According to EN 50565-2: In dry, damp and wet rooms as well as for fixed installation e.g. on the plaster

Product features

• Flame-retardant according IEC 60332-1-2
• Oil-resistant according to EN 60811-404

Norm references / Approvals

• <HAR> H07RN-F cable type approval according to EN 50525-2-21

Product Make-up

• Bare copper wire according to HAR
• Core insulation: rubber compound, type EI 4
• Outer sheath: rubber compound, type EM2

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001578
• ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001578
• ETIM 6.0 Class-Description: Flexible cable

Core identification code

• Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
• From 6 cores: black with white numbers

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

• 4 to 8 x outer diameter (EN 50565-1)

Nominal voltage

• U0/U: 450/750 V

Test voltage

• 2500 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Current rating

• According to IEC 60364-5-52/ VDE 0298-4
• EN 50565-1/ VDE 0298-565-1

Temperature range

• Fixed installation: -25°C up to +60°C
• Occasionally moved: -25°C bis +60°C
