> LAPP>UNITRONIC BUS cabling>2170273 UNITRONIC BUS CAN FD P 2X2X0,25 LAPP UNITRONIC BUS CAN FD P 2X2X0,25
Previous Product Next Product

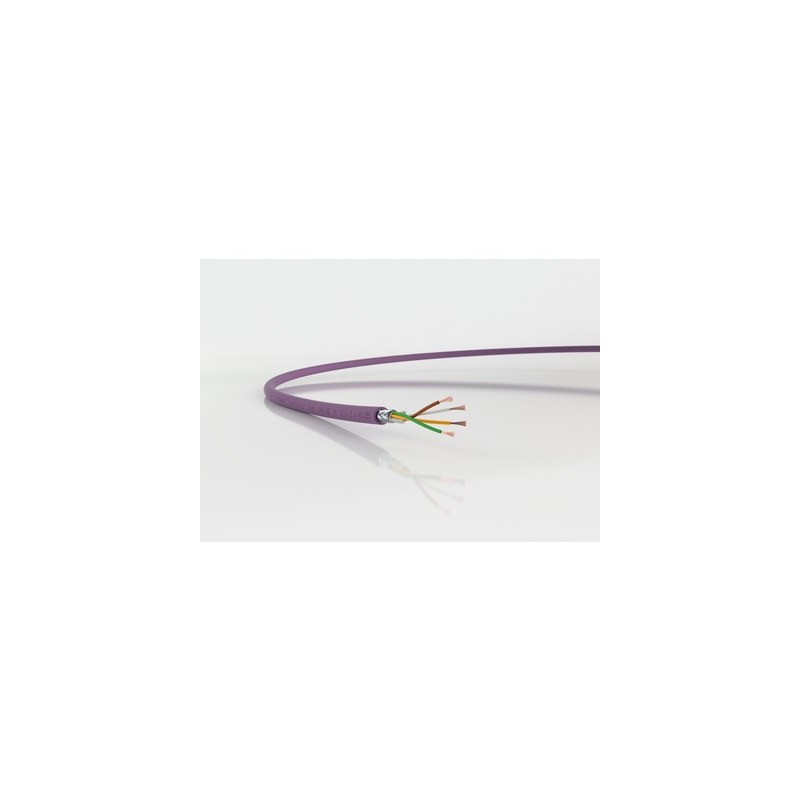

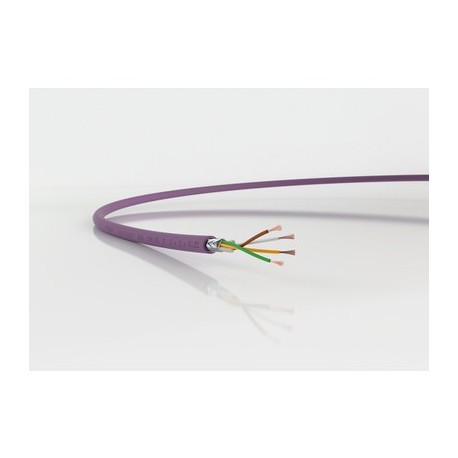

2170273 UNITRONIC BUS CAN FD P 2X2X0,25 LAPP UNITRONIC BUS CAN FD P 2X2X0,25 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2170273 UNITRONIC BUS CAN FD P 2X2X0,25 LAPP UNITRONIC BUS CAN FD P 2X2X0,25

2170273

UNITRONIC BUS CAN FD P 2X2X0,25

LAPP

UNITRONIC BUS CAN FD P 2X2X0,25

UNITRONIC® BUS CAN FD P

More details


Cables > Data and communication cable

UNITRONIC BUS cabling

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $5.26
Unit price: $5.26

Quantity Price
100+$4.45
200+$4.10
300+$4.03
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


For CAN based communication systems like CANopen. Halogen free, flame retardant acc. to IEC 60332-1-2, temperature range from -40°C bis +80°C

Application range

  • For highly flexible applications

Product features

  • Halogen-free
  • Maximum bit rate: 1 Mbit/s for 40 m
    segment length
  • Larger conductor cross-section is necessary with increasing length. Refer to the table below (reference values from ISO 11898).
  • ISO 11898 makes recommendations for the segment length, cable cross section and bit rate
  • Flame-retardant according IEC 60332-1-2

Norm references / Approvals

  • Standardised internationally in ISO 11898
  • UL/CSA type CMX (UL 444)

Product Make-up

  • Stranded bare conductor
  • Core insulation: foam skin
  • Copper braid
  • Outer sheath: PUR, violet (RAL 4001)
  • UV-resistant (but colour may change after some time)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000830
  • ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000830
  • ETIM 6.0 Class-Description: Data cable

Mutual capacitance

  • (800 Hz) max. 40 nF/km

Peak operating voltage

  • 250 V (not for power transmission)

Conductor resistance

  • (loop): max. 159.8 ohm/km

Minimum bending radius

  • Flexing: 15 x outer diameter

Test voltage

  • Core/core: 1500 V rms

Characteristic impedance

  • 120 ohm

Temperature range

  • Fixed installation: -40°C to +80°C
  • Flexing: -30°C to +70°C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
2170273 UNITRONIC BUS CAN FD P 2X2X0,25 2170273 EN_2170273.pdf 250 Kbytes 2170273 UNITRONIC BUS CAN FD P 2X2X0,25 2170273 EN_2170273.pdf
