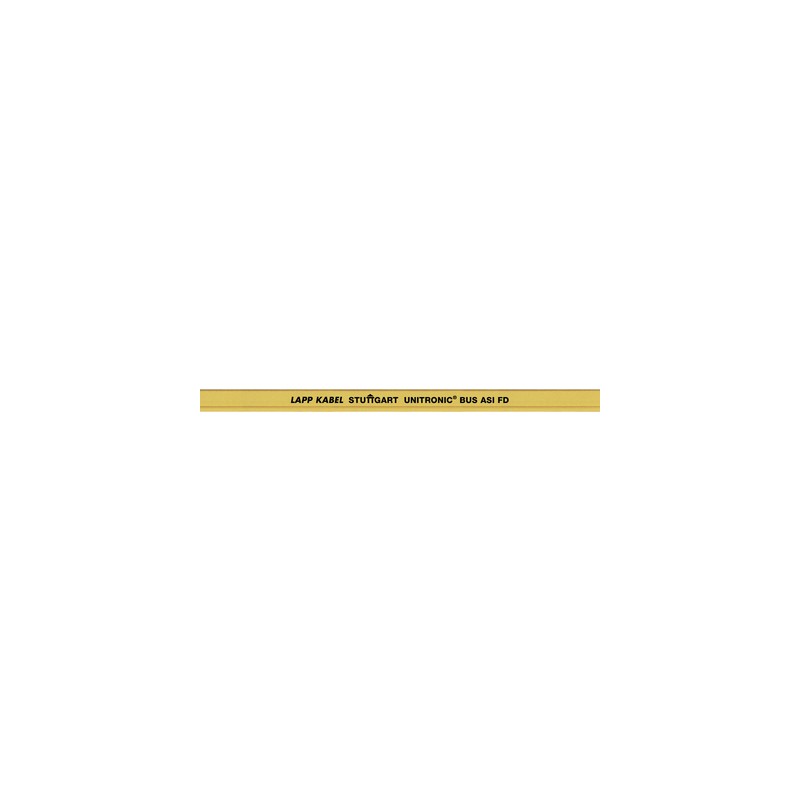

2170357 UNITRONIC BUS ASI FD P FRNC YE LAPP UNITRONIC BUS ASI FD P FRNC YE

Benefits

• The new BUS ASI LD 2 x 2.5 (Long Distance) allows even modules located further away to be connected.
  AS-I power supplies can be reduced. The BUS ASI LD is downwards-compatible with version 1.5.
• For highly flexible applications (power chains, moving machine parts)
• High oil-resistance

Application range

• Communication at sensor/actuator level
• Sensor-/actuator wiring

Product features

• PUR versions are halogen-free according to IEC 60754-1
• Flame-retardant according to IEC 60332-1-2, UL FT-2 flame test
• Data and power are transmitted via an unscreened, geometrically coded two-core flat cable (protection against polarity reversal).
• The conductor is contacted by "piercing technology" within the ASI modules.
• The sensors are connected to the ASI modules (coupling modules) using round cables (connection cables).

Norm references / Approvals

• ASI is standardised Europe-wide in EN 50295 and internationally in IEC 62026-2.
• TPE variant: UL AWM Style 2103
  CSA AWM II A/B

Product Make-up

• Extra-fine wire, tinned copper strands
• core insulation: halogen-free compound
• Outer sheath:
  TPE
  PUR
• Outer sheath: yellow (RAL 1023), black (RAL 9005)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Peak operating voltage

• 300 V (not for power applications)

Conductor resistance

• 1.5 mm²: max. 13.7 Ohm/km
• 2.5 mm²: max. 8.21 Ohm/km

Minimum bending radius

• Fixed installation: 12 mm
• Flexing without fixing: 24 mm
  Flexing with fixing: 60 mm (15 x D)

Test voltage

• Core/core: 2000 V

Temperature range

• Fixed installation:
  -40°C to +80°C (TPE +105°C)
• Flexing – without fixing:
  -30 °C to +70 °C (TPE +105 °C)
