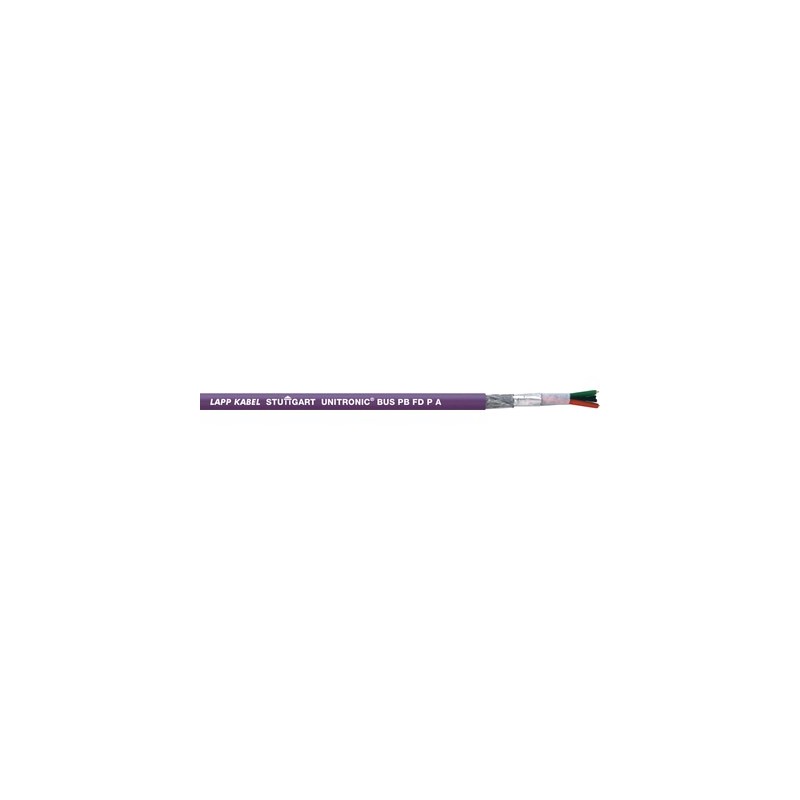

2170822 UNITRONIC BUS PB FD P A 1X2X0,64 LAPP Halogenfree, highly flexible PROFIBUS cable UL/CSA certified

Benefits

• For use where the combination of a halogen-free outer sheath with properties similar to PUR and enhanced flame-retardance is required
• Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP

Application range

• PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also suitable for FIP - Factory Instrumentation Protocol).
• For highly flexible applications (power chains, moving machine parts)
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

• Halogen-free
• Flame-retardant according IEC 60332-1-2
• Oil-resistant
• Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
  (cable type A, PROFIBUS-DP):
  93.75 kbit/s = 1200 m
  187.5 kbit/s = 1000 m
  500 kbit/s = 400 m
  1.5 Mbit/s = 200 m
  12.0 Mbit/s = 100 m

Norm references / Approvals

• Certification: UL/CSA type CMX in accordance with UL 444 and CSA C22.2 no. 214

Product Make-up

• Stranded bare copper wire
• Core insulation: foam skin, (O2YS)
• Overall screening with copper braid and plastic-laminated aluminium foil
• Outer sheath: PUR, violet (RAL 4001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Mutual capacitance

• (800 Hz): max. 30 nF/km

Peak operating voltage

• (not for power applications) 250 V

Torsion movement in WTG (wind turbine generator)

• TW-0 & TW-2, refer to Appendix T0

Minimum bending radius

• 65 mm

Test voltage

• Core/core: 1500 V rms

Characteristic impedance

• 150 ± 15 Ohm

Temperature range

• Flexing: -30°C to +70°C
• Fixed installation: -40°C to +80°C
