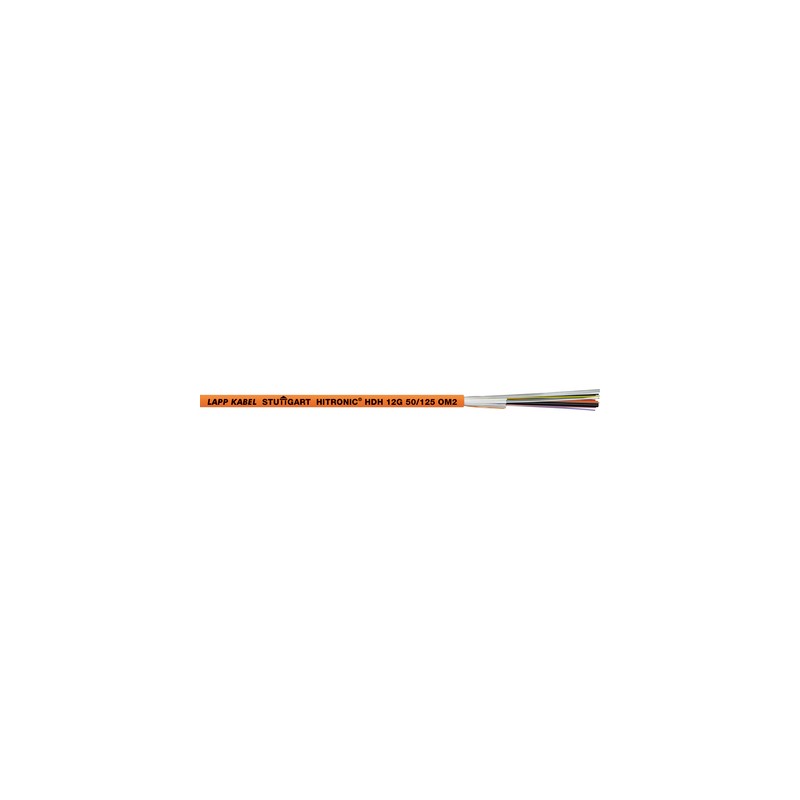

26010212 HITRONIC HDH 12G 50/125 OM2 LAPP HITRONIC HDH 12G 50/125 OM2

Benefits

• Very easy to install due to small dimensions, high flexibility, and small bending radius
• Suitable for field assembly
• Universal cable for cabling of
  buildings
• Zero electromagnetic interference as the cable contains no metal (totally dielectric)

Application range

• For indoor use
• Tertiary cabling
• Structured cabling - backbone
• Methods of Deployment: laying in trunking, ducts, trays, empty plastic pipes, building riser, raised floors and plenums

Product features

• Up to 12 tight-buffered fibres (900µm)
• Colour-coded fibres
• Outer sheath flame-retardant and halogen-free
• Mechanically robust

Product Make-up

• Tight-buffered fibres
• Water-blocking reinforced glass yarn strain relief
• LSZH outer sheath
• Colour: aqua (RAL 6027) for OM3,
  orange (RAL 2003) for OM2 and OM1
• Available on request: single-mode OS2 (yellow) and multimode OM4 (violet)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000034
• ETIM 5.0 Class-Description: Fibre optic cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000034
• ETIM 6.0 Class-Description: Fibre optic cable

Dimensions

• tight-buffer (secondary coated fibre): 900µm
• Cable: see table

Core identification code

• Buffered-fibre colour code see
  data sheet

Fibre type

• GOF - Glass Optical Fibre

Standard designation

• J-V(ZN)H

Optical values

• see data sheet

Optical fibre type

• Core material: glass
• Cladding material: glass

Permissible bending radius

• Static: ≥ 15 x outer diameter
• Dynamic: ≥ 20 x outer diameter

Temperature range

• Fixed installation: -20°C to +70°C
