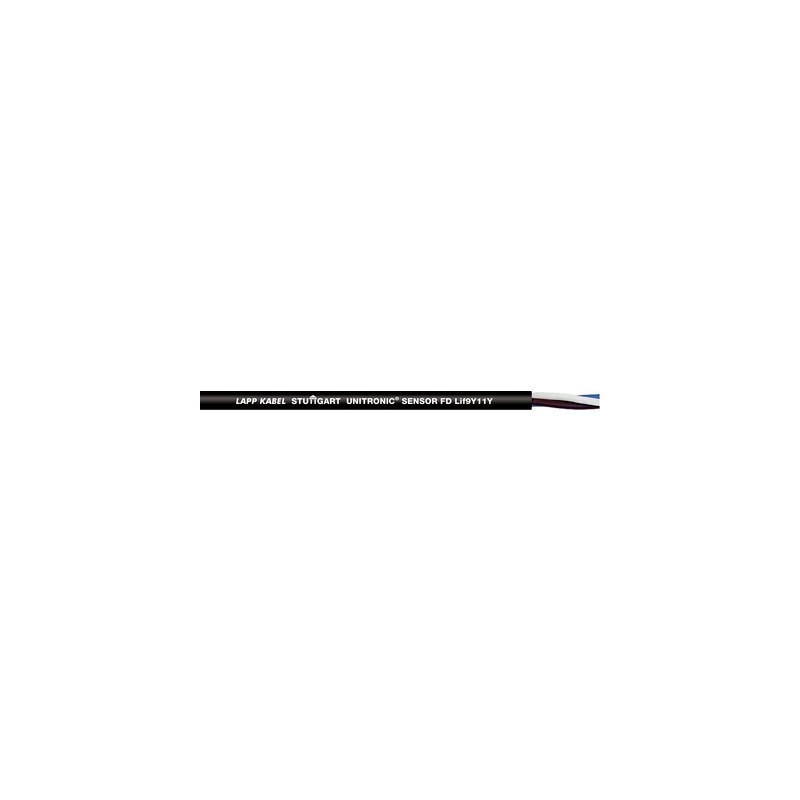

7038889 UNITRONIC SENSOR FD Lif9Y11Y 3x0,25 LAPP UNITRONIC SENSOR FD Lif9Y11Y 3x0,25
7038889
UNITRONIC SENSOR FD Lif9Y11Y 3x0,25
LAPP
UNITRONIC SENSOR FD Lif9Y11Y 3x0,25
UNITRONIC® SENSOR FD
UNITRONIC BUS cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Often bought together
▲Best sellers
▲More info
▲Cables for wiring sensors/actuators in demanding environments. For use in drag chains, halogen-free, to connect with M8 and M12 connectors.
For applications with high mechanical stress and demanding operating conditions
proceeds
- Designs for extra-flexible use
- Abrasion resistant
- Abrasion resistant.
- Space saving thanks to compact dimensions
Scope of use
- Automation technology
- Sensor/actuator wiring
- Plant Engineering
- Assembly and production lines
Product features
- Uv resistant
- Halogen-free according to VDE 0472-815
- flame-retardant according to IEC 60332-2-2, UL 1581 FT-2
- Suitable for use in energy chains
- Designed for a service life of 4 million bending cycles and a horizontal travel distance of up to 10 m
Reference Standards / Approvals
- UL AWM Style 20549
Product composition
- Super-fine braided conductors of bare copper wires (class 6)
- Conductor insulation: PP
- Color coding:
3 pins: brown, blue, black
4 pins: brown, white, blue, black
5 pins: brown, white, blue, black, gray
8 pins: brown, white, green, yellow, gray, pink, blue, red - Cover: PUR, black
ETS Classification 5
- ETIM 5.0 Class ID: EC001578
- ETIM Class 5.0 Description: Flexible Cable
ETTIM Rating 6
- ETIM 6.0 Class ID: EC001578
- ETIM 6.0 Class-Description: flexible cable
Working crest tension
- (not suitable for power) 300 V
Driver training
- Extra-thin wire, according to VDE 0295 CIase 6 / IEC 60228 CIase 6
Minimum radius of curvature
- Fixed installation: 5 x outer diameter
- Flexible use: 10 x outer diameter
Temperature range
- Occasional flexible use: -25°C to +80°C
- Fixed installation: -40°C to +80°C
