> LAPP>UNITRONIC BUS cabling>7038894 UNITRONIC ROBUST S/A FD 4x0,34 LAPP UNITRONIC ROBUST S/A FD 4x0,34
Previous Product Next Product

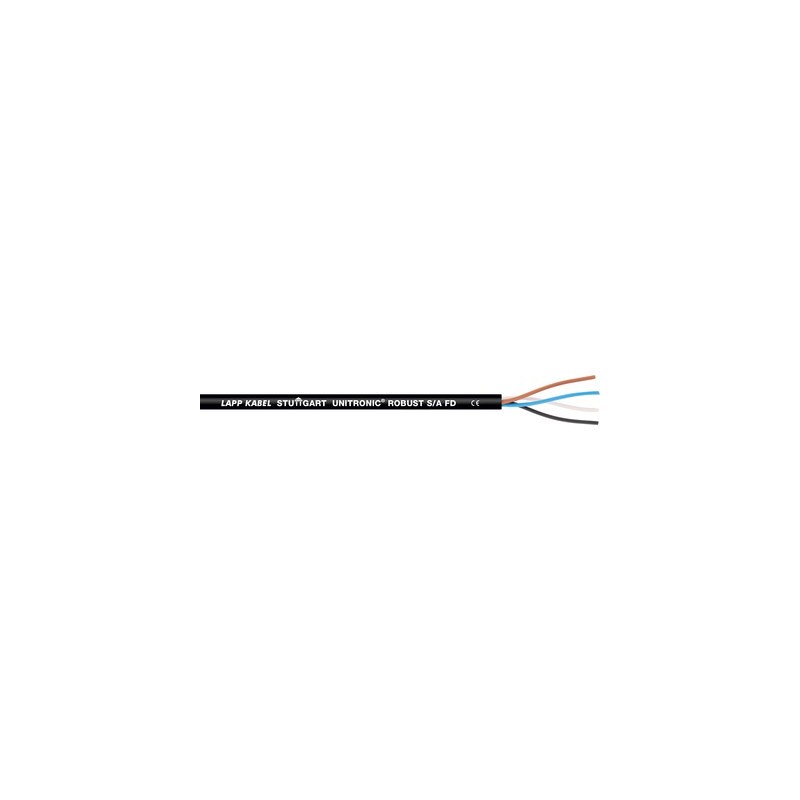

7038894 UNITRONIC ROBUST S/A FD 4x0,34 LAPP UNITRONIC ROBUST S/A FD 4x0,34 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

7038894 UNITRONIC ROBUST S/A FD 4x0,34 LAPP UNITRONIC ROBUST S/A FD 4x0,34

7038894

UNITRONIC ROBUST S/A FD 4x0,34

LAPP

UNITRONIC ROBUST S/A FD 4x0,34

UNITRONIC® ROBUST S/A FD

More details


UNITRONIC BUS cabling

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $2.04
Unit price: $2.04

Quantity Price
100+$2.04
200+$1.79
400+$1.64
500+$1.60
700+$1.56
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


Cables for wiring sensors/actuators in demanding environments. For use in drag chains, halogen-free, to connect with M8 and M12 connectors.

  • Good chemical resistance please see Appendix T1
  • Excellent weather resistance.
  • Flexible at low temperatures

proceeds

  • Exceptional resistance to ozone, UV radiation and adverse weather circumstances, with a wide temperature range that allows versatile use in both indoor and outdoor applications
  • Resistant to contact with bio oils, emulsions, fats and waxes of vegetable, animal or synthetic origin
  • High performance against hot and cold water, as well as water-soluble detergents and refrigerants
  • Suitable for steam cleaning
  • Good resistance to ammonia compounds and biogases

Scope of use

  • Automation technology
  • Machine tool manufacturing, medical technology, laundries, car wash equipment, chemical industry, composting factories, wastewater treatment plants
  • Food and beverage industry, especially for dairy and meat production and processing equipment

Product features

  • Good chemical resistance to ester-based hydraulic liquids
  • Resistant to ozone, UV radiation and weathering according to EN 50396 and HD 605 S2
  • Suitable for use in energy chains
  • Torsion resistant
  • Halogen-free

Reference Standards / Approvals

  • Certified resistance to disinfectant and cleaning agents used in the food and beverage industry
  • ECOLAB®
    Industry standard in the professional field of cleaning and disinfection

Product composition

  • Extra-fine bare copper threads
  • Conductor insulation: PE (Polyethylene)
  • Color coding:
    3 pins: brown, blue, black
    4 pins: brown, white, blue, black
    5 pins: brown, white, blue, black, gray
  • Special TPE outer shell
  • Cover color: black

ETS Classification 5

  • ETIM 5.0 Class ID: EC001578
  • ETIM Class 5.0 Description: Flexible Cable

ETTIM Rating 6

  • ETIM 6.0 Class ID: EC001578
  • ETIM 6.0 Class-Description: flexible cable

Driver Identification Code

  • according to EN 60947-5-2

Driver training

  • Extra-thin wire, according to VDE 0295 CIase 6 / IEC 60228 CIase 6

Minimum radius of curvature

  • Mobile: 5 times the outside diameter
  • Fixed installation: 3 x outer diameter

Temperature range

  • Flexible use: -40°C to +90°C
  • Fixed installation: -50ºC to +90ºC

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
