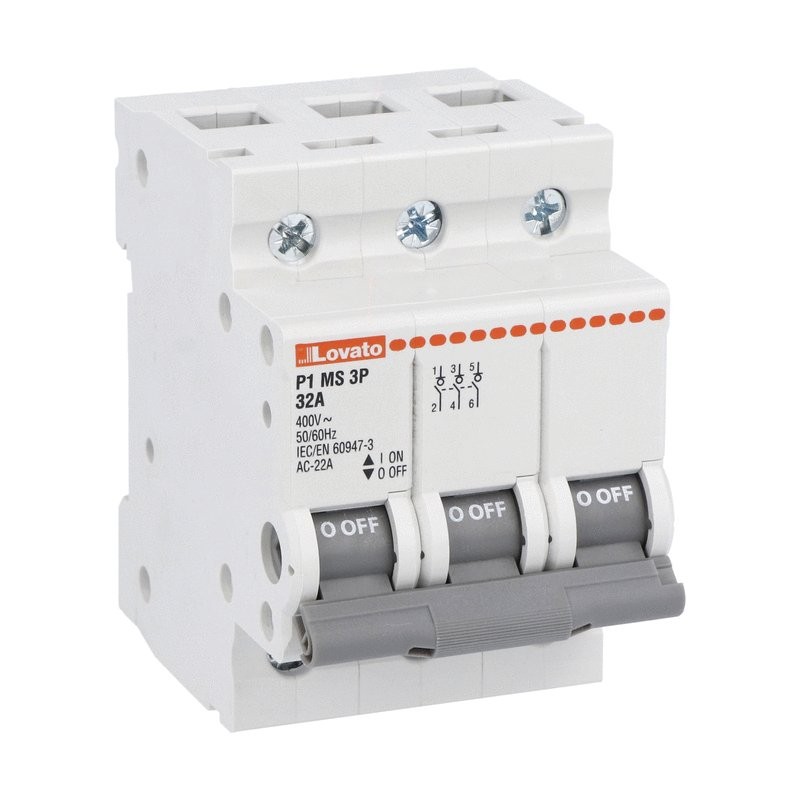

P1MS3P032 LOVATO MODULAR SWITCH DISCONNECTOR 3P 32A
P1MS3P032
LOVATO ELECTRIC
MODULAR SWITCH DISCONNECTOR - 3P 32A
Modular switch disconnector - 3P 32A
Miniature and residual circuit breakers
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | P1MS3P032 |
| Weight [g] | 240 |
| Qty. per package | 4 |
| Multiple qty. of packs per order | 4 |
| Package dimensions [mm] | 080X080X050 |
| Volume [cm³] | 320 |
| Bar code [EAN13] | 8013975267332 |
| HS Code | 85362010 |
Dimensions
Wiring diagram
Certifications:
TÜV-Rheinland
EAC
TÜV-Rheinland
EAC
Compliance:
IEC/EN/BS 60947-3.
IEC/EN/BS 60947-3.
| Product designation | Switch disconnector | |||
| Product type designation | P1MS | |||
| Number of poles | 3P | |||
| Number of DIN modules | 3 | |||
| Compliance | IEC | |||
| Electrical features | ||||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 4 | ||
| Rated operational voltage AC (IEC) | VAC | 400…440 | ||
| Rated frequency | Hz | 50/60 | ||
| Rated current (In) | A | 32 | ||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -25 | ||
| max | °C | +70 | ||
| Max altitude | m | 2000 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| Fixing | 35mm DIN rail | |||
| Tightening torque for terminals | ||||
| min | Nm | 3.2 | ||
| max | Nm | 3.5 | ||
| min | Ibin | 28.3 | ||
| max | Ibin | 31 | ||
| Terminals tool | Pz2 | |||
| Conductor section | ||||
| IEC | ||||
| min | mm² | 1 | ||
| max | mm² | 50 | ||
| AWG/Kcmil | ||||
| min | 16 | |||
| max | 1 | |||
| Mechanical life | cycles | 20000 | ||
| Weight | g | 250 | ||
| Pollution degree | 3 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC000042 - Miniature circuit breaker (MCB) | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
