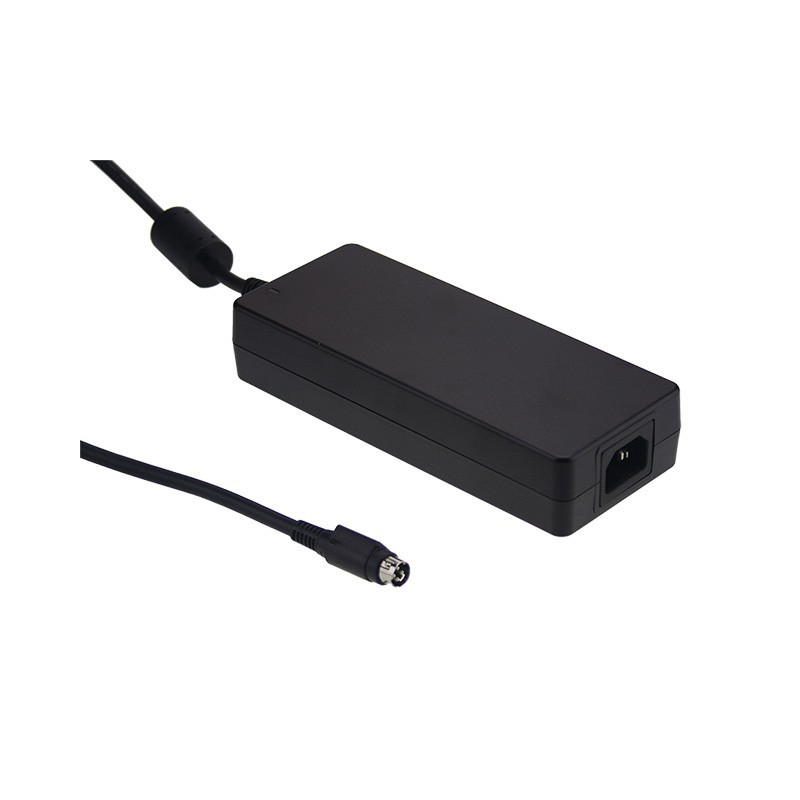

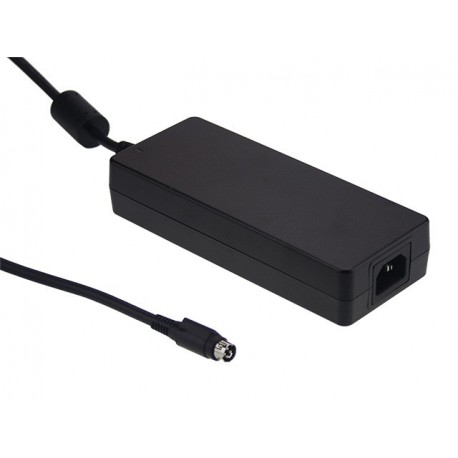

GSM160A48-R7B MEANWELL AC-DC Medical desktop adaptor with Active PFC, Input 3 pin IEC320-C14 socket, Output ..
GSM160A48-R7B
MEANWELL
AC-DC Medical desktop adaptor with Active PFC, Input 3 pin IEC320-C14 socket, Output 48VDC / 3.34A with DIN 4 pin plug with lock, EN60601 2xMOPP Class I
ADAPTERS > GSM
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | GSM160A48-R7B |
|---|---|
| Long Description | Source Switched type desktop adapter with PFC function. Fuentrecertified for medical applications2x MOPP (patient protection). Feeder for connection to a wall outlet. Range of universal input80-264vac47-63Hz. Output voltage48vdc. Output intensity3.34 A. Range of output current 0-3,34 according To the demand load. Power:160W. Efficiency typical:94%. Factor corrector, power>0,93to 230vac at full load. LED Indicator of correct operation. Class l non-grounded. Consumption without load<0,15 W. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:175 x 72 x 35. 3 years of warranty. Manufacturer: MEAN WELL. Series, GSM-A, are the sources switched in format desktop with input connector europeanIEC320-C14and output connector R7B DIN 4p(Level Vl). The series GSM160 have a low consumption, no-load of only 0.15 W and meet the latest requirements of energy efficiency.
|
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Desktop |
| Subformato | Encapsulated |
| Applications | Industrial, Medical, Telecommunications |
| Series | GSM160A |
| Warranty (Years) | 3,00 |
| Height (mm) | Thirty five |
| Width (mm) | Seventy two |
| Long/Background | One hundred seventy five |
| Type of Entry CA | Single-phase |
| AC input Min | 80,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | IEC 320-C14 |
| Output voltage | 48,00 |
| Power (W) | 160,00 |
| Peak Power (W) | One hundred sixty |
| Output connector | R7B DIN 4p |
| Isolation (V) | 4.000,00 |
| Approvals | CE, UL |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LED MEANWELL EN.pdf | 5 Mbytes |
|
| PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 7 Mbytes |
|
