MDI40A 537
MDI40A360Z5/30P6XXPR0,3+M12.162
MICRO DETECTORS
1

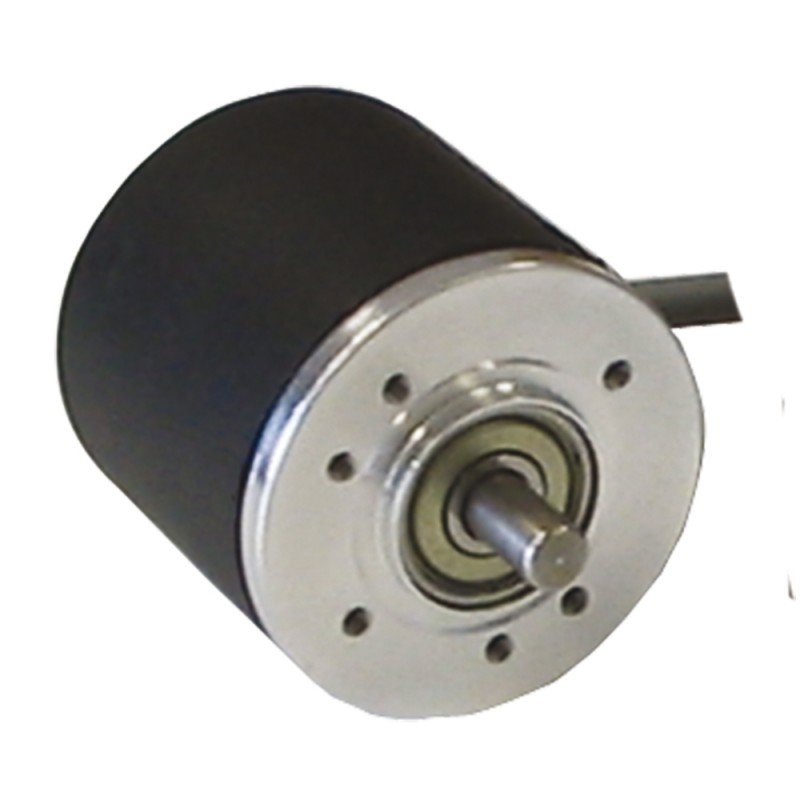

Incremental Encoder Solid Shaft 40mm, Flange A, Resolution 360 ppm, With Zero Pulse, Push-Pull, IP54,M12 Connector Exit
MDI40A360Z5/30P6XXPR0,3+M12.162 - Solid Shaft 40mm, Flange A, Res. 360 ppm, With Zero Pulse, Push-Pull, IP54,M12 Connector Exit
Sensors
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Resolution | da 100 a 2500 ppr | |
counting direction | A leads B clockwise (shaft view) |
max output frequency | 220 kHz |
Output type | push-pull / line driver |
Operating Voltage | 5/30 = 4,5 ... 30 V DC (reverse polarity protection) | |
No-Load supply current | 800 mW | |
max load current | 20 mA / channel |
Weight | 100 g (3,52 oz) | |
Housing Material | PA66 glass fiber reinforced | |
Operating temperature | -25° ... +85°C (-13° ... +185°F) | |
Storage temperature | -25° ... +70°C (-13° ... +158°F) | |
max shaft load | 5 N axial / radial | |
Shaft diameter | ø 6 mm | |
max rotation speed | 3000 rpm (IP 66) 6000 rpm (IP 54) | |
moment of inertia | 0,1 x 10-6 kgm2 | |
starting torque at 20°c | < 0,01 Nm (IP 54) < 0,05 Nm (IP 66) | |
shaft material | 1.4305 / AISI 303 stainless steel | |
bearings | 2 ball bearings | |
bearings life | 109 revolutions |
EMC compatibility | IEC 61000-6-2 IEC 61000-6-4 | |
Shocks and vibrations | 10 G, 10 ... 2000 Hz (IEC 60068-2-6) | |
Degree of protection | X = IP 54 (IEC 60529) S = IP 66 (IEC 60529) |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes | |
Download general catalog |
