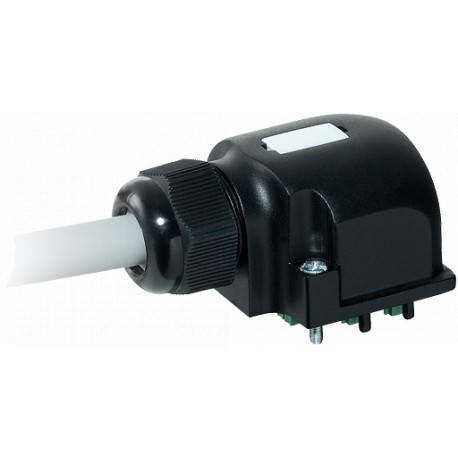

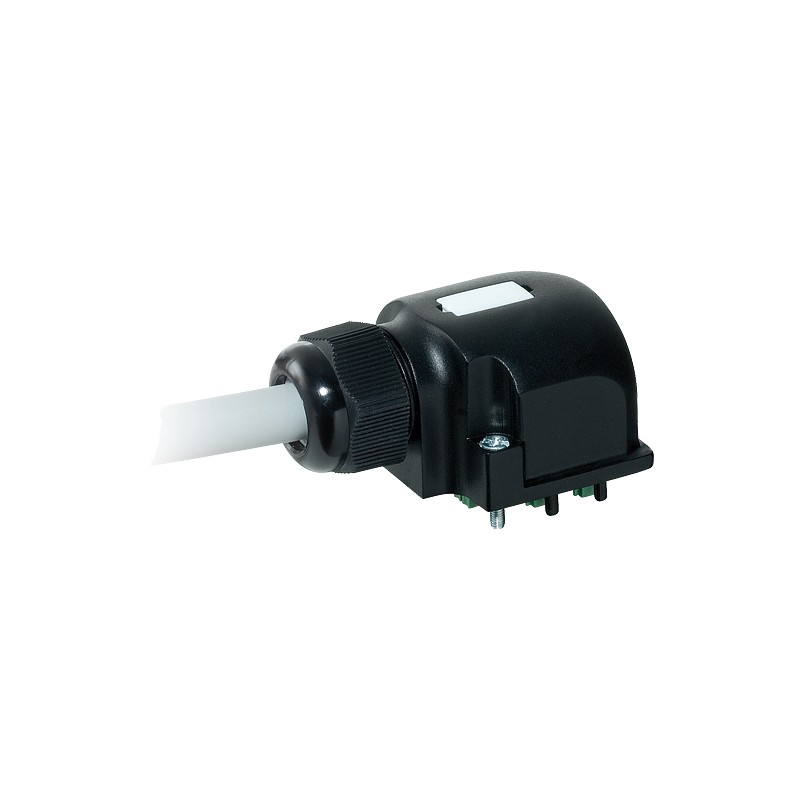

8000-84559-4482000 MURRELEKTRONIK Cap for Distribution Box M12 4-way 5-pole, no potential separation, 20m PU..
8000-84559-4482000
MURRELEKTRONIK
Cap for Distribution Box M12 4-way 5-pole, no potential separation, 20m PUR, 8x0,5+3x1,0
CAP FOR D-BOX M124-WAY 5-POLE No pot.-sep.20m PUR, 8x0,5+3x1,0
CAP FOR D-BOX M124-WAY 5-POLE
Passive distribution systems
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
20.0 m
| Housing | Plastic, flame retardant |
|---|---|
| Total current | max. 8 A |
| Temperature range | -20...+80 °C, depending on cable quality |
|---|
| Cable number | 448 |
|---|---|
| No./diameter of wires | 8× 0.5 + 3× 1.0 mm² |
| Wire isolation | TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, br, bl, gnye) |
| C-track properties | 5 Mio. |
| Jacket Color | gray |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 9.1 mm ±5% |
| Bend radius (moving) | 10× outer Ø |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -40...+90 °C |
| Material (wire) | Cu wire, bare |
| Construction (core) | 64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6) |
| Bend radius (fixed) | 5× outer Ø |
| Approval (cable) | UL (AWM-Style 20233), CSA |
| country of origin | CZ |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879055499 |
| eClass | 27143423 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 8000-84559-4482000 8000-84559-4482000 EN_8000-84559-4482000.pdf | 214 Kbytes |
|
| Download general catalog |
|
