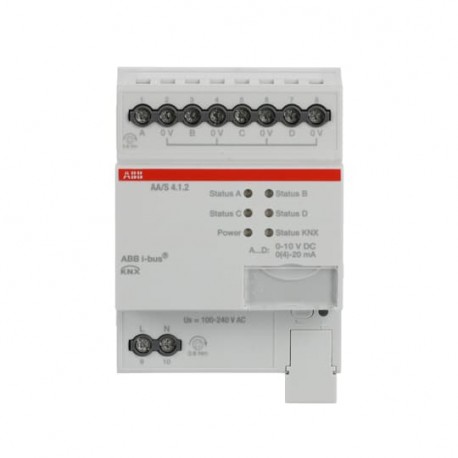

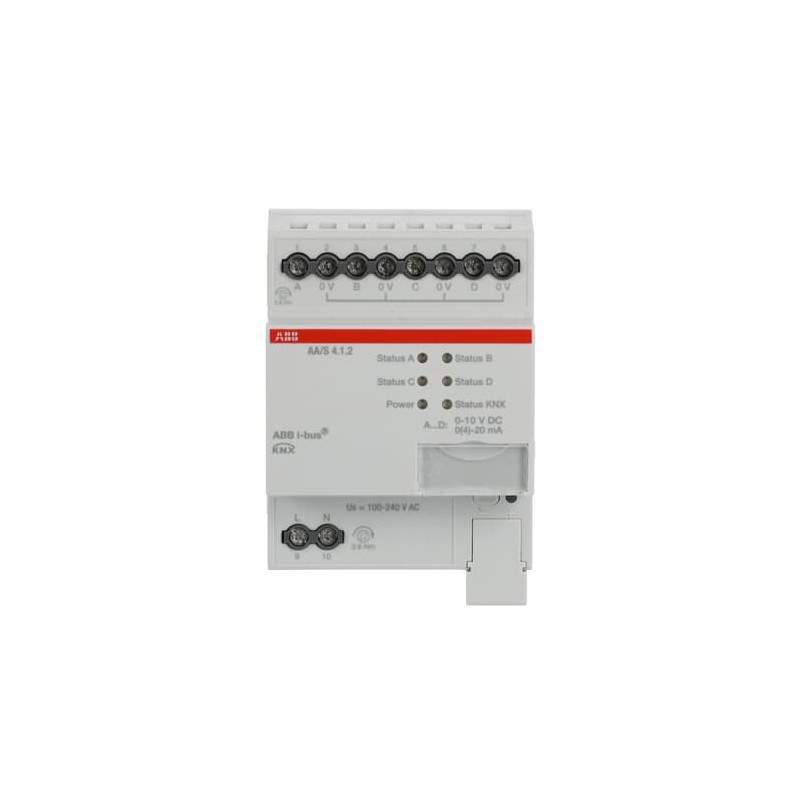

2CDG110202R0011 AA/S 4.1.2 NIESSEN Module-Actuator Analog, 4-channel, MDRC
2CDG110202R0011
AA/S 4.1.2
NIESSEN
Module-Actuator Analog, 4-channel, MDRC
Mód. Analog Actuator, 4 channels, MDRC
The Analogue Actuator converts KNX telegrams in voltage (0...10V) or current (0…24mA) signals. These analogue output signals are used to influence regulatory processes. For example, devices for heating, air conditioning or ventilation applications can be adjusted in their operation depending on the information, which are transmitted via the bus system. This Analogue Actuator is a 4-fold DIN rail device. The ABB i-bus Tool is supported for advanced diagnosis and improved commissioning.
Installation bus systems > Analogue actuator for bus system
KNX-EIB
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- AA/S 4.1.2
- Product ID:
- 2CDG110202R0011
- EAN:
- 4016779962377
- Catalog Description:
- AA/S4.1.2 Analogue Actuator, 4-fold, MDRC
- Long Description:
- The Analogue Actuator converts KNX telegrams in voltage (0...10V) or current (0…24mA) signals. These analogue output signals are used to influence regulatory processes. For example, devices for heating, air conditioning or ventilation applications can be adjusted in their operation depending on the information, which are transmitted via the bus system. This Analogue Actuator is a 4-fold DIN rail device. The ABB i-bus Tool is supported for advanced diagnosis and improved commissioning.
Installation
- Instructions and Manuals:
- 2CDG941177P0003
Technical
- Data Sheet, Technical Information:
- 2CDC505168D0201
- Voltage Range:
- 0 ... 10 V DC
- Auxiliary Voltage AC/DC:
- 110 ... 240 V AC
- Output Voltage (Uout):
- 0 ... 10 V DC
- Maximum Switching Current:
- 0.02 A
- Power Loss:
- 0.8 W
- Number of Outputs:
- 4
- Compatible Bus Systems:
- KNX (TP)
- Product Range:
- KNX
- Mounting Type:
- DIN-Rail
- Manual Operation:
- No
- Model Number:
- Base module
- Color:
- light grey
- Number of Batteries:
- 0
- Application Function:
- Electrical Load and Light Control
Environmental
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU
- RoHS Information:
- 2CDK505167D2701
- REACH Declaration:
- 9AKK108468A9644
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Width in Number of Modular Spacings:
- 4
- Product Net Width:
- 72mm
- Product Net Height:
- 90mm
- Product Net Depth / Length:
- 64.5mm
- Product Net Weight:
- 0.165kg
- Built-In Depth (t2):
- 64.5 mm
- Dimension Diagram:
- 2CDC072033F0015
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CDK505167D2701
Classifications
- ETIM 8:
- EC001096 - Analogue actuator for bus system
- ETIM 9:
- EC001096 - Analogue actuator for bus system
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 8537 10 91
- eClass:
- V11.0 : 27143109
- Object Classification Code:
- A
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CDG110202R0011 AA/S 4.1.2 EN_2CDG110202R0011.pdf | 297 Kbytes |
 |
