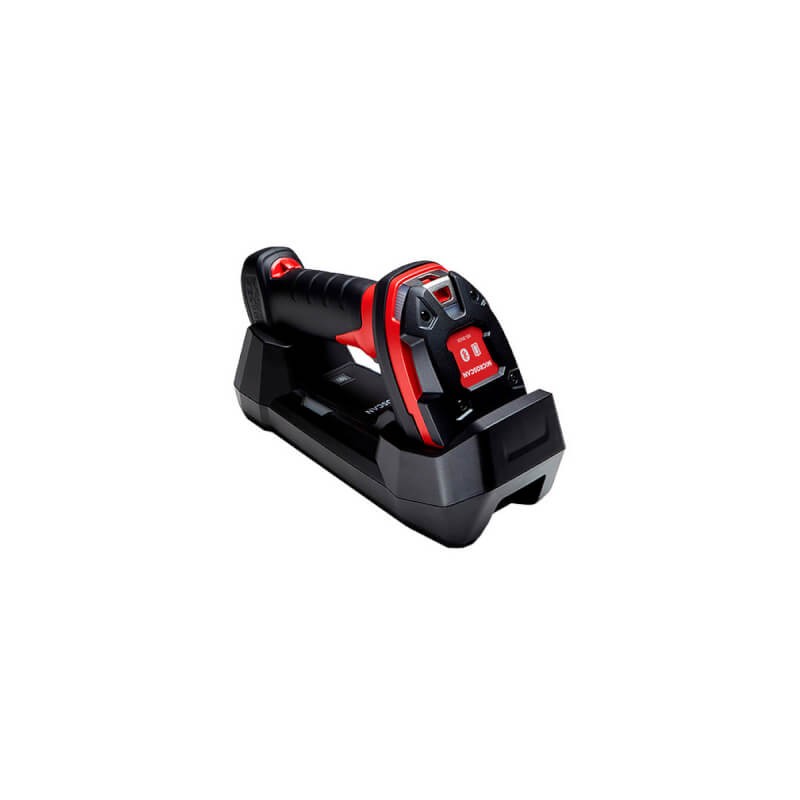

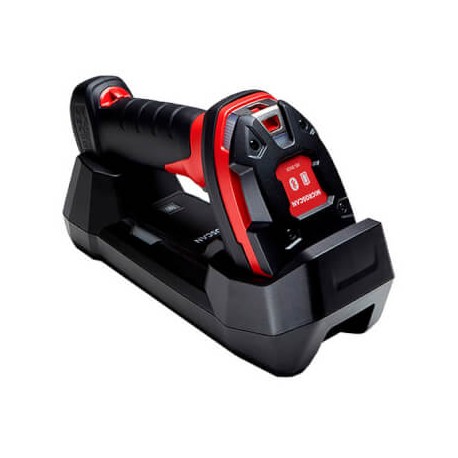

HDS-3678-0001 AA052769A 682207 OMRON Handheld DPM Scanner, Cordless, HDS-3678
HDS-3678-0001
AA052769A
HDS36780001
OMRON
Scanner DPM the laptop, without cable, HDS-3678
Handheld DPM Scanner, Cordless, HDS-3678
Industrial barcode readers > BarCode Readers and Smart Cameras
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲ Features
HS-360X “Ultra-Rugged” Direct Part Mark Handheld
The HS-360X Ultra-Rugged Handheld Scanner is an industrial direct part mark (DPM) reader, purpose built from the ground up to set new standards for durability and performance.
- The HS-360X includes X-Mode decoding algorithms to consistently read damaged, distorted or otherwise challenging directly marked codes at high decode rates.
- With best-in-class out-of-box performance most applications require no setup.
- The WebLinkPC user interface makes setup for more difficult applications intuitive and easy.
- The IP65-sealed charging station transmits and receives data over Bluetooth up to 100 m, and the cordless scanner achieves more than 50,000 scans per full charge and includes an on board battery gauge.
- In addition to 2.45 m drops, the housing of the scanner tolerates many industrial fluids and chemicals, such as motor oil and brake fluid.
Ordering information
Scanner
| Description | Order code |
|---|---|
| Handheld DPM Scanner, corded, HDS-3608 2 WiredCordset Required | HDS-3608-0001 |
| Handheld DPM Scanner, cordless, HDS-3678 2 Cradleand Cordset Required | HDS-3678-0001 |
Accessories
WiredCordsets
| Description | Order code |
|---|---|
| Cable, USB, shielded, 2 m, HDS-3600family | 12-9000946-01 |
| Cable, USB, shielded, 4.6 m, HDS-3600family | 12-9000947-01 |
| Cablee, RS-232, DB9 Socket, 2 m, Straight,HS-360X ***98-9000181-01 and A/C Power Cord Required *** | 12-9000953-01 |
Wireless Accessoriesand Cordsets
| Description | Order code |
|---|---|
| Cradle/Charger, HDS-3678 | 12-9000937-01 |
| Cable, USB, shielded, 2 m, HDS-3600family | 12-9000946-01 |
| Cable, USB, shielded, 4.6 m, HDS-3600family | 12-9000947-01 |
| Cable, USB, shielded, 2 m, EXT 12 V,HDS-3600 family 2 Power Supply Required | 12-9000942-01 |
| Cable, USB, shielded, 4.6 m, EXT 12 V,HDS-3600 family 2 Power Supply Required | 12-9000943-01 |
| Cable, RS-232, DB9 Socket, 2 m, Straight,HS-360X ***98-9000181-01 and A/C Power Cord Required *** | 12-9000953-01 |
| Kit, Power Supply for Cradle/Charger, HDS-3678 2 A/C Power Cord Required | 98-9000181-01 |
| 4 slot, Battery Charger, HDS-3678 2 Power Supply Required | 98-9000185-01 |
| Kit, Power Supply for Battery Charger, 4 slot,HDS-3678 2 A/C Power Cord Required | 98-9000182-01 |
| Battery, Spare, HDS-3678 | 12-9000939-01 |
Power Cord by Region
| Description | Order code |
|---|---|
| AC Power Cord, 2.5 m, EU, C13 Connector | 12-9000960-01 |
| AC Power Cord, 2.5 m, UK, C13 Connector | 12-9000961-01 |
HS-360X Stand
| Description | Order code |
|---|---|
| HS-360X Stand | 98-9000186-01 |
Specifications
| Item | Wired (HDS-3608-0001) | Wireless (HDS-3678-0001) | |
|---|---|---|---|
| Mechanical | Dimensions (H×W×D) | 185 × 77 × 132 mm (7.3 × 3 × 5.2 in.) | 185 × 77 × 143 mm (7.3 × 3 × 5.6 in.) |
| Weight | 304 g (10.72 oz.) | 402 g (14.18 oz.) | |
| Symbologies | 1D | Code 39, Code 128, Code 93, Codabar/NW7,Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar,Base 32 (Italian Pharma) | |
| 2D | PDF417, Micro PDF417, CompositeCodes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, ChineseSensible (Han Xin), Postal Codes, Dotcode | ||
| Communication protocols | Imager | USB 2.0 (HID keyboard, USB Virtual COM), RS-232 | Bluetooth® (Class 1, 4.0) |
| Charging Station | – | USB 2.0 (HID keyboard, USB Virtual COM), RS-232 | |
| Light Collection options | Sensor | SXGA 1.2MP | |
| Sensor Array | 1280 × 960 pixels | ||
| Battery | Capacity | – | 3100 mAH Li-ion |
| Scans | – | Up to 50,000 per charge | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON EN.pdf | 24 Mbytes |
|
| HDS-3678-0001 682207 AA052769A hs360x_datasheet_en.pdf | 245 Kbytes |
|
| HDS-3678-0001 682207 AA052769A hs_360x_getting_started_guide_en.pdf | 2 Mbytes |
|
