V320-F300M12M-NNX
V3205068E
V320F300M12MNNX.1
OMRON
1

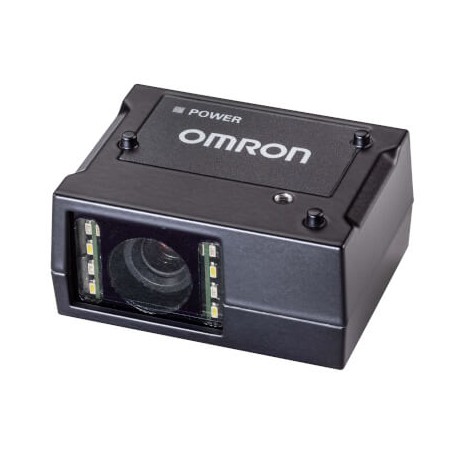

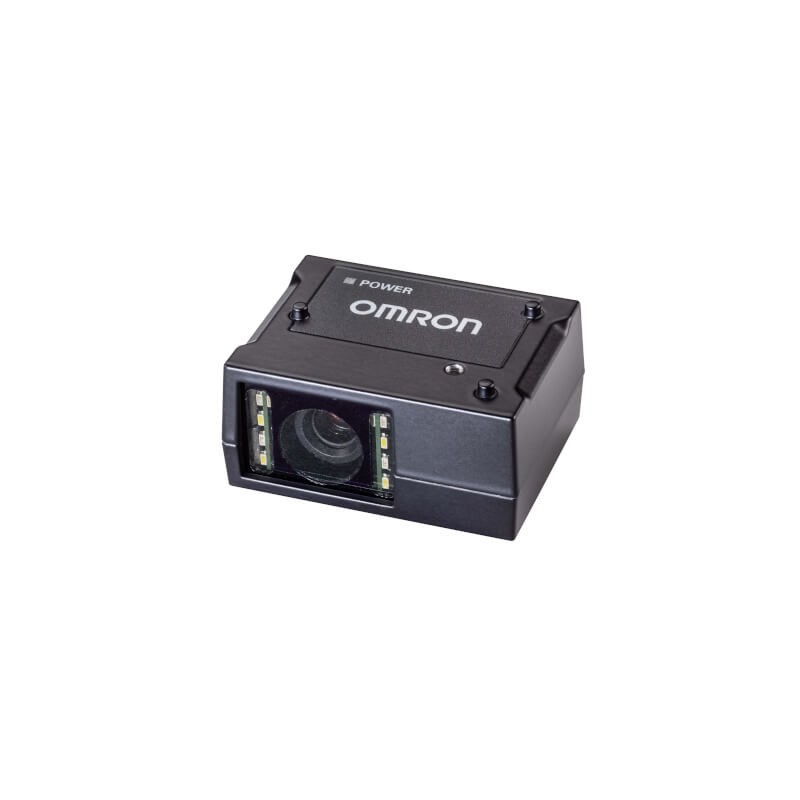

V320 code reader, 1.2 MP monochrome, medium view, 300mm fixed focus, no outside light, X mode decoder, RS-232, Ethernet over USB, IP40
V320 Code reader, 1.2 MP monochrome, Medium view, Fixed focus 300 mm, No outer light, X-Mode decoder, RS-232, Ethernet via USB, IP40
Industrial barcode readers > BarCode Readers and Smart Cameras
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Number of pixels | 1.2 MP |
Camera type | Monochrome |
Autofocus | |
Focus distance | 300-300 mm |
Field of view (width) | 196-196 mm |
Decoder type | X-Mode (advanced 1D+2D+DPM) |
Frame rate | 42 fps |
Illumination | Inner LEDs only |
Communication port(s) | Ethernet TCP/IP, Serial RS-232C, USB |
Image width | 1280 pixels |
Image height | 960 pixels |
Shutter type | Global |
Degree of protection (IP) | IP40 |
Height | 24.1 mm |
Width | 51.5 mm |
Depth | 38.8 mm |
Weight | 0 g |
V320-W8-3M | V/F 320-F Cable, RJ50 to flying lead, straight, 3 m | ||
V320-WRX-2M | V/F 320-F Cable, RJ50 to RS232 and external power, straight, 2 m | ||
V330-AF1 | V/F 3x0-F Diffuser Kit, Peel and Stick Accessory, Exterior to unit | ||
V330-AF2 | V/F 3x0-F Polarizer Kit, Peel and Stick Accessory, Exterior to unit |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG OMRON EN.pdf | 24 Mbytes |
![]() |
V320-F300M12M-NNX 697512 V3205068E DE_V320-F064W03M-NNP.pdf | 2 Mbytes |
![]() |
