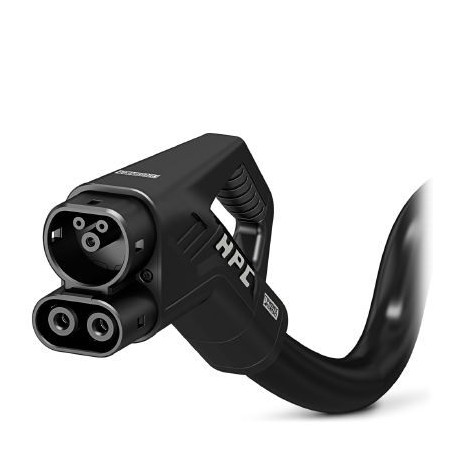

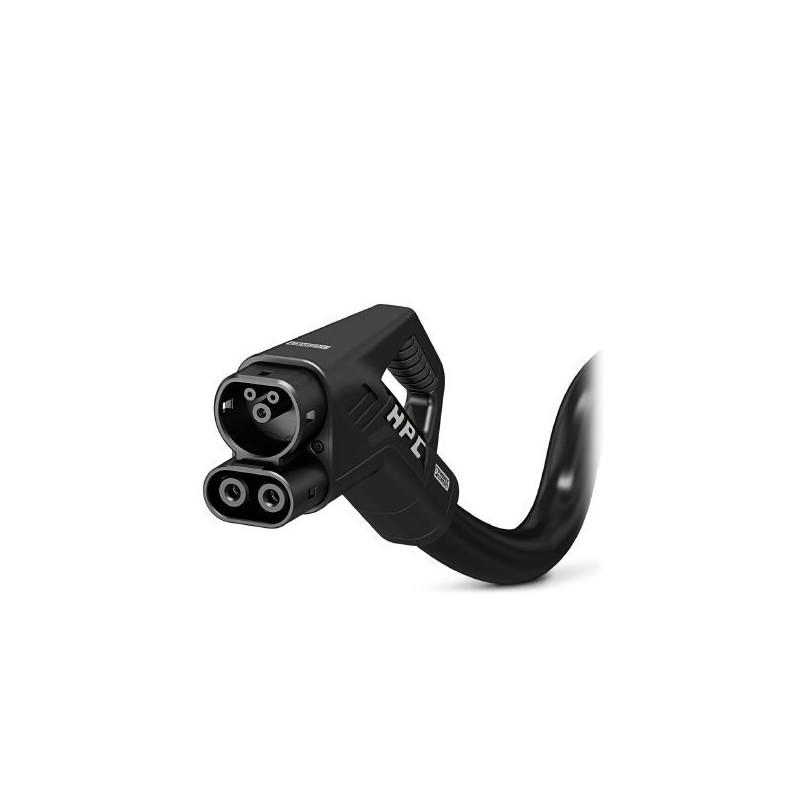

EV-T2HPCC-DC500A-5,0M50ECBK11 1085638 PHOENIX CONTACT DC charging cable, HPC-DC charging cable with cooled v..
EV-T2HPCC-DC500A-5,0M50ECBK11
1085638
PHOENIX_CONTACT
DC charging cable, HPC-DC charging cable with cooled vehicle connector, cooled cable, Without panel feed-through, CCS type 2, Combined Charging System, IEC 62196-3-1, 500 A / 1000 V (DC), design line HPC, cable: 5 m, black, straight, mating face: black, handle area: black
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1085638 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 17 (C-7-2019) |
| GTIN | 4055626874043 |
| Weight per Piece (excluding packing) | 4.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Drawings
Product definition
| Product type | HPC-DC charging cable with cooled vehicle connector, cooled cable |
|---|---|
| Type | Without panel feed-through |
| Standards/regulations | IEC 62196-3-1 |
| Charging standard | CCS type 2 |
| Combined Charging System | |
| High Power Charging | |
| Charging mode | Mode 4 |
| Cooling technology | Water-glycol mixture as coolant in the vehicle connector and in the cable |
Dimensions
| Vehicle connector width | 72.00 mm |
|---|---|
| Vehicle connector height | 181.20 mm |
| Vehicle connector depth | 285.20 mm |
| Conductor length | 5 m |
| Stripping length | 140 mm ±10 mm |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 40 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 60 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP54 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| IP20 (when not plugged in, the required IP24 degree of protection must be ensured by other means, e.g., by a holder, see accessories) |
Electrical properties
| Maximum charging power | 500 kW |
|---|---|
| Number of power contacts | 3 (PE, DC+, DC-) |
| Rated current of power contacts | 500 A |
| Rated voltage for power contacts | 1000 V DC |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation with modulated Powerline communication according to ISO/IEC 15118 / DIN SPEC 70121 |
| Communication interfaces | CAN bus for reading the temperature and leakage sensor data |
| Digital output for determining the functional status of the vehicle connector | |
| Note on the connection method | cannot be disconnected |
| Resistor coding | 1500 Ω (between PE and PP) |
| Temperature monitoring | 2x NTC (replaceable, front DC contacts) |
| 2x NTC (DC power wires inside) |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Design
| Design line | HPC |
|---|---|
| Mating face color | black |
| Color handle area | black |
| Label | 8.9 mm x 28.9 mm (customer logo on request) |
Material
| Housing material | Plastic |
|---|---|
| Material handle area | Soft plastic |
| Material mating face | Plastic |
| Flammability rating | V0 |
| Material surface of contacts | Ag |
Cable
| Cable structure | 5 x 25 mm² + 7 x 0.75 mm² |
|---|---|
| Wiring standards/regulations | DIN EN 50620 |
| Wiring class | Class 6 |
| External cable diameter | 35.7 mm ±0.4 mm |
| Type of conductor | straight |
| Cable resistance | ≤ 0.00078 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Outer sheath, material | EVM-1 in accordance with EN 50620 |
| External sheath, color | black |
| Minimum bending radius | 535.5 mm (15 x diameter) |
| Coolant | 50 % water, 50 % glycol (recommended: Glysofor N) |
| Cooling hose diameter | 1x 11.5 mm Supply hose |
| 2x 8.8 mm Return hoses |
Requirements for a cooling unit
| Cooling capacity | 600 W (Cable length: 3 m) |
|---|---|
| 800 W (Cable length: 4 m) | |
| 900 W (Cable length: 5 m) | |
| 1050 W (Cable length: 6 m) | |
| Flow rate | 2 l/min |
| Operating pressure | 1.00 bar ... 2.00 bar |
| Flow temperature | 10 °C |
| Maximum permissible pressure | 4.00 bar |
| Relief pressure | 2.00 bar |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 10; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
