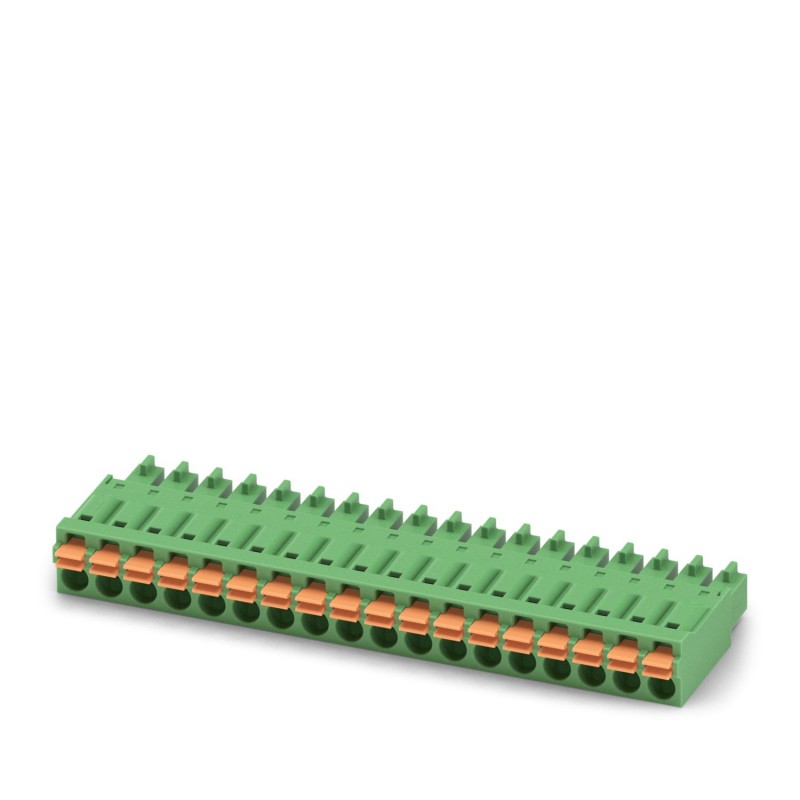

FMC 1,5/18-ST-3,81 1748134 PHOENIX CONTACT Part plug,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º ..
FMC 1,5/18-ST-3,81
1748134
PHOENIX_CONTACT
50
Part plug,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º poles: 18,Pitch: 3,81 mm,the Technique of connection: spring clamp push-in,Color: green,contact Surface: Tin
Connectors > Cable connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Trade data
| Order Code | One million seven hundred forty eight thousand one hundred thirty four |
|---|---|
| Packaging unit | 50 pcs |
| Minimum order quantity | 50 pcs |
| Note | Manufacturing to the order (no recovery) |
| GTIN | Four trillion forty six billion three hundred fifty six million three hundred eleven thousand one hundred seventy five |
| Weight per piece (excluding packing) | The 0.010 KGM |
| Number of the customs tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | (Germany) |
General
| Family articles | FMC 1,5/..-ST |
|---|---|
| Number of poles | Eighteen |
| Type of connection | Tension clamp connection Push-in |
| Group of insulation | I |
| Impulse voltage assigned (III/3) | 2.5 kV |
| Impulse voltage assigned (III/2) | 2.5 kV |
| Impulse voltage assigned to (II/2) | 2.5 kV |
| Reference voltage (III/3) | 160 V |
| Rated voltage (III/2) | 160 V |
| Rated voltage (II/2) | 320 V |
| Connection according to standard | EN-VDE |
| Rated current IN | Eight |
| Nominal Section | 1.5 mm2 |
| Maximum charge current | Eight |
| Insulating material | PA |
| Flammability class according to UL 94 | V0 |
| Template | A1 |
| Length stripping tool | 10 mm |
Characteristics of connection
| Wire cross-Section, rigid min. | 0,2 mm2 |
|---|---|
| Wire cross-Section rigid max. | 1.5 mm2 |
| Wire cross-Section flexible min. | 0,2 mm2 |
| Wire cross-Section flexible max. | 1.5 mm2 |
| Wire cross-Section flexible with wire-end sleeve without inlet cone insulation max. | 0.25 mm2 |
| 1.5 mm2 | |
| Wire cross-Section flexible with ferrule and inlet cone insulation min. | 0.25 mm2 |
| Wire cross-Section flexible with ferrule and inlet cone insulation max. | 1 mm2 |
| Cross Section of the conductor AWG min. | Twenty four |
| Cross Section of wire AWG max. | Sixteen |
| AWG min. according to UL/CUL | Twenty four |
| AWG max. according to UL/CUL | Sixteen |
Characteristics pertaining to tips
| Crimping tool recommended | 1212034 CRIMPFOX 6 |
|---|---|
| Bits without a collar insulation according to DIN 46228-1 | Section : 0.25 mm2; Length: 5 mm ... 7 mm |
| Section : 0.34 mm2; Length: 7 mm | |
| Section : 0.5 mm2; Length: 8 mm ... 10 mm | |
| Section : 0.75 mm2; Length: 8 mm ... 10 mm | |
| Section : 1 mm2; Length: 8 mm ... 10 mm | |
| Section : 1.5 mm2; Length: 10 mm |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| ASS | |
| Flammability class according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Period of intended use : unlimited = EFUP-e |
|---|---|
| No hazardous substances exceeding the threshold values ; |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundredeCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundredeCl@ss 7.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 8.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 9.0Twenty seven million four hundred forty thousand three hundred nine
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred tenUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
