FR 1,27/ 16-FWL
1378544
PHOENIX_CONTACT
132

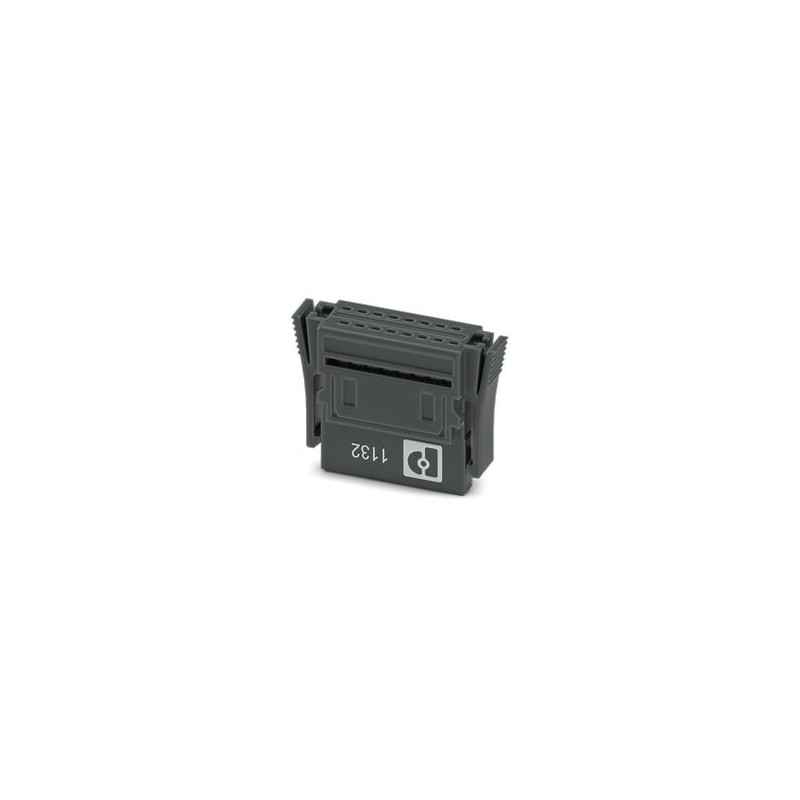

IDC plug plug, rated current: 1.4 A, test voltage: 500 VAC, number of poles: 16, pitch: 1.27 mm, color: black, surface contacts: Gold, contact type: Female
IDC female connector, nominal current: 1.4 A, Test voltage: 500 V AC, number of positions: 16, pitch: 1.27 mm, color: black, contact surface: Gold, contact connection type: Socket
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Note regarding documentation | Current documents such as 3D models, products family drawings, data sheets or packaging drawings are available in the Download Center. |
Product type | IDC female connector |
Product family | FR 1,27/..-FWL |
Number of positions | 16 |
Pitch | 1.27 mm |
Number of rows | 2 |
Nominal current IN | 1.4 A IEC 60512-5-2:2002-02 (at 20°C 50-pos.) |
Degree of pollution | 3 |
Contact resistance | 10 mΩ |
Test voltage | 500 V AC IEC 60512-4-1:2003 |
Conductor connection | |
Connection method | Displacement connection |
Conductor cross section AWG | 30 |
Interlock | |
Locking type | Snap-in locking |
Mounting flange | Self-locking flange |
Pitch | 1.27 mm |
Width [w] | 16.51 mm |
Height [h] | 14.55 mm |
Length [l] | 5 mm |
Application | |
Contact cover | 0.9 mm |
Center offset | ± 0.7 mm in longitudinal and transverse direction |
Angular tolerance | ± 5 ° in longitudinal and transverse direction |
Material data - contact | |
Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
Contact material | Cu alloy |
Surface characteristics | Selective coating |
Metal surface contact area (top layer) | Gold (Au) |
Metal surface contact area (middle layer) | Nickel (Ni) |
Metal surface soldering area (top layer) | Tin (Sn) |
Metal surface soldering area (middle layer) | Nickel (Ni) |
Material data - housing | |
Color (Housing) | black (9005) |
Insulating material | LCP |
Insulating material group | IIIb |
CTI according to IEC 60112 | 150 |
Flammability rating according to UL 94 | V0 |
Connection 1 | |
Insulating material | LCP |
CTI according to IEC 60112 | 150 |
Thermal test | Test group C | |
Specification | IEC 60512-5-2:2002-02 |
Insulation resistance | |
Specification | IEC 60512-3-1:2002-02 |
Insulation resistance, neighboring positions | ≥ 5 GΩ |
Air clearances and creepage distances | | |
Insulating material group | IIIb |
Minimum value for clearance and creepage distance | 0.32 mm |
Vibration test | |
Specification | IEC 60068-2-6:2007-12 |
Frequency | 10 - 2000 - 10 Hz |
Sweep speed | 1 octave/min |
Amplitude | 1.5 mm (10 Hz ... 58 Hz) |
Sweep speed | 200 m/s² (58 Hz ... 2000 Hz) |
Test duration per axis | 1 h |
Durability test | |
Specification | IEC 60512-9-1:2010-03 (following) |
Contact resistance R1 | 10 mΩ |
Contact resistance R2 | 12 mΩ |
Insertion/withdrawal cycles | 500 |
Insulation resistance, neighboring positions | ≥ 5 GΩ |
Shocks | |
Specification | IEC 60068-2-27:2008-02 |
Pulse shape | Semi-sinusoidal |
Acceleration | 490 m/s² |
Shock duration | 11 ms |
Test directions | X-, Y- and Z-axis (pos. and neg.) |
Ambient conditions | |
Ambient temperature (operation) | -55 °C ... 125 °C |
Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Relative humidity (storage/transport) | 30 % ... 70 % |
Ambient temperature (assembly) | -5 °C ... 100 °C |
Type of packaging | Tray |
Outer packaging type | Carton |
