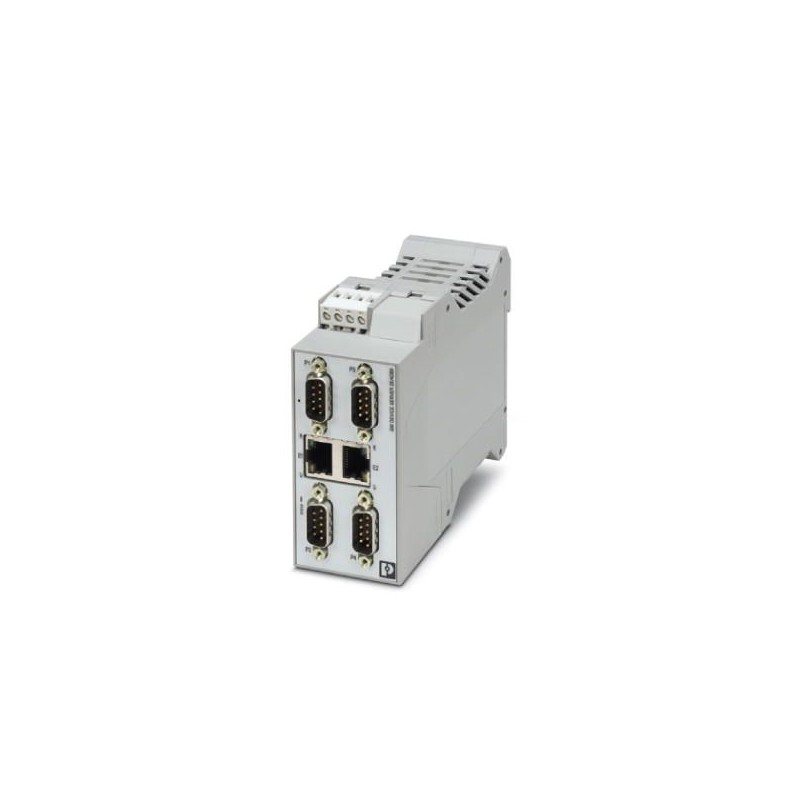

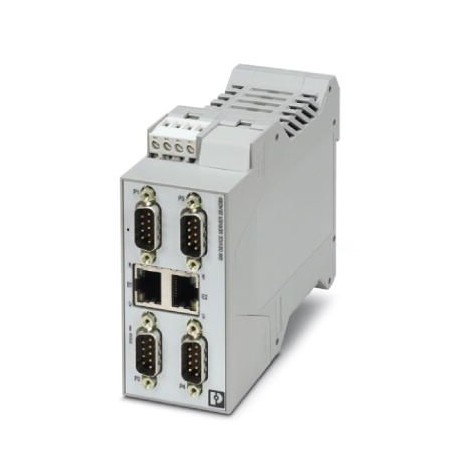

GW PN/ASCII 2E/4DB9
1020882
PHOENIX_CONTACT
1
Interface converters
Data and telecommunication > Interface converter
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1020882 |
---|---|
Packing unit | 1 pc |
GTIN | 4055626512013 |
Weight per Piece (excluding packing) | 245.000 g |
Custom tariff number | 85176200 |
Country of origin | US (United States) |
Ambient temperature (operation) | -40 °C ... 70 °C |
---|---|
Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Altitude | < 2000 m |
Degree of protection | IP20 |
Noise immunity | EN 61000-6-2:2005 |
Electrical isolation | IEC UL 61010-1 (VCC // Ethernet) |
---|---|
Test voltage data interface/data interface | 1.5 kVrms(50 Hz, 1 min.) |
Test voltage data interface/power supply | 1.5 kVrms |
1.5 kVrms(50 Hz, 1 min.) | |
Standards/regulations | EN 55022, EN 55024 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Noise emission | EN 61000-6-4 |
Net weight | 245 g |
Housing material | PA 6.6 |
Color | gray |
MTBF | 63.5 Years (Telcordia standard, 25°C temperature, 50% stress, Environmental Factor = 1.0) |
42.3 Years (Telcordia standard, 40°C temperature, 50% stress, Environmental Factor = 1.5) | |
Conformance | CE-compliant |
UL, USA | UL 61010-1 |
UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D T4A |
Supply voltage range | 10.8 V DC ... 30 V DC (via pluggable COMBICON screw terminal block) |
---|---|
Max. current consumption | 120 mA (24 V DC) |
Typical current consumption | 110 mA (24 V DC) |
Conductor cross section flexible max. | 2.50 mm² |
Conductor cross section flexible min. | 0.20 mm² |
Conductor cross section AWG max. | 12 |
Conductor cross section AWG min. | 24 |
Interface 1 | PROFINET |
---|---|
Interface | Ethernet |
No. of ports | 2 |
Connection method | RJ45 socket, shielded |
Transmission length | ≤ 100 m (shielded twisted pair) |
Protocols supported | PROFINET, ASCII |
Auxiliary protocols | ARP, DHCP (Client), PING |
Serial transmission speed | 10/100 Mbps, auto negotiation |
Interface | RS-232 |
Number of connections | 4 |
Connection method | D-SUB 9 plug |
File format/coding | 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity |
Transmission length | 15 m |
Pin assignment | |
Data flow control/protocols | Software handshake, Xon/Xoff or hardware handshake RTS/CTS |
Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps |
Interface | RS-422 |
Number of connections | 4 |
Connection method | D-SUB 9 plug |
File format/coding | 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity |
Transmission length | ≤ 1200 m |
Termination resistor | 120 Ω (configurable) |
Pin assignment | |
Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps |
Interface | RS-485 |
Number of connections | 4 |
Connection method | D-SUB 9 plug |
File format/coding | 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity |
Termination resistor | 120 Ω (configurable) |
Pin assignment | |
Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
---|---|
Type of test | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
Shock in acc. with EN 60068-2-27/IEC 60068-2-27 | |
Noise emission | EN 61000-6-4 |
Noise immunity | EN 61000-6-2:2005 |
Standards/regulations | EN 55022, EN 55024 |
Conformance | CE-compliant |
UL, USA | UL 61010-1 |
UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D T4A |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE AUTOMATION PHOENIX EN.pdf | 35 Mbytes |
![]() |
