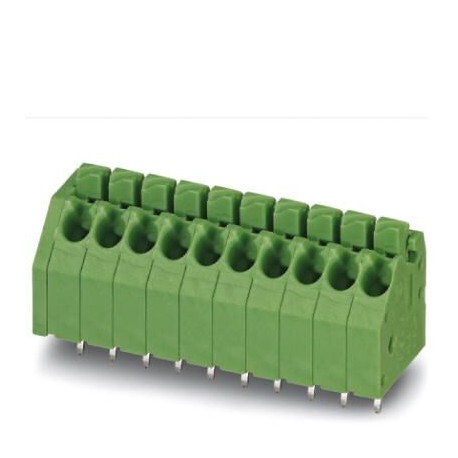

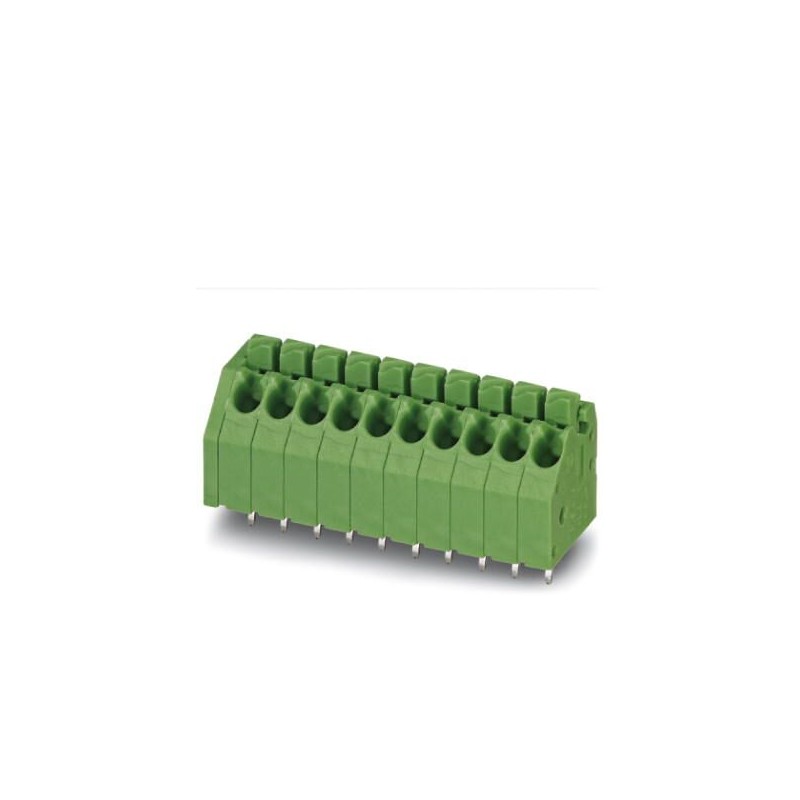

PTSA 1,5/ 6-3,5-F GY BDRA2-RC4 1872715 PHOENIX CONTACT PCB terminal block, nominal current: 8 A, nom. voltag.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PTSA 1,5/ 6-3,5-F GY BDRA2-RC4 1872715 PHOENIX CONTACT PCB terminal block, nominal current: 8 A, nom. voltag..

PTSA 1,5/ 6-3,5-F GY BDRA2-RC4

1872715

PHOENIX_CONTACT

160

PCB terminal block, nominal current: 8 A, nom. voltage: 250 V, pitch: 3.5 mm, number of positions: 6, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: gray. Soldering legs in front area, one-rowed

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


PCB terminal block, nominal current: 8 A, nom. voltage: 250 V, pitch: 3.5 mm, number of positions: 6, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: gray. Soldering legs in front area, one-rowed

Key Commercial Data

Orderkey1872715
Packing unit1
GTIN4055626164083
Custom tariff number85369010

Dimensions

Length [ l ]12 mm
Pitch3.5 mm
Dimension a17.5 mm
Width [ w ]22.5 mm
Height13.1 mm
Height [ h ]16.7 mm
Solder pin [P]3.6 mm
Pin spacing3.5 mm
Hole diameter1 mm

General

Range of articlesPTSA 1,5
Insulating material groupI
Rated voltage (III/2)250 V
Nominal current IN8 A
Nominal cross section1.5 mm²
Solder pin surface
Flammability rating according to UL 94V0
Number of positions6

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643

UNSPSC

UNSPSC 13.239121432

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
