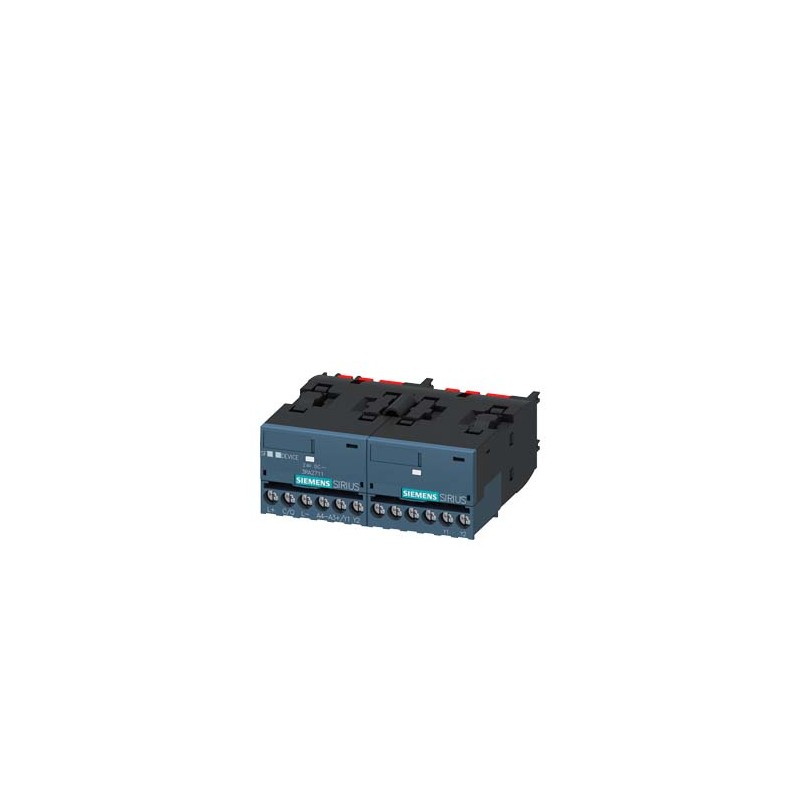

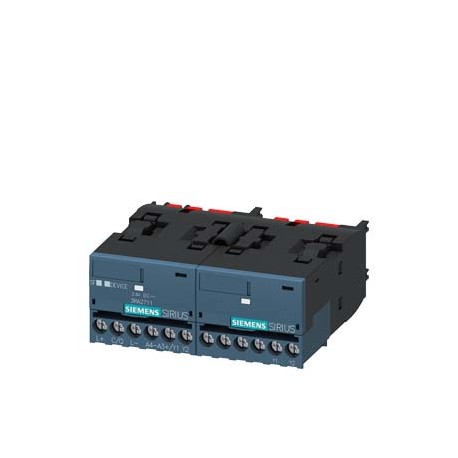

3RA2711-1BA00 SIEMENS Function module for IO-Link, Reversing start, screw terminal, Installation on contacto.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RA2711-1BA00 SIEMENS Function module for IO-Link, Reversing start, screw terminal, Installation on contacto..

3RA2711-1BA00

SIEMENS

Function module for IO-Link, Reversing start, screw terminal, Installation on contactors 3RT2 Communication-capable contactor required

More details


Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology

CONTROL AND CONTACTORS > Contactors for switching motors

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $114.47
Unit price: $114.47

Quantity Price
1+$114.47
2+$101.22
4+$92.19
5+$90.04
7+$87.76
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Function module for IO-Link, Reversing start, screw terminal, Installation on contactors 3RT2 Communication-capable contactor required
General technical data
product brand nameSirius
product designationfunction module
design of the productIO-Link
size of contactor can be combined company-specificS00, S0, S2, S3
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
degree of pollution3
insulation voltage with degree of pollution 3 at AC rated valueV690
installation altitude at height above sea level maximumm2 000
ambient temperature
● during storage°C-40 ... +80
● during operation°C-25 ... +60
● during transport°C-40 ... +80
EMC immunity according to IEC 60947-1ambience A (industrial sector)
EMC emitted interference according to IEC 60947-1CISPR11, ambience A (industrial sector)
conducted interference due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection
conducted interference due to conductor-earth surge according to IEC 61000-4-51 kV
conducted interference due to conductor-conductor surge according to IEC 61000-4-50.5 kV
electrostatic discharge according to IEC 61000-4-28 kV
field-based interference according to IEC 61000-4-310 V/m
shock resistance11g / 15 ms
vibration resistance10 ... 55 Hz / 0.35 mm
reference code
● according to IEC 81346-2K
● according to EN 61346-2K
suitability for use
● direct starterNo
● star-delta starterNo
● reversing starterYes
Communication/ Protocol
product function
● bus communicationYes
● control circuit interface with IO linkYes
● control circuit interface with AS-interfaceNo
Control circuit/ Control
design of the surge suppressorVaristor
type of voltage of the control supply voltageDC
control supply voltage 1 at DC rated valueV24
Installation/ mounting/ dimensions
mounting positionany
fastening methodcan be plugged into contactor
widthmm45
heightmm37
depthmm75
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYes
type of electrical connection for auxiliary and control circuitscrew-type terminals
type of connectable conductor cross-sections
● for auxiliary contacts
— solid0.5 ... 4 mm², 2x (0.5 ... 2.5 mm²)
— finely stranded
— with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)
● at AWG cables for auxiliary contacts2x (20 ... 14)
Certificates/ approvals
certificate of suitabilityCE / UL / CSA

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Manufacturer Declaration

Confirmation

UL

EAC

UK Declaration of Conformity

Declaration of ConformityTest CertificatesMarine / Shipping

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

BV / Bureau Veritas

DNV / Det Norske Veritas

LR (Lloyds Register)

Marine / ShippingotherRailway

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Vibration and Shock

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/15/2020
Date
5/3/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RA2711-1BA00
Product DescriptionFunction module for IO-Link, Reversing start, screw terminal, Installation on contactors 3RT2 Communication-capable contactor required
Product family3RA27 function modules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41B / 41B
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works60 Day/Days
Net Weight (kg)0,145 Kg
Packaging Dimension98,00 x 114,00 x 57,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209824492
UPC662643904260
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group5373
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498
IDEA44775
UNSPSC1439-12-15-21
UNSPSC1539-12-15-52

ETIM data

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) -


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
3RA2711-1BA00 3RA2711-1BA00 EN_3RA2711-1BA00.pdf 248 Kbytes 3RA2711-1BA00 3RA2711-1BA00 EN_3RA2711-1BA00.pdf
