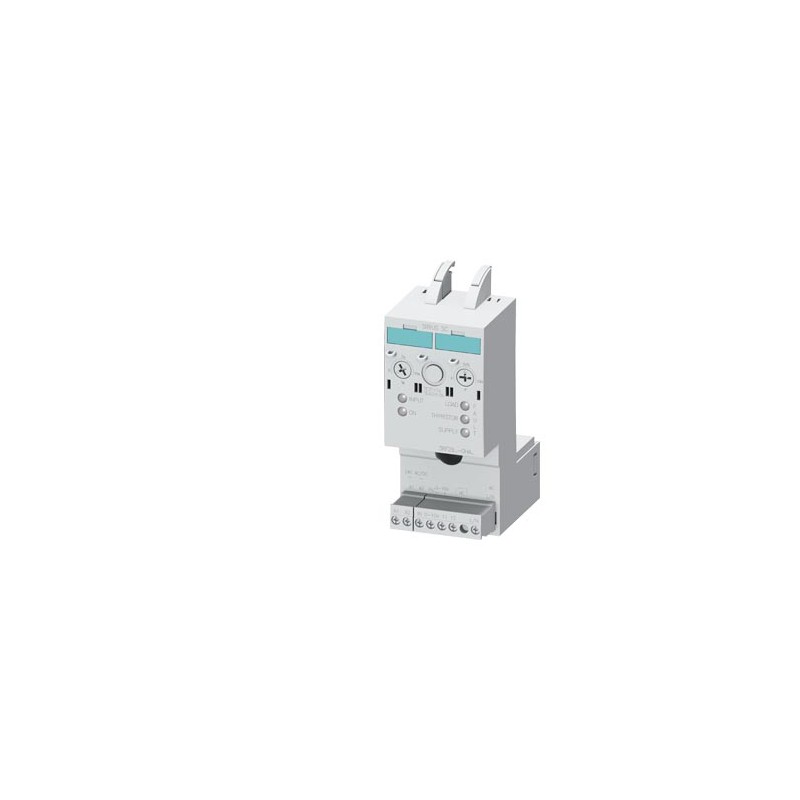

power regulator current range 90 A / 40 °C 400 … 600 V 24 V AC/DC for semiconductor relay / contactor | ||||||||||||||||||||||||||
product brand name | SIRIUS | |||||||||||||||||||||||||
product designation | power regulator | |||||||||||||||||||||||||
manufacturer's article number | ||||||||||||||||||||||||||
● _1 of the accessories that can be ordered | 3RF2900-0RA88 | |||||||||||||||||||||||||
● _2 of the accessories that can be ordered | 4EU2452-3UA00-0AA0 | |||||||||||||||||||||||||
product designation | ||||||||||||||||||||||||||
● _1 of the accessories that can be ordered | sealable end cover | |||||||||||||||||||||||||
● _2 of the accessories that can be ordered | input reactor / 1AC | |||||||||||||||||||||||||
General technical data | ||||||||||||||||||||||||||
product function | solid-state relay / solid-state contactor 3RF2 | |||||||||||||||||||||||||
power loss [W] for rated value of the current without load current share typical | 1 W | |||||||||||||||||||||||||
insulation voltage rated value | 600 V | |||||||||||||||||||||||||
degree of pollution | 3 | |||||||||||||||||||||||||
surge voltage resistance of main circuit rated value | 2.5 kV | |||||||||||||||||||||||||
shock resistance according to IEC 60068-2-27 | 15g / 11 ms | |||||||||||||||||||||||||
vibration resistance according to IEC 60068-2-6 | 2g | |||||||||||||||||||||||||
design of the switching function | NC contact | |||||||||||||||||||||||||
reference code according to IEC 81346-2 | K | |||||||||||||||||||||||||
Substance Prohibitance (Date) | 05/01/2012 | |||||||||||||||||||||||||
Main circuit | ||||||||||||||||||||||||||
number of poles for main current circuit | 0 | |||||||||||||||||||||||||
number of NO contacts for main contacts | 0 | |||||||||||||||||||||||||
number of NC contacts for main contacts | 0 | |||||||||||||||||||||||||
type of voltage | AC/DC | |||||||||||||||||||||||||
operating voltage at AC | ||||||||||||||||||||||||||
● at 50 Hz rated value | 400 ... 600 V | |||||||||||||||||||||||||
● at 60 Hz rated value | 400 ... 600 V | |||||||||||||||||||||||||
operating frequency rated value | 50 ... 60 Hz | |||||||||||||||||||||||||
relative symmetrical tolerance of the operating frequency | 10 % | |||||||||||||||||||||||||
operating range relative to the operating voltage at AC | ||||||||||||||||||||||||||
● at 50 Hz | 340 ... 660 V | |||||||||||||||||||||||||
● at 60 Hz | 340 ... 660 V | |||||||||||||||||||||||||
operational current | ||||||||||||||||||||||||||
● at AC-51 rated value | 90 A | |||||||||||||||||||||||||
derating temperature | 40 °C | |||||||||||||||||||||||||
Control circuit/ Control | ||||||||||||||||||||||||||
type of voltage | AC/DC | |||||||||||||||||||||||||
control supply voltage at AC | ||||||||||||||||||||||||||
● at 50 Hz rated value | 20.5 ... 26.5 V | |||||||||||||||||||||||||
● at 60 Hz rated value | 20.5 ... 26.5 V | |||||||||||||||||||||||||
control supply voltage 1 at AC | ||||||||||||||||||||||||||
● at 50 Hz rated value | 24 V | |||||||||||||||||||||||||
● at 60 Hz rated value | 24 V | |||||||||||||||||||||||||
control supply voltage at DC rated value | 18 ... 30 V | |||||||||||||||||||||||||
control supply voltage 1 | ||||||||||||||||||||||||||
● at DC rated value | 24 V | |||||||||||||||||||||||||
● at DC | 24 V | |||||||||||||||||||||||||
control supply voltage at AC | ||||||||||||||||||||||||||
● at 50 Hz full-scale value for signal<0> recognition | 5 V | |||||||||||||||||||||||||
● at 60 Hz full-scale value for signal<0> recognition | 5 V | |||||||||||||||||||||||||
control supply voltage at DC full-scale value for signal<0> recognition | 5 V | |||||||||||||||||||||||||
supply voltage frequency for auxiliary and control circuit rated value | 50 ... 60 Hz | |||||||||||||||||||||||||
symmetrical line frequency tolerance | 5 Hz | |||||||||||||||||||||||||
control current at minimum control supply voltage | ||||||||||||||||||||||||||
● at AC | 2 mA | |||||||||||||||||||||||||
● at DC | 2 mA | |||||||||||||||||||||||||
control current at AC rated value | 40 mA | |||||||||||||||||||||||||
control current at DC rated value | 40 mA | |||||||||||||||||||||||||
Auxiliary circuit | ||||||||||||||||||||||||||
number of NC contacts for auxiliary contacts | 1 | |||||||||||||||||||||||||
number of NO contacts for auxiliary contacts | 0 | |||||||||||||||||||||||||
number of CO contacts for auxiliary contacts | 0 | |||||||||||||||||||||||||
Installation/ mounting/ dimensions | ||||||||||||||||||||||||||
fastening method | clip-on | |||||||||||||||||||||||||
● side-by-side mounting | Yes | |||||||||||||||||||||||||
height | 111.5 mm | |||||||||||||||||||||||||
width | 45 mm | |||||||||||||||||||||||||
depth | 69.5 mm | |||||||||||||||||||||||||
Connections/ Terminals | ||||||||||||||||||||||||||
type of electrical connection | ||||||||||||||||||||||||||
● for auxiliary and control circuit | screw-type terminals | |||||||||||||||||||||||||
type of connectable conductor cross-sections | ||||||||||||||||||||||||||
● for auxiliary and control contacts | ||||||||||||||||||||||||||
— solid | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) | |||||||||||||||||||||||||
— finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) | |||||||||||||||||||||||||
— finely stranded without core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) | |||||||||||||||||||||||||
● at AWG cables for auxiliary and control contacts | 1x (AWG 20 ... 12) | |||||||||||||||||||||||||
tightening torque for auxiliary and control contacts with screw-type terminals | 0.5 ... 0.6 N·m | |||||||||||||||||||||||||
tightening torque [lbf·in] for auxiliary and control contacts with screw-type terminals | 4.5 ... 5.3 lbf·in | |||||||||||||||||||||||||
design of the thread of the connection screw of the auxiliary and control contacts | M3 | |||||||||||||||||||||||||
stripped length of the cable for auxiliary and control contacts | 7 mm | |||||||||||||||||||||||||
Safety related data | ||||||||||||||||||||||||||
protection class IP on the front according to IEC 60529 | IP20 | |||||||||||||||||||||||||
touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front | |||||||||||||||||||||||||
Ambient conditions | ||||||||||||||||||||||||||
installation altitude at height above sea level maximum | 1 000 m | |||||||||||||||||||||||||
ambient temperature | ||||||||||||||||||||||||||
● during operation | -25 ... +60 °C | |||||||||||||||||||||||||
● during storage | -55 ... +80 °C | |||||||||||||||||||||||||
Electromagnetic compatibility | ||||||||||||||||||||||||||
conducted interference | ||||||||||||||||||||||||||
● due to burst according to IEC 61000-4-4 | 2 kV / 5 kHz behavior criterion 2 | |||||||||||||||||||||||||
● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV behavior criterion 2 | |||||||||||||||||||||||||
● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV behavior criterion 2 | |||||||||||||||||||||||||
● due to high-frequency radiation according to IEC 61000-4-6 | 140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1 | |||||||||||||||||||||||||
electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharging / 8 kV air discharging, behavior criterion 2 | |||||||||||||||||||||||||
conducted HF interference emissions according to CISPR11 | Class A for industrial environment | |||||||||||||||||||||||||
field-bound HF interference emission according to CISPR11 | Class B for the domestic, business and commercial environments | |||||||||||||||||||||||||
Certificates/ approvals | ||||||||||||||||||||||||||
Downloads and manuals | ||||||||||||||||||||||||||
| ||||||||||||||||||||||||||
Further information | ||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||
last modified: | 3/11/2021 | |||||||||||||||||||||||||
Date 5/14/2022 | Subject to change without notice © Copyright Siemens 2022 |
Product | ||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3RF2990-0HA16 | |||||||||||||||||||||||||||||||||
Product Description | power regulator current range 90 A / 40 °C 400 … 600 V 24 V AC/DC for semiconductor relay / contactor | |||||||||||||||||||||||||||||||||
Product family | SIRIUS 3RF29 function modules | |||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
Price data | ||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41C / 41C | |||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
Metal Factor | None | |||||||||||||||||||||||||||||||||
Delivery information | ||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
Standard lead time ex-works | 2 Day/Days | |||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,170 Kg | |||||||||||||||||||||||||||||||||
Packaging Dimension | 48,00 x 89,00 x 116,00 | |||||||||||||||||||||||||||||||||
Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
Additional Product Information | ||||||||||||||||||||||||||||||||||
EAN | 4011209581265 | |||||||||||||||||||||||||||||||||
UPC | 754554874395 | |||||||||||||||||||||||||||||||||
Commodity Code | 85364900 | |||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||
Product Group | 3726 | |||||||||||||||||||||||||||||||||
Group Code | R711 | |||||||||||||||||||||||||||||||||
Country of origin | Czech Republic | |||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 | |||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Rated operation power NEMA (EF011960) | - | kW |
Type of electrical connection of main circuit (EF006819) | - | |
Rated control supply voltage Us at AC 50HZ (EF003978) | ['20.5', '26.5'] | V |
Rated control supply voltage Us at AC 60HZ (EF003979) | ['20.5', '26.5'] | V |
Rated control supply voltage Us at DC (EF003980) | ['18', '30'] | V |
Voltage type for actuating (EF008242) | AC/DC | |
Rated operation current Ie at AC-1, 400 V (EF001393) | 90 | A |
Rated operation current Ie at AC-3, 400 V (EF001392) | - | A |
Rated operation current Ie at AC-4, 400 V (EF008495) | - | A |
Modular version (EF001126) | true | |
Number of auxiliary contacts as normally open contact (EF001376) | 0 | |
Number of auxiliary contacts as normally closed contact (EF001377) | 1 | |
Number of normally closed contacts as main contact (EF001375) | 0 | |
Number of main contacts as normally open contact (EF001374) | 0 | |
Rated operation power at AC-4, 400 V (EF008496) | - | kW |
Rated operation power at AC-3, 400 V (EF001364) | - | kW |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
![]() |
