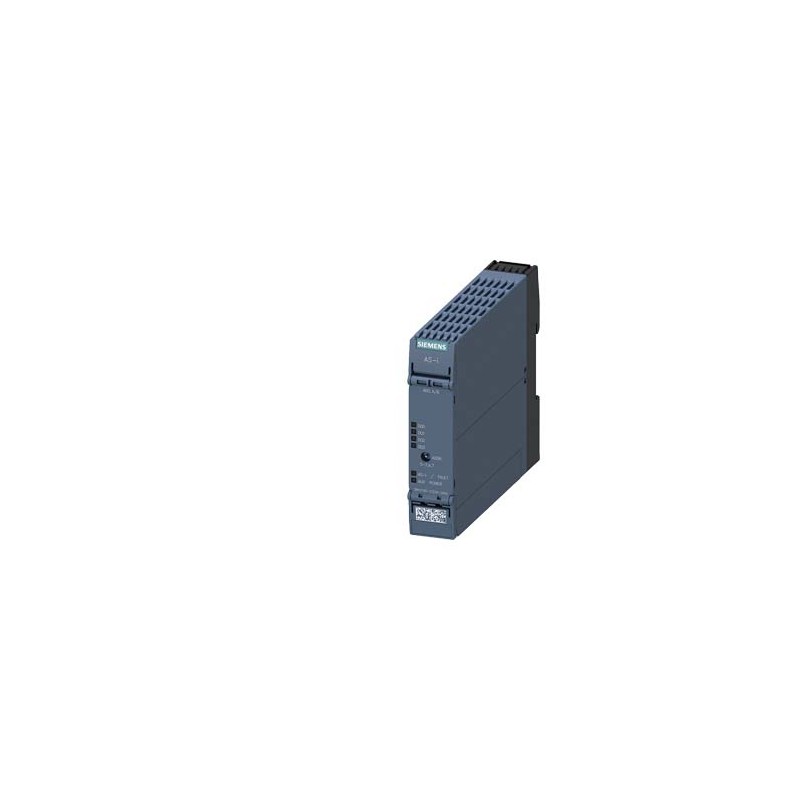

3RK2100-1CE00-2AA2 SIEMENS AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DQ, IP20 4 x output, 2 A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

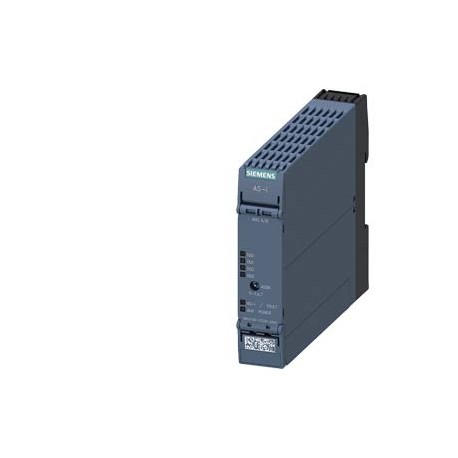

3RK2100-1CE00-2AA2 SIEMENS AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DQ, IP20 4 x output, 2 A..

3RK2100-1CE00-2AA2

SIEMENS

AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DQ, IP20 4 x output, 2 A, 24 V DC maximal 4 A for all outputs Screw terminals Width 22.5 mm

More details


CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $194.37
Unit price: $194.37

Quantity Price
1+$194.37
2+$167.85
3+$159.53
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DQ, IP20 4 x output, 2 A, 24 V DC maximal 4 A for all outputs Screw terminals Width 22.5 mm
product designationSlimline Compact I/O module for use in the control cabinet
design of the productAS-i SC22.5, 4DQ A/B
General technical data
protection class IPIP20
design of the slave typeA/B slave (Spec. 3.0)
AS-Interface slave profileS-7.A.7
ID1 code7; Setting cannot be changed
operating voltage according to AS-Interface specification18 ... 31.6 V
product function suitable for AS-i Power24VYes
protocol is supported AS-Interface protocolYes
consumed current from profile conductors of the AS-Interface
● at 30 V maximum45 mA
● at 24 V with AS-i Power24V maximum45 mA
type of address setting of AS-i slavesvia front addressing socket
display version
● as status display of the inputs/outputsLED yellow/red
● for AS-InterfaceLED green/red
reference code
● according to EN 61346-2K
● according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
shock resistance15g / 11 ms (modules) or 10g / 11 ms (modules with device connector)
other informationAn auxiliary external feed (AUX POWER) of between 20 and 30 V DC is necessary for supplying the output circuits. The auxiliary feed must comply with IEC 60990 (PELV), protection class III.
Digital Inputs
number of digital inputs0
number of digital inputs safety-related0
Digital Outputs
number of digital outputs4
type of switching outputPNP transistor
product function for power supply reverse polarity protectionYes
property of the output short-circuit proofYes
product functionBuilt-in induction protection
total current of digital outputs per module maximum4 A
type of voltage supply at the outputsvia AUX POWER
ampacity of the semiconductor output at DC-13 at 24 V2 A
Analog inputs
number of analog inputs0
Analog outputs
number of analog outputs0
Device connector
ampacity of the interface to the device connector
● for AS-Interface2 A
● for external auxiliary voltage4 A
Installation/ mounting/ dimensions
fastening methodscrew and snap-on mounting
height100 mm
width22.5 mm
depth120 mm
Ambient conditions
ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +85 °C
Connections/ Terminals
type of electrical connection of the inputs and outputsScrew terminals
type of connectable conductor cross-sections
● solid1x (0.5 ... 2.5 mm²), 2x ( 0.5 ... 1.5 mm²)
● finely stranded with core end processing1x (0.25 ... 2.5 mm²), 2x (0.25 ... 1.0 mm²)
● finely stranded without core end processingNot permitted
● at AWG cables solid1x (20 ... 14), 2x (18 ... 16)
● at AWG cables strandedNot permitted
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CSA

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shipping

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RMRS / Russian Maritime Register

DNV-GL

other

ASI-Certification

Confirmation

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:1/18/2021
Date
5/3/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK2100-1CE00-2AA2
Product DescriptionAS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DQ, IP20 4 x output, 2 A, 24 V DC maximal 4 A for all outputs Screw terminals Width 22.5 mm
Product familySlimLine Compact
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,193 Kg
Packaging Dimension161,00 x 111,00 x 38,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209974487
UPC804766359811
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-26-04
eClass7.127-24-26-04
eClass827-24-26-04
eClass927-24-26-04
eClass9.127-24-26-04
ETIM5EC001599
ETIM6EC001599
ETIM7EC001599
ETIM8EC001599
IDEA43566
UNSPSC1532-15-17-05

ETIM data

ETIM: EC001599 - Fieldbus, decentr. periphery - digital I/O module

Value Unit
Width (EF000008) -mm
Height (EF000040) -mm
Depth (EF000049) -mm
Suitable for safety functions (EF001597) -
Short-circuit protection, outputs available (EF003203) -
Explosion safety category for dust (EF003998) -
System accessory (EF004118) -
Number of interfaces PROFINET (EF006932) -
Wall mounting/direct mounting (EF007020) -
Supply voltage AC 60 Hz (EF007533) -V
Input current at signal 1 (EF001428) -mA
Time delay at signal exchange (EF002382) -ms
Voltage type of supply voltage (EF002991) -
Number of HW-interfaces RS-485 (EF003023) -
Number of HW-interfaces serial TTY (EF003024) -
Explosion safety category for gas (EF003997) -
Fieldbus connection over separate bus coupler possible (EF004002) -
Supporting protocol for EtherNet/IP (EF007521) -
Permitted voltage at output (EF007553) -V
Digital inputs configurable (EF008516) -
Supporting protocol for SafetyBUS p (EF007527) -
Supporting protocol for KNX (EF003055) -
Number of HW-interfaces parallel (EF003026) -
Rack-assembly possible (EF007018) -
Radio standard WLAN 802.11 (EF007179) -
Supporting protocol for AS-Interface Safety at Work (EF007519) -
Type of output voltage (EF008222) -
Digital outputs configurable (EF008520) -
Appendant operation agent (Ex ia) (EF004141) -
Number of HW-interfaces other (EF003027) -
Number of HW-interfaces industrial Ethernet (EF003020) -
Number of HW-interfaces RS-232 (EF003021) -
Number of HW-interfaces RS-422 (EF003022) -
Supporting protocol for ASI (EF003051) -
Supporting protocol for PROFIBUS (EF003052) -
Supporting protocol for INTERBUS (EF003054) -
Supporting protocol for Modbus (EF003057) -
Supporting protocol for Data-Highway (EF003058) -
Type of electric connection (EF003961) -
Supporting protocol for Foundation Fieldbus (EF007522) -
SIL according to IEC 61508 (EF009889) -
Supporting protocol for LON (EF003017) -
Supporting protocol for SERCOS (EF006657) -
Number of digital inputs (EF001992) -
With optical interface (EF003028) -
Supporting protocol for TCP/IP (EF003050) -
Supporting protocol for CAN (EF003053) -
Output current (EF003202) -A
Appendant operation agent (Ex ib) (EF004142) -
Supporting protocol for PROFINET CBA (EF007524) -
Supporting protocol for PROFINET IO (EF007525) -
Supporting protocol for SUCONET (EF003060) -
Rail mounting possible (EF003972) -
Category according to EN 954-1 (EF006782) -
Type of digital output (EF003601) -
Supply voltage AC 50 Hz (EF007532) -V
Number of digital outputs (EF001993) -
Type of voltage (input voltage) (EF003033) -
Supporting protocol for other bus systems (EF003062) -
Degree of protection (IP) (EF005474) -
Performance level according to EN ISO 13849-1 (EF007399) -
Supporting protocol for PROFIsafe (EF007526) -
Supporting protocol for DeviceNet Safety (EF007520) -
IO link master (EF007298) -
Number of HW-interfaces USB (EF003025) -
Number of HW-interfaces Wireless (EF006933) -
Supply voltage DC (EF007534) -V
Supporting protocol for DeviceNet (EF003059) -
Supporting protocol for INTERBUS-Safety (EF006662) -
Front build in possible (EF007016) -
Radio standard GPRS (EF008523) -
Radio standard GSM (EF008524) -
Radio standard Bluetooth (EF007178) -
Permitted voltage at input (EF007554) -V
