> SIEMENS>CONTROL AND CONTACTORS>Contactors for switching motors>3RT1926-3AP31 SIEMENS Latching block, mechanical, for mounting on 3RT1.2. and 3RT1.3., 230 V AC/DC, ! Phased..
Previous Product Next Product

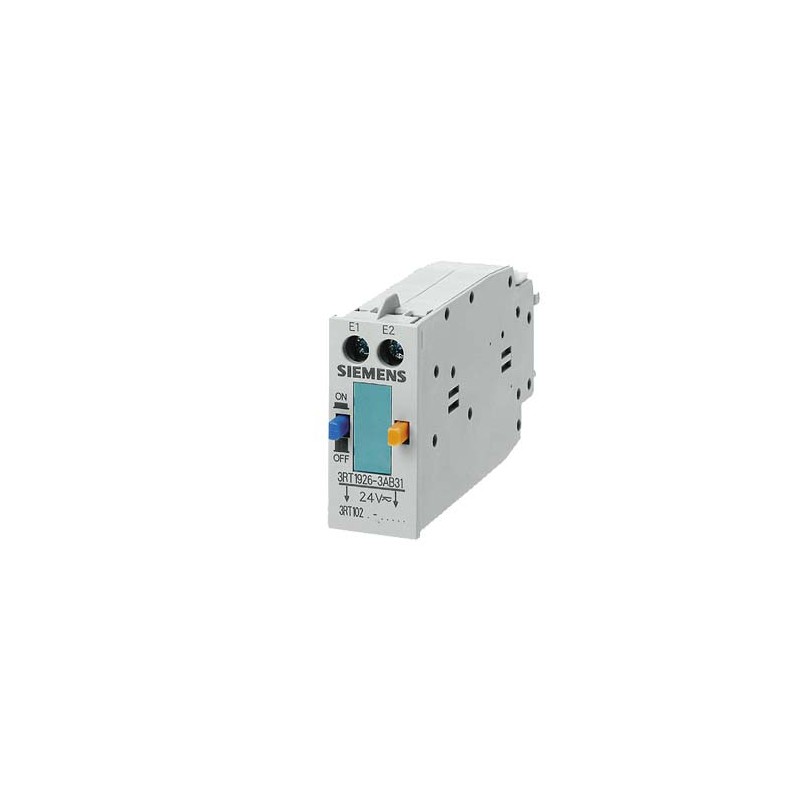

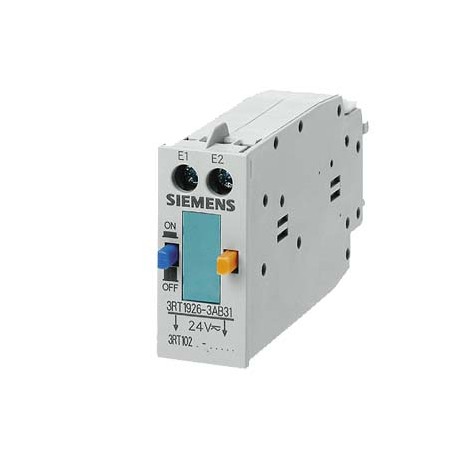

3RT1926-3AP31 SIEMENS Latching block, mechanical, for mounting on 3RT1.2. and 3RT1.3., 230 V AC/DC, ! Phased.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RT1926-3AP31 SIEMENS Latching block, mechanical, for mounting on 3RT1.2. and 3RT1.3., 230 V AC/DC, ! Phased..

3RT1926-3AP31

SIEMENS

Latching block, mechanical, for mounting on 3RT1.2. and 3RT1.3., 230 V AC/DC, ! Phased-out product! Successor is SIRIUS 3RT2

More details


Low-voltage industrial components > Mechanic interlock for switch

CONTROL AND CONTACTORS > Contactors for switching motors

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC001044 - Mechanic interlock for switch

Value Unit
Auxiliary contacts, extendable (EF001450) false
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0


Latching block, mechanical, for mounting on 3RT1.2. and 3RT1.3., 230 V AC/DC, ! Phased-out product! Successor is SIRIUS 3RT2
General technical data
Product brand nameSIRIUS
Product designationmechanical latch
Size of contactorS0, S2
Protection class IP on the frontIP20
Insulation voltage with degree of pollution 3 at AC rated valueV300
Ambient temperature
● during storage°C-50 ... +80
● during operation°C-25 ... +60
Auxiliary circuit
Number of NC contacts
● for auxiliary contacts0
Number of NO contacts
● for auxiliary contacts0
Control circuit/ Control
Type of voltage of the control supply voltageAC/DC
Installation/ mounting/ dimensions
Mounting typeclip-on
Mounting positionany
Connections/ Terminals
Type of electrical connection for auxiliary and control current circuitscrew-type terminals
Type of connectable conductor cross-sections
● for auxiliary contacts
— solid2x (0.5 ... 2.5 mm²), 1x 4 mm²
— finely stranded
— with core end processing2x (0.5 ... 2.5 mm²), 1x 2.5 mm²
● at AWG conductors for auxiliary contacts2x 14, 1x 12
Certificates/ approvals
Certificate of suitabilityCE / UL / CSA / CCC
General Product ApprovalEMCFunctional Safety/Safety of MachineryDeclaration of Conformity

CSA

UL

EAC

RCM

Type Examination Certificate

EC/EU-Declaration of Conformity

Declaration of ConformityTest CertificatesShipping Approval

Miscellaneous

Special Test Certificate

ABS (American Bureau of Shipping)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

otherRailway

Confirmation

Miscellaneous

Special Test Certificate

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:08/03/2020


Product
Article Number (Market Facing Number)3RT1926-3AP31
Product DescriptionLatching block, mechanical, for mounting on 3RT1.2. and 3RT1.3., 230 V AC/DC, ! Phased-out product! Successor is SIRIUS 3RT2
Product familyNot available
Product Lifecycle (PLM)PM410:Product cancellation
PLM Effective DateProduct is cancelled since: 01.10.2019
Price data
Price Group41B
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-works20 Day/Days
Net Weight (kg)0,129 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension28,50 x 89,50 x 102,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209548022
UPC754554889245
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group3729
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
Not available

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
3RT1926-3AP31 3RT1926-3AP31 EN_3RT1926-3AP31.pdf 183 Kbytes 3RT1926-3AP31 3RT1926-3AP31 EN_3RT1926-3AP31.pdf
