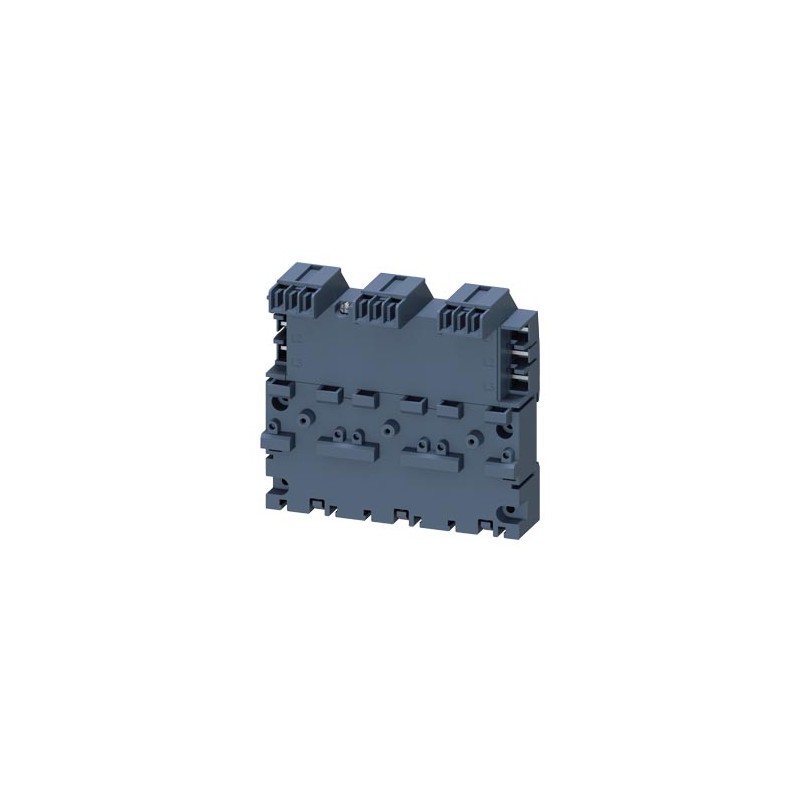

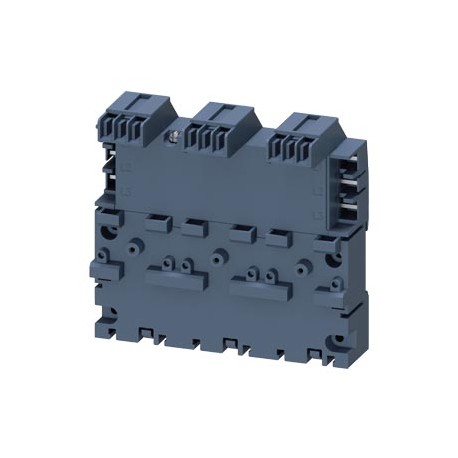

3RV2917-4B SIEMENS 3-phase busbar including extension connector for 3 circuit breakers Size S00 and S0 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RV2917-4B SIEMENS 3-phase busbar including extension connector for 3 circuit breakers Size S00 and S0

3RV2917-4B

SIEMENS

3-phase busbar including extension connector for 3 circuit breakers Size S00 and S0

More details


Low-voltage industrial components > Chassis part power circuit breaker

CONTROL AND CONTACTORS > Motor protection switches

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $24.52
Unit price: $24.52

Quantity Price
1+$24.52
2+$24.52
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


Technical data

3-phase busbar including extension connector for 3 circuit breakers Size S00 and S0
General technical data
product brand nameSIRIUS
product designationthree-phase busbars for system expansion
design of the productfor 3 switches
size of the circuit-breakerS00, S0
suitability for usecircuit-breakers 3RV2
protection class IP on the front according to IEC 60529IP00; IP20 with cover
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front with cover
Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on fastening on 35 mm standard rail
widthmm136.4
heightmm129
depthmm58.5
operational current rated valueA63
number of poles for main current circuit3
type of electrical connection for main current circuitplug-in without terminals
required spacing for live parts
● upwardsmm10
● backwardsmm0
● at the sidemm0
required spacing for grounded parts
● upwardsmm10
● backwardsmm0
● at the sidemm0
required spacing with side-by-side mounting
● upwardsmm10
● backwardsmm0
● at the sidemm0
Certificates/ approvals

Downloads and manuals

General Product ApprovalDeclaration of Conformity

CSA

Confirmation

UL

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Test CertificatesMarine / Shipping

Type Test Certificates/Test Report

Special Test Certificate

ABS (American Bureau of Shipping)

BV / Bureau Veritas

DNV / Det Norske Veritas

LR (Lloyds Register)

Marine / ShippingotherRailway

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Household and similar appliances

Vibration and Shock

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/15/2020
Date
5/7/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RV2917-4B
Product Description3-phase busbar including extension connector for 3 circuit breakers Size S00 and S0
Product family3RV29 infeed system
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41E / 41E
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works20 Day/Days
Net Weight (kg)0,435 Kg
Packaging Dimension150,00 x 165,00 x 65,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209719040
UPC662643925128
Commodity Code85369095
LKZ_FDB/ CatalogIDCC-IC10
Product Group5335
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-04-22
eClass7.127-37-04-22
eClass827-37-04-22
eClass927-37-04-22
eClass9.127-37-04-22
ETIM5EC002043
ETIM6EC002043
ETIM7EC002043
ETIM8EC002043
IDEA44604
UNSPSC1439-12-15-21
UNSPSC1539-12-14-32

ETIM data

ETIM: EC002043 - Chassis part power circuit breaker

Value Unit
Rated current In (EF008250) 63.0A
Number of poles (EF001391) 3
Version as busbar adapter (EF006965) FALSE
Version as built-in device (EF006954) false
Type of electrical connection of main circuit (EF006819) Other
