3SB2000-2BC01
SIEMENS
1

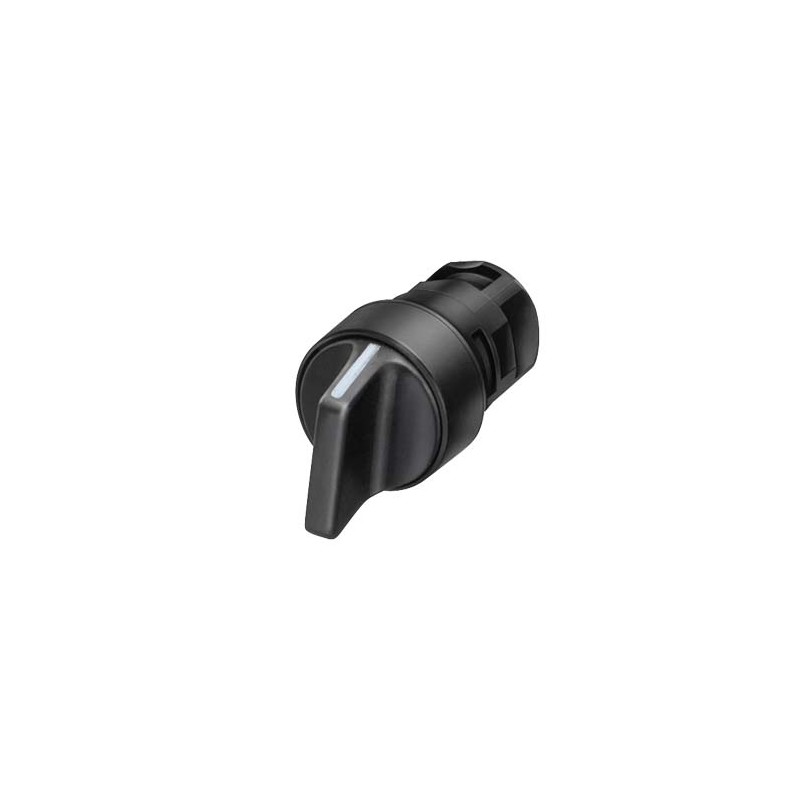

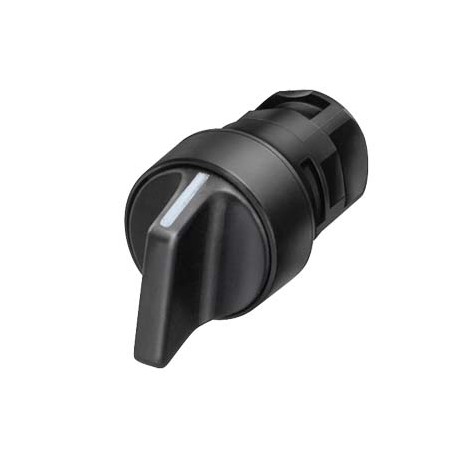

Selector switch, 16 mm, round, plastic, red, 2 switch positions O
Drive element, 16mm, crutch 0-I, as pushbutton, red. Manufactured to order. Non-Cancelable Non-Returnable.
Low-voltage industrial components > Front element for selector switch
CONTROL AND CONTACTORS > Commanding and signaling devices
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product | ||||||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3SB2000-2BC01 | |||||||||||||||||||||||||||||||||||||||
Product Description | Selector switch, 16 mm, round, plastic, red, 2 switch positions O<I, momentary contact type, retraction from right, actuating angle 50 degree | |||||||||||||||||||||||||||||||||||||||
Product family | Actuating and signaling elements | |||||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
Price data | ||||||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | |||||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
Delivery information | ||||||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 10 Day/Days | |||||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,020 Kg | |||||||||||||||||||||||||||||||||||||||
Packaging Dimension | 18,00 x 35,00 x 18,00 | |||||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
EAN | 4011209027701 | |||||||||||||||||||||||||||||||||||||||
UPC | 754554865461 | |||||||||||||||||||||||||||||||||||||||
Commodity Code | 85389099 | |||||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | |||||||||||||||||||||||||||||||||||||||
Product Group | 5834 | |||||||||||||||||||||||||||||||||||||||
Group Code | R711 | |||||||||||||||||||||||||||||||||||||||
Country of origin | Czech Republic | |||||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 | |||||||||||||||||||||||||||||||||||||||
Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
Classifications | ||||||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Degree of protection (NEMA) (EF011959) | - | |
Number of switch positions (EF000231) | 2 | |
Type of control element (EF006976) | Toggle | |
Suitable for illumination (EF001142) | false | |
Colour control element (EF007167) | Red | |
Colour indicator light cap (EF007165) | Red | |
Construction type lens (EF006253) | Round | |
Hole diameter (EF000079) | 16.0 | mm |
Width opening (EF004565) | 19.0 | mm |
Height opening (EF004778) | 17.0 | mm |
Switching function latching (EF007447) | FALSE | |
Spring-return (EF001407) | FALSE | |
With front ring (EF006014) | true | |
Material front ring (EF005972) | Plastic | |
Colour front ring (EF002429) | Black | |
Degree of protection (IP), front side (EF003118) | IP65 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
![]() |
3SB2000-2BC01 3SB2000-2BC01 EN_3SB2000-2BC01.pdf | 127 Kbytes |
![]() |
