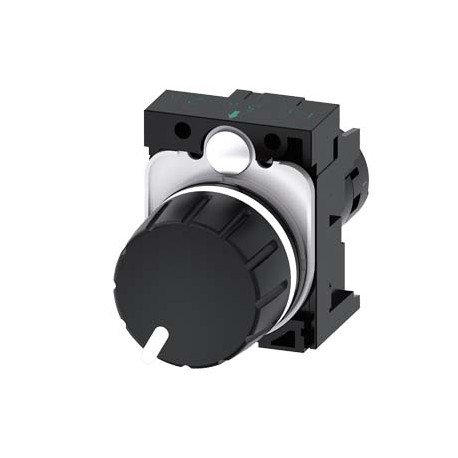

3SU1200-2PS10-1AA0
SIEMENS
1
Potentiometer, compact, 22 mm, round, plastic, black, 10k ohm, with holder, screw terminal
Low-voltage industrial components > Potentiometer for command devices
CONTROL AND CONTACTORS > Commanding and signaling devices
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Potentiometer, compact, 22 mm, round, plastic, black, 10k ohm, with holder, screw terminal | ||||||||||||||||||||||||||
product brand name | SIRIUS ACT | |||||||||||||||||||||||||
product designation | Potentiometers | |||||||||||||||||||||||||
design of the product | Compact unit | |||||||||||||||||||||||||
product type designation | 3SU1 | |||||||||||||||||||||||||
product line | Plastic, black, 22 mm | |||||||||||||||||||||||||
manufacturer's article number of the supplied holder | 3SU1550-0AA10-0AA0 | |||||||||||||||||||||||||
Enclosure | ||||||||||||||||||||||||||
number of command points | 1 | |||||||||||||||||||||||||
Actuator | ||||||||||||||||||||||||||
design of the actuating element | Rotary knob | |||||||||||||||||||||||||
principle of operation of the actuating element | Infinitely variable adjustment, angle of rotation 280° | |||||||||||||||||||||||||
color of the actuating element | black | |||||||||||||||||||||||||
material of the actuating element | plastic | |||||||||||||||||||||||||
shape of the actuating element | round | |||||||||||||||||||||||||
outer diameter of the actuating element | 30 mm | |||||||||||||||||||||||||
Maximum deflection angle [°] | 280° | |||||||||||||||||||||||||
Front ring | ||||||||||||||||||||||||||
product component front ring | No | |||||||||||||||||||||||||
Holder | ||||||||||||||||||||||||||
material of the holder | Plastic | |||||||||||||||||||||||||
General technical data | ||||||||||||||||||||||||||
insulation voltage rated value | 500 V | |||||||||||||||||||||||||
degree of pollution | 3 | |||||||||||||||||||||||||
protection class IP | IP66, IP67, IP69(IP69K) | |||||||||||||||||||||||||
● of the terminal | IP20, clamping screw tightened | |||||||||||||||||||||||||
degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 | |||||||||||||||||||||||||
shock resistance | ||||||||||||||||||||||||||
● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms | |||||||||||||||||||||||||
● for railway applications according to EN 61373 | Category 1, Class B | |||||||||||||||||||||||||
vibration resistance | ||||||||||||||||||||||||||
● according to IEC 60068-2-6 | 10 ... 500 Hz: 5g | |||||||||||||||||||||||||
● for railway applications according to EN 61373 | Category 1, Class B | |||||||||||||||||||||||||
mechanical service life (switching cycles) typical | 25 000 | |||||||||||||||||||||||||
reference code according to IEC 81346-2 | S | |||||||||||||||||||||||||
Substance Prohibitance (Date) | 01/01/2016 | |||||||||||||||||||||||||
Connections/ Terminals | ||||||||||||||||||||||||||
type of electrical connection | screw-type terminals | |||||||||||||||||||||||||
type of connectable conductor cross-sections | ||||||||||||||||||||||||||
● solid with core end processing | 2x (0.5 ... 0.75 mm²) | |||||||||||||||||||||||||
● solid without core end processing | 2x (1.0 ... 1.5 mm²) | |||||||||||||||||||||||||
● finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) | |||||||||||||||||||||||||
● finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) | |||||||||||||||||||||||||
● at AWG cables | 2x (18 ... 14) | |||||||||||||||||||||||||
tightening torque of the screws in the bracket | 1 ... 1.2 N·m | |||||||||||||||||||||||||
tightening torque with screw-type terminals | 0.8 ... 1 N·m | |||||||||||||||||||||||||
Ambient conditions | ||||||||||||||||||||||||||
ambient temperature | ||||||||||||||||||||||||||
● during operation | -25 ... +70 °C | |||||||||||||||||||||||||
● during storage | -40 ... +80 °C | |||||||||||||||||||||||||
environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) | |||||||||||||||||||||||||
Installation/ mounting/ dimensions | ||||||||||||||||||||||||||
height | 40 mm | |||||||||||||||||||||||||
width | 30 mm | |||||||||||||||||||||||||
shape of the installation opening | round | |||||||||||||||||||||||||
mounting diameter | 22.3 mm | |||||||||||||||||||||||||
positive tolerance of installation diameter | 0.4 mm | |||||||||||||||||||||||||
mounting height | 19.4 mm | |||||||||||||||||||||||||
installation width | 30 mm | |||||||||||||||||||||||||
installation depth | 46 mm | |||||||||||||||||||||||||
Certificates/ approvals | ||||||||||||||||||||||||||
Downloads and manuals | ||||||||||||||||||||||||||
| ||||||||||||||||||||||||||
Further information | ||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||
last modified: | 1/27/2022 | |||||||||||||||||||||||||
Date 5/3/2022 | Subject to change without notice © Copyright Siemens 2022 |
Product | |||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 3SU1200-2PS10-1AA0 | ||||||||||||||||||||||||||||||||||||
Product Description | Potentiometer, compact, 22 mm, round, plastic, black, 10k ohm, with holder, screw terminal | ||||||||||||||||||||||||||||||||||||
Product family | Actuators and indicators, 22 mm, round, plastic, black | ||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
Price data | |||||||||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 41J / 41J | ||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
Metal Factor | None | ||||||||||||||||||||||||||||||||||||
Delivery information | |||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 55 Day/Days | ||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,068 Kg | ||||||||||||||||||||||||||||||||||||
Packaging Dimension | 73,00 x 121,00 x 34,00 | ||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
Additional Product Information | |||||||||||||||||||||||||||||||||||||
EAN | 4011209954045 | ||||||||||||||||||||||||||||||||||||
UPC | 804766175732 | ||||||||||||||||||||||||||||||||||||
Commodity Code | 85334010 | ||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
Product Group | 5452 | ||||||||||||||||||||||||||||||||||||
Group Code | R711 | ||||||||||||||||||||||||||||||||||||
Country of origin | Czech Republic | ||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2016 | ||||||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
Classifications | |||||||||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Resistance (EF002431) | 10000.0 | Ohm |
Power consumption (EF000346) | 1.0 | W |
Hole diameter (EF000079) | 22.3 | mm |
Number of revolutions (EF006943) | ['270', '270'] | |
Type of electric connection (EF003961) | Screw connection | |
Degree of protection (IP) (EF005474) | Other | |
Degree of protection (NEMA) (EF011959) | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
![]() |
3SU1200-2PS10-1AA0 3SU1200-2PS10-1AA0 EN_3SU1200-2PS10-1AA0.pdf | 190 Kbytes |
![]() |
