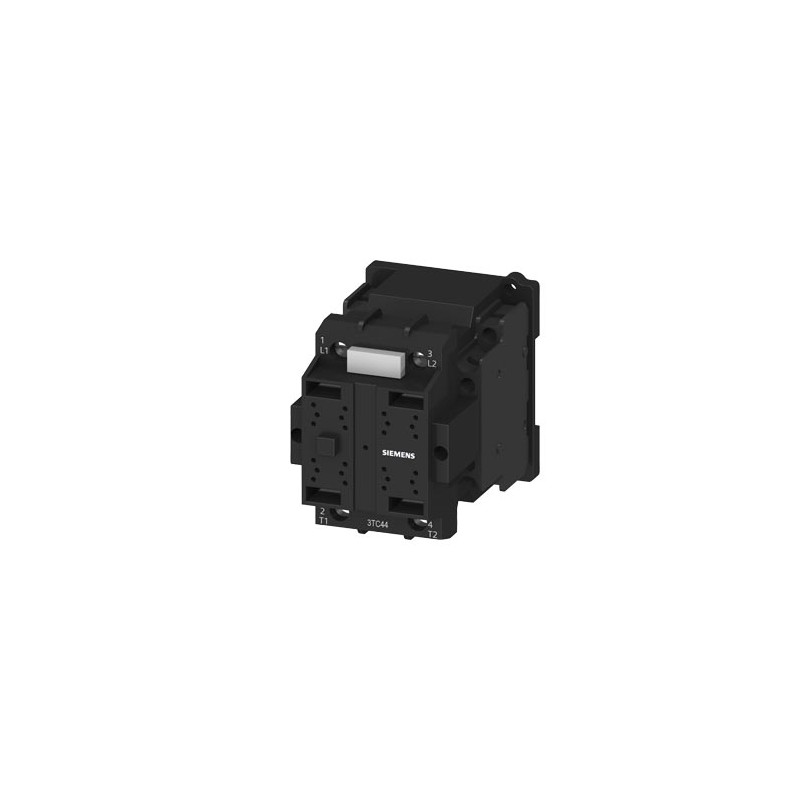

3TC4417-0BC1 SIEMENS Contactor, Size 2, 2-pole, DC-3 and 5, 32 A Auxiliary contacts 22 (2 NO + 2 NC) 24 V AC.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

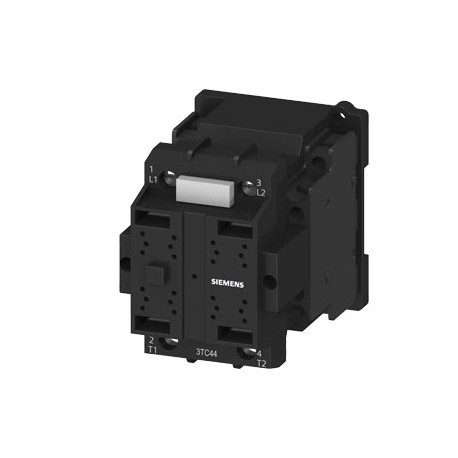

3TC4417-0BC1 SIEMENS Contactor, Size 2, 2-pole, DC-3 and 5, 32 A Auxiliary contacts 22 (2 NO + 2 NC) 24 V AC..

3TC4417-0BC1

SIEMENS

Contactor, Size 2, 2-pole, DC-3 and 5, 32 A Auxiliary contacts 22 (2 NO + 2 NC) 24 V AC 60 Hz/20 V AC 50 Hz AC operation

SIRIUS Contactor TAMANO 2, 2 poles DC-3 and 5, 32ASIRIUS ContactorS AUXIL. 22 (2NA+2NC) ACCIONAM. BY ALTERNATING CURRENT AC 24V 60HZ/AC 20V 50HZ. Manufactured to order. Non-Cancelable Non-Returnable.

More details


Low-voltage industrial components > Power contactor, DC switching

CONTROL AND CONTACTORS > Contactors for switching motors

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $191.85
Unit price: $191.85

Quantity Price
1+$191.85
2+$185.60
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Contactor, Size 2, 2-pole, DC-3 and 5, 32 A Auxiliary contacts 22 (2 NO + 2 NC) 24 V AC 60 Hz/20 V AC 50 Hz AC operation
product designationContactor
product type designation3TC
General technical data
size of contactor2
product extension
● function module for communicationNo
● auxiliary switchYes
insulation voltage rated value800 V
maximum permissible voltage for safe isolation between coil and main contacts according to EN 60947-1300 V
shock resistance at rectangular impulse
● at AC7,5g / 5 ms, 3,4g / 10 ms
mechanical service life (switching cycles)
● of contactor typical10 000 000
● of the contactor with added auxiliary switch block typical10 000 000
reference code according to IEC 81346-2Q
Substance Prohibitance (Date)02/01/2012
Ambient conditions
ambient temperature
● during operation-25 ... +55 °C
● during storage-50 ... +80 °C
relative humidity minimum10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
Main circuit
number of poles2
number of poles for main current circuit2
number of NO contacts for main contacts2
number of NC contacts for main contacts0
type of voltageDC
operational current
● at 1 current path at DC-1
— at 24 V rated value32 A
— at 110 V rated value32 A
— at 220 V rated value32 A
● with 2 current paths in series at DC-1
— at 24 V rated value32 A
— at 110 V rated value32 A
— at 220 V rated value32 A
— at 440 V rated value32 A
— at 600 V rated value32 A
— at 750 V rated value32 A
● at 1 current path at DC-3 at DC-5
— at 24 V rated value32 A
— at 110 V rated value32 A
— at 220 V rated value32 A
● with 2 current paths in series at DC-3 at DC-5
— at 24 V rated value32 A
— at 110 V rated value32 A
— at 220 V rated value32 A
— at 440 V rated value29 A
— at 600 V rated value21 A
— at 750 V rated value7.5 A
operating power
● at DC-1
— at 110 V rated value3.5 kW
— at 220 V rated value7 kW
— at 440 V rated value14 kW
— at 750 V rated value24 kW
● at DC-3 at DC-5
— at 110 V rated value2.5 kW
— at 220 V rated value5 kW
— at 440 V rated value9 kW
— at 600 V rated value9 kW
— at 750 V rated value4 kW
operating frequency
● at DC-1 maximum1 500 1/h
● at DC-3 maximum750 1/h
● at DC-5 maximum750 1/h
Control circuit/ Control
type of voltage of the control supply voltageAC
control supply voltage at AC
● at 50 Hz rated value20 V
● at 60 Hz rated value24 V
operating range factor control supply voltage rated value of magnet coil at AC
● at 60 Hz0.8 ... 1.1
apparent pick-up power of magnet coil at AC95 VA
● at 50 Hz68 VA
● at 60 Hz95 VA
inductive power factor with closing power of the coil0.79
● at 50 Hz0.86
● at 60 Hz0.79
apparent holding power of magnet coil at AC12 VA
● at 50 Hz10 VA
● at 60 Hz12 VA
inductive power factor with the holding power of the coil0.3
● at 50 Hz0.29
● at 60 Hz0.3
arcing time20 ... 30 ms
Auxiliary circuit
number of NC contacts for auxiliary contacts2
● instantaneous contact2
number of NO contacts for auxiliary contacts2
● instantaneous contact2
number of CO contacts for auxiliary contacts0
identification number and letter for switching elements22
operational current at AC-12 maximum10 A
operational current at AC-15
● at 230 V rated value5.6 A
● at 400 V rated value3.6 A
● at 500 V rated value2.5 A
operational current at DC-12
● at 24 V rated value10 A
● at 48 V rated value10 A
● at 60 V rated value10 A
● at 110 V rated value3.2 A
● at 125 V rated value2.5 A
● at 220 V rated value0.9 A
● at 600 V rated value0.22 A
operational current at DC-13
● at 24 V rated value10 A
● at 48 V rated value5 A
● at 60 V rated value5 A
● at 110 V rated value1.14 A
● at 125 V rated value0.98 A
● at 220 V rated value0.48 A
● at 600 V rated value0.07 A
UL/CSA ratings
contact rating of auxiliary contacts according to ULA600 / P600
Short-circuit protection
design of the fuse link
● for short-circuit protection of the main circuit
— with type of coordination 1 required2 x 3NA3020 (50 A) in series (750 V, 3 kA)
— with type of assignment 2 required2 x 3NA3020 (50 A) in series (750 V, 3 kA)
● for short-circuit protection of the auxiliary switch requiredgG: 16 A (500 V, 1 kA)
Installation/ mounting/ dimensions
mounting position+/-22,5° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface; standing, on horizontal mounting surface
fastening methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
● side-by-side mountingYes
height85 mm
width70 mm
depth104 mm
required spacing
● with side-by-side mounting
— forwards15 mm
— backwards0 mm
— upwards10 mm
— downwards10 mm
— at the side10 mm
● for grounded parts
— forwards30 mm
— backwards0 mm
— upwards10 mm
— at the side10 mm
— downwards10 mm
● for live parts
— forwards30 mm
— backwards0 mm
— upwards10 mm
— downwards10 mm
— at the side10 mm
Connections/ Terminals
type of electrical connectionscrew-type terminals
● for main current circuitscrew-type terminals
● for auxiliary and control circuitscrew-type terminals
type of connectable conductor cross-sections
● for main contacts
— solid or stranded2x (2,5 ... 10 mm²)
— finely stranded with core end processing2x (1.5 ... 4 mm²)
type of connectable conductor cross-sections
● for auxiliary contacts
— solid or stranded2x (1 ... 2,5 mm²)
— finely stranded with core end processing2x (0.75 ... 1.5 mm²)
Safety related data
product function mirror contact according to IEC 60947-4-1Yes; One NC contact each must be connected in series for the right and left auxiliary switch block respectively
protection class IP on the front according to IEC 60529IP00
Certificates/ approvals

Downloads and manuals

General Product ApprovalFunctional Safety/Safety of Machinery

CSA

Confirmation

CCC

UL

EAC

Type Examination Certificate

Functional Safety/Safety of MachineryDeclaration of ConformityTest Certificates

Type Examination Certificate

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Miscellaneous

Special Test Certificate

Type Test Certificates/Test Report

Marine / ShippingotherDangerous Good

RMRS / Russian Maritime Register

Confirmation

Transport Information

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Further characteristics (e.g. electrical endurance, switching frequency)
last modified:12/2/2021
Date
5/11/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3TC4417-0BC1
Product DescriptionContactor, Size 2, 2-pole, DC-3 and 5, 32 A Auxiliary contacts 22 (2 NO + 2 NC) 24 V AC 60 Hz/20 V AC 50 Hz AC operation
Product family3TC contactors for switching DC voltage, 1-pole and 2-pole
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41B / 41B
Surcharge for Raw MaterialsNone
Metal FactorLDO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-worksOn request
Net Weight (kg)0,670 Kg
Packaging Dimension77,00 x 93,00 x 130,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209034495
UPC754554735863
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5807
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.02.2012
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-10-18
eClass7.127-37-10-18
eClass827-37-10-18
eClass927-37-10-18
eClass9.127-37-10-18
ETIM5EC002552
ETIM6EC002552
ETIM7EC002552
ETIM8EC002552
IDEA44755
UNSPSC1439-12-15-21
UNSPSC1539-12-15-29

ETIM data

ETIM: EC002552 - Power contactor, DC switching

Value Unit
Rated control supply voltage Us at AC 50HZ (EF003978) ['20.0', '20.0']V
Rated control supply voltage Us at AC 60HZ (EF003979) ['24.0', '24.0']V
Rated control supply voltage Us at DC (EF003980) ['-', '-']V
Voltage type for actuating (EF008242) AC
Rated operation power at DC-3 / DC-5 at 440 V (EF007026) 9.0kW
Rated operation current Ie at DC-3 / DC-5 at 440 V (EF007035) 29A
Modular version (EF001126) true
Number of auxiliary contacts as normally open contact (EF001376) 2
Number of auxiliary contacts as normally closed contact (EF001377) 2
Type of electrical connection of main circuit (EF006819) Screw connection
Number of normally closed contacts as main contact (EF001375) 0
Number of main contacts as normally open contact (EF001374) 2


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
3TC4417-0BC1 3TC4417-0BC1 EN_3TC4417-0BC1.pdf 185 Kbytes 3TC4417-0BC1 3TC4417-0BC1 EN_3TC4417-0BC1.pdf
