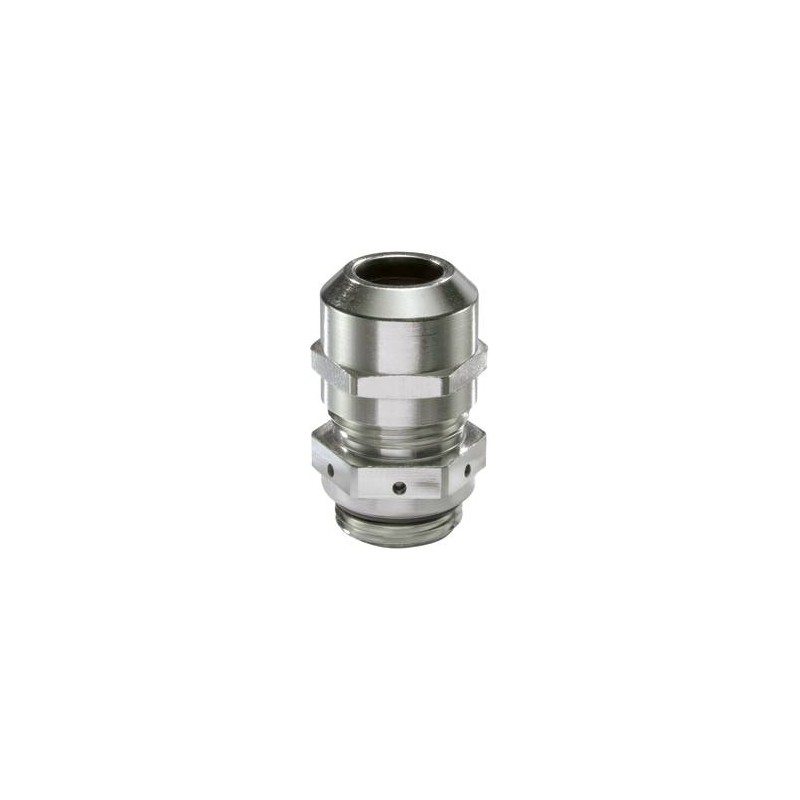

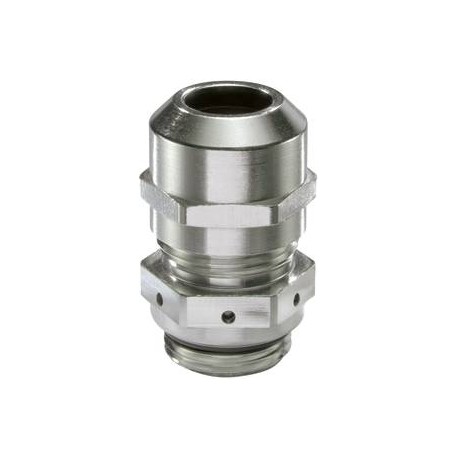

EMSVG 32 10065902 WISKA Metal VentGLAND cable glands, IP69K, range 13 to 21mm, M32 thread
EMSVG 32
10065902
WISKA
Metal VentGLAND cable glands, IP69K, range 13 to 21mm, M32 thread
Pressure compensation cable gland, brass nickel-plated, M32
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 115 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Ø cable diameter UL | 14,6 mm - 19,5 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| Total length TL | 47 mm - 56 mm |
| Order no. nickel-plated | 10065902 |
| Type | EMSVG 32 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EMSVG 32 10065902 EN_10065902.pdf | 327 Kbytes |
|
