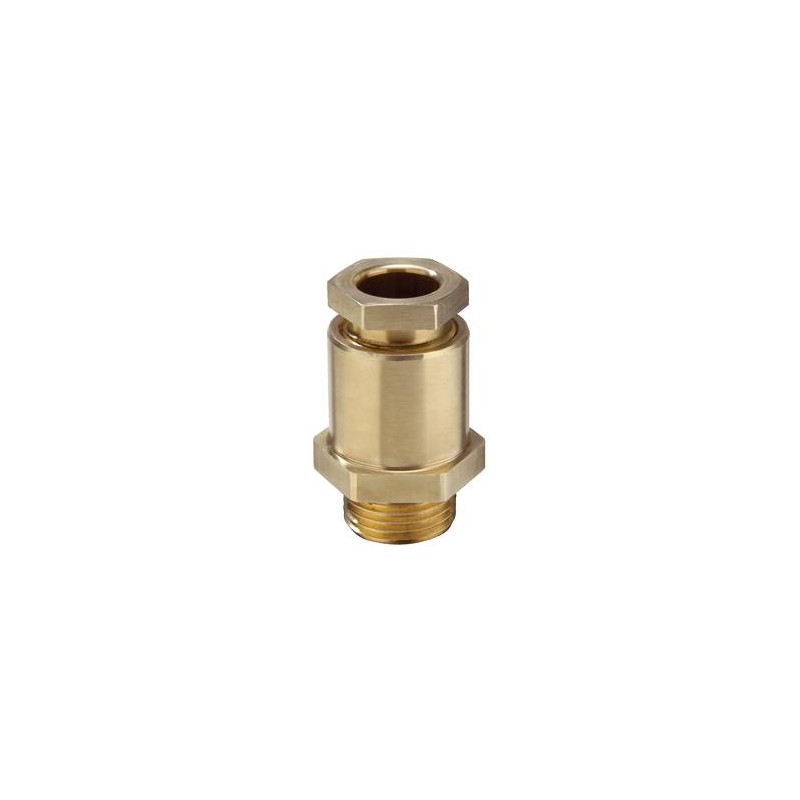

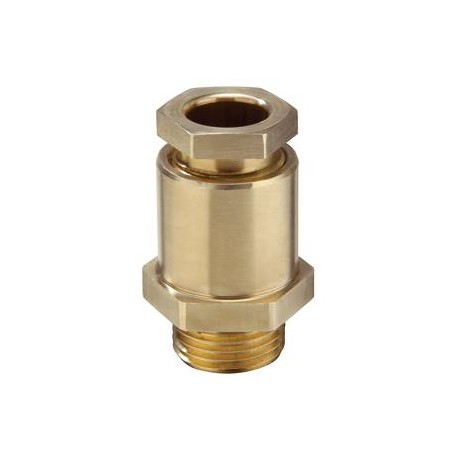

KVMS 18-W10/lb 10016871 WISKA Hexagonal, metal DIN 89280 "W" IP54 cable glands range from 8 to 10.5mm, threa..
KVMS 18-W10/lb
10016871
WISKA
Hexagonal, metal DIN 89280 "W" IP54 cable glands range from 8 to 10.5mm, thread M18
Cable gland, brass, DIN 89280, M18
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 18 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 8 mm |
| Ø cable diameter max | 10,5 mm |
| Key width SW1 | 19 mm |
| Key width SW2 | 24 mm |
| Collar diameter E1 | 21 mm |
| Collar diameter E2 | 26 mm |
| Total length TL | 43 mm |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| Surface | Bright |
| Order no. bright | 10016871 |
| Type | KVMS 18-W10 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| KVMS 18-W10/lb 10016871 EN_10016871.pdf | 307 Kbytes |
|
