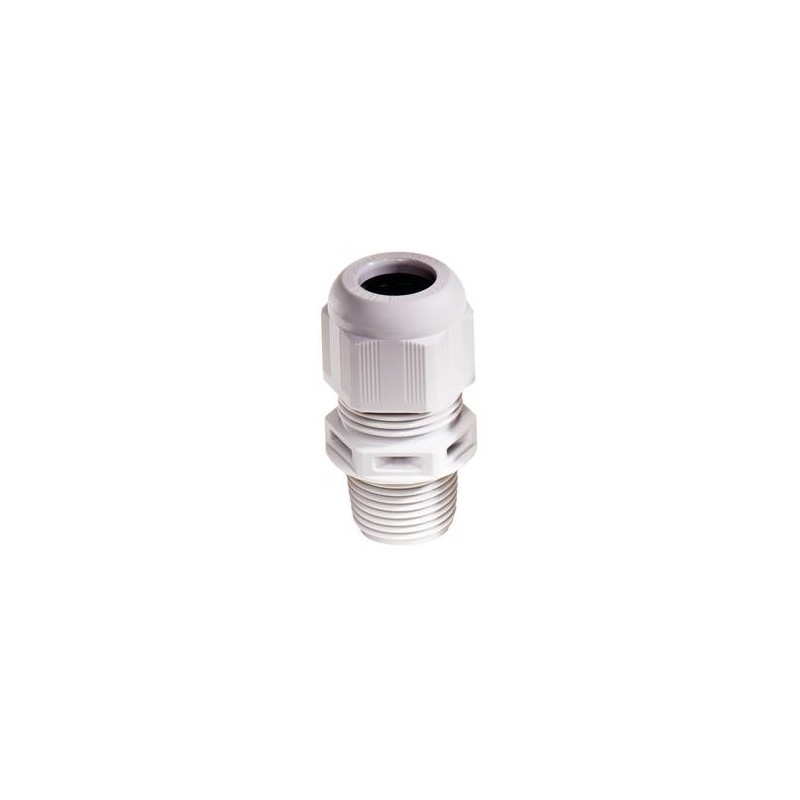

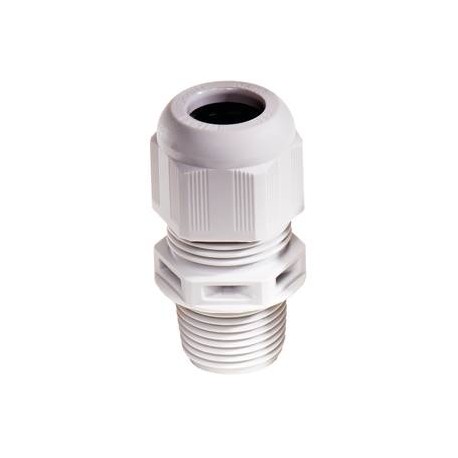

NSKV 1/4 LT/GL 10061513 WISKA PA cable glands, light grey RAL 7035 IP68 -60oC, range from 3.0mm to 7.0mm, NP..
NSKV 1/4 LT/GL
10061513
WISKA
50
PA cable glands, light grey RAL 7035 - IP68 -60oC, range from 3.0mm to 7.0mm, NPT thread 1/4
Cable gland LowTemp, polyamide, NPT 1/4", RAL 7035
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | NPT |
| Ø Connection thread D | 1/4" |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 7 mm |
| Key width SW | 16 mm |
| Collar diameter (E) | 18 mm |
| Total length TL | 34 mm - 39 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Install. torques fitting | 2 N m |
| Install. torques cap nut | 2 N m |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10061513 |
| Type | NSKV 1/4 LT |
| Packing unit | 50 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| NSKV 1/4 LT/GL 10061513 EN_10061513.pdf | 232 Kbytes |
|
