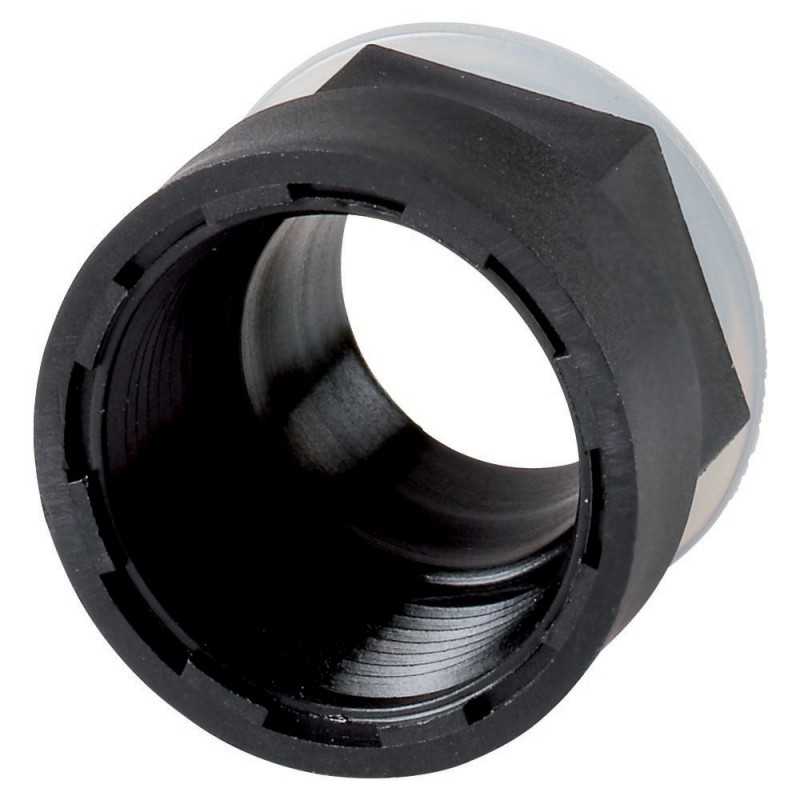

VPG13,5/M20 225268 VPG13P5ZOLL-M20 EATON ELECTRIC Adaptador M20 en PG13 5
VPG13,5/M20
225268
Y7-225268
EATON-MOELLER
10
Adaptador M20 en PG13; 5
Eaton Moeller® series AT0 Adapter M20 in PG13.5
Sistemas de entradas de cables / conductores > Anillo de expansión / reducción
Interruptores de posición
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller® series AT0 Accessory Adapter
Catalog Number
225268
EAN
4015082252687
Product Length/Depth
27 mm
Product Height
27 mm
Product Width
24 mm
Product Weight
0.006 kg
Compliances
CE
Model Code
VPG13,5/M20
Features & Functions
Material
Plastic
General
Product category
Accessories
Type
Adapter
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
