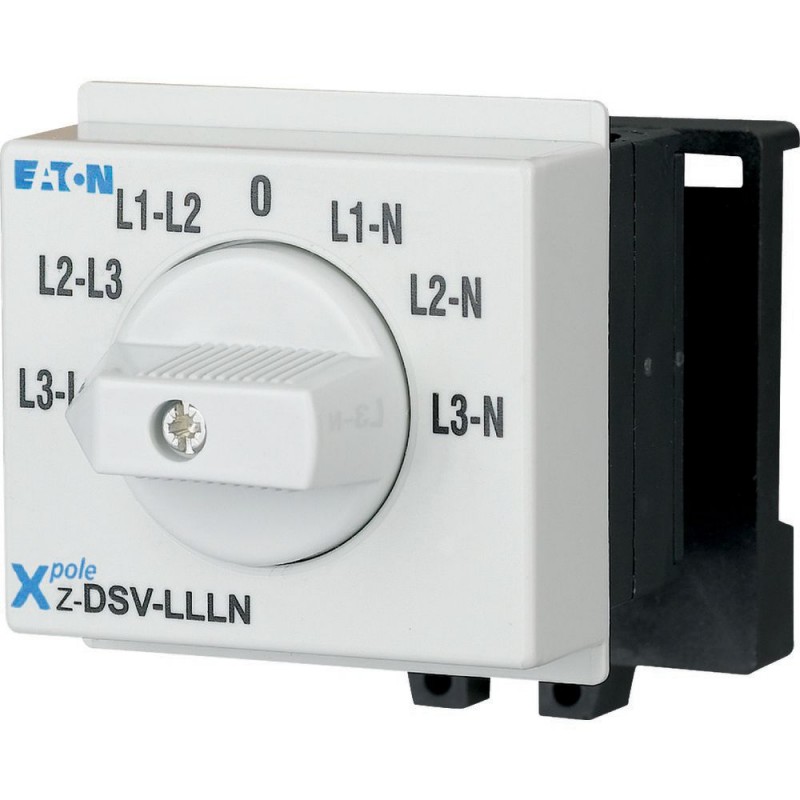

Z-DSV-LLLN 248880 EATON ELECTRIC Interruptor rotativo, L+N voltmeteDer., L1 N3... Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

Z-DSV-LLLN 248880 EATON ELECTRIC Interruptor rotativo, L+N voltmeteDer., L1 N3...

Z-DSV-LLLN

248880

Y7-248880

EATON-MOELLER

Interruptor rotativo, L+N voltmeteDer., L1 - N3...

Z-DSV-LLLN. Rotary switches, L+N voltmeter, L1 - N3...

Más detalles


Aparamenta para montaje en carril DIN / armario > Interruptor para instalación en serie

Aparamenta Modular – Varios y accesorios

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $109.56
Precio unitario: $109.56

Cantidad Precio
1+$109.56
2+$93.77
3+$87.79
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

Más Información



Especificaciones generales

Product Name
Eaton Distribution parts
Catalog Number
248880
EAN
4015082488802
Product Length/Depth
65 mm
Product Height
78.5 mm
Product Width
52 mm
Product Weight
0.12 kg
Compliances
RoHS conform
Model Code
Z-DSV-LLLN

Product specifications

Equipment heat dissipation, current-dependent
3 W
Rated operational voltage (Ue) - max
690 V
Static heat dissipation, non-current-dependent
0 W
Voltage rating - min
440 V
Width in number of modular spacings
3
Number of poles
Single-pole
Color calotte
Other
Switch type
Other
Rated short-time withstand current (Icw)
10 kA
Lamp socket
Other
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-40 °C
Built-in depth
60 mm
Amperage rating
20 A
Voltage type
AC
Lamp type
Other
Degree of protection
IP20
Heat dissipation capacity
0 W
Heat dissipation per pole, current-dependent
0 W
Lamp power
0 W
Number of contacts (change-over contacts)
1
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
Inscription
Other
Rated operational current for specified heat dissipation (In)
20 A
Rated Switching Capacity
0.02 kA

Datasheet - PDF
