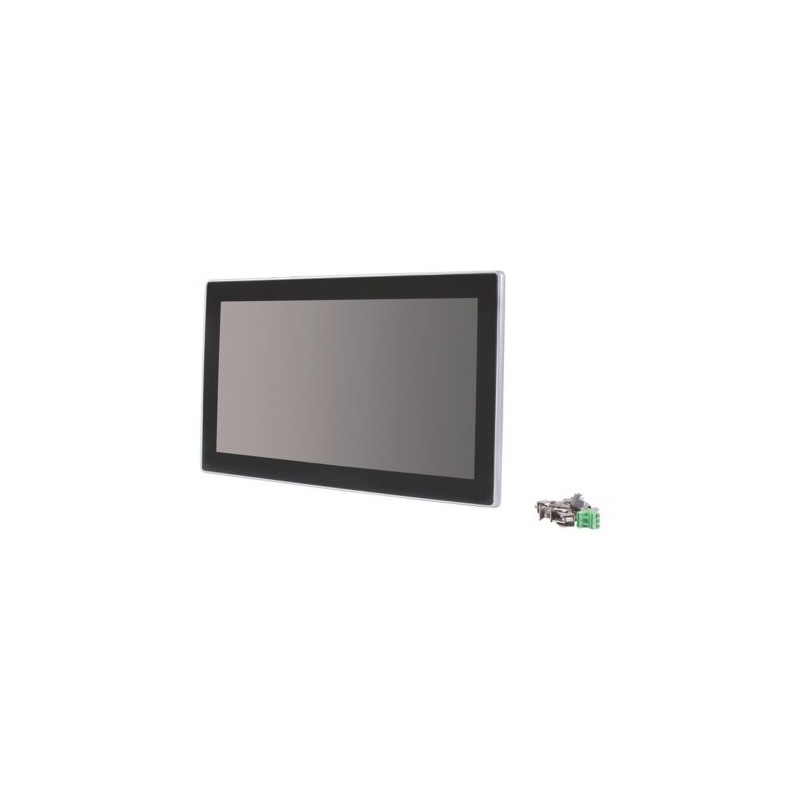

XV-303-15-C00-A00-1D 191077 EATON ELECTRIC User interface, 24VDC, 15.6-inch PCT widescreen display, 1366x768..
XV-303-15-C00-A00-1D
191077
Y7-191077
EATON-MOELLER
User interface, 24VDC, 15.6-inch PCT widescreen display, 1366x768 pixels, 2xEthernet, 1xRS232, 1xRS485, 1xCAN, 1xSD card slot, VisualDesigner
Terminale touch capacitivo multi-touch da 15" 1366 x 768 Ethernet
sistemi di controllo industriali (PLC) > pannello grafico
Terminali Touch HMI
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton XV-303 Touch panel
Catalog Number
191077
EAN
7640130099166
Product Length/Depth
403.7 mm
Product Height
76.6 mm
Product Width
254.9 mm
Product Weight
3.9 kg
Certifications
EN 50178
CUL
EMC according to 2014/30/EU
DNV GL
IEC/EN 61131-2
CUL
EMC according to 2014/30/EU
DNV GL
IEC/EN 61131-2
Model Code
XV-303-15-C00-A00-1D
Features & Functions
Enclosure material
Insulated material
Aluminum (die-cast, glass panel)
Aluminum (die-cast, glass panel)
Features
USB device
RS485
USB Host
Target and web visualization
CAN
Integrated Runtime visualization software license
Slot for SD card
Fanless CPU and system cooling, natural convection-based passive cooling
Portrait format
Operating System Windows Embedded Compact 7 pro
Ethernet interface
RS232
RS485
USB Host
Target and web visualization
CAN
Integrated Runtime visualization software license
Slot for SD card
Fanless CPU and system cooling, natural convection-based passive cooling
Portrait format
Operating System Windows Embedded Compact 7 pro
Ethernet interface
RS232
Fitted with:
1 x RS232 (built-in interface)
Message indication
1 x USB device (built-in interface)
1 x RS485 (built-in interface)
Recipes
Printer output
SW interfaces
Message system (incl. buffer and confirmation)
1 x USB host 2.0 (built-in interface)
Color display
1 x CANopen®/easyNet (built-in interfaces)
2 x Ethernet 10/100 Mbps (built-in interface)
Message indication
1 x USB device (built-in interface)
1 x RS485 (built-in interface)
Recipes
Printer output
SW interfaces
Message system (incl. buffer and confirmation)
1 x USB host 2.0 (built-in interface)
Color display
1 x CANopen®/easyNet (built-in interfaces)
2 x Ethernet 10/100 Mbps (built-in interface)
Functions
Process default value (input) possible
Process value representation (output) possible
Additional software components, loadable
Process value representation (output) possible
Additional software components, loadable
General
Battery runtime
Back-up of real-time clock: BR 2330, non-replaceable (soldered)
Degree of protection
IP20, rear (according to EN 60529-1)
NEMA 12
NEMA 4X
NEMA 12
NEMA 4X
Degree of protection (front side)
NEMA 12
IP65
IP65
Fuse type
Built-in fuse (not accessible)
Lifespan
50,000 h (Service life of back-lighting)
Model
Plastic enclosure and glass panel in plastic frame
Mounting method
Flush mounting - Inclination from vertical: ⍺ ≤ ± 45° at operating temperature ≤ 45°C (113°F) (if using natural convection)
Flush mounting - Inclination from vertical: ⍺ ≤ ± 10 ° (if using natural convection)
Flush mounting - Clearance: Width x Height ≥ 50 mm (1.97"), Depth ≥ 20 mm (0.79")
Flush mounting
Flush mounting - Mounting plate: min. 1.5 mm (0.06"), max. 4 mm
Flush mounting - Inclination from vertical: ⍺ ≤ ± 10 ° (if using natural convection)
Flush mounting - Clearance: Width x Height ≥ 50 mm (1.97"), Depth ≥ 20 mm (0.79")
Flush mounting
Flush mounting - Mounting plate: min. 1.5 mm (0.06"), max. 4 mm
Potential isolation
Power supply: no
Protection against polarity reversal
Yes, for supply voltage (Siemens MPI optional)
Product category
HMI-PLC (SPS function, retrofittable)
RoHs conformity
Yes
Software
VISUAL DESIGNER
XSOFT-CODESYS-3, PLC-Programming software, Engineering
XSOFT-CODESYS, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
Software (Engineering): visualization = Visual Designer
XSOFT-CODESYS-3, PLC-Programming software, Engineering
XSOFT-CODESYS, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
Software (Engineering): visualization = Visual Designer
Type
Control panel with 2nd Ethernet port
Voltage type
DC
Ambient conditions, mechanical
Shock resistance
15 g, 11 ms, Mechanical
Vibration resistance
60 - 150 Hz, ± 2 g
5 - 9 Hz, ± 3.5 mm
9 - 60 Hz, ± 0.15 mm
5 - 9 Hz, ± 3.5 mm
9 - 60 Hz, ± 0.15 mm
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Cold to EN 60068-2-1
Dry heat to IEC 60068-2-2
Cold to EN 60068-2-1
Dry heat to IEC 60068-2-2
Environmental conditions
Condensation: Non-condensing
Operating temperature - min
0 °C
Operating temperature - max
50 °C
Relative humidity
10 - 95 % (non-condensing)
Electro magnetic compatibility
Emitted interference
According to IEC/EN 61000-6-4
Interference immunity
According to EN 61000-6-2
Voltage dips
≤ 10 ms from rated voltage (24 V DC)
5 ms from undervoltage (19.2 V DC)
5 ms from undervoltage (19.2 V DC)
Electrical rating
Permissible voltage
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
18.0 - 31.2 V DC, absolute with ripple
35 V DC (for a duration of < 100 ms)
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
18.0 - 31.2 V DC, absolute with ripple
35 V DC (for a duration of < 100 ms)
Power consumption
16 W typ.
Max. 21.6 W
19.1 W
Max. 21.6 W
19.1 W
Rated operational voltage
24 V DC (power-supply - safety extra low voltage)
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
19.2 VDC
Supply voltage at DC - max
30 VDC
Communication
Interfaces
USB 2.0 device (not galvanically isolated)
CAN (not galvanically isolated, 9-pin SUB-D plug, UNC)
10/100 Mbps Ethernet connection
RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC)
USB 2.0 host (not galvanically isolated)
CAN (not galvanically isolated, 9-pin SUB-D plug, UNC)
10/100 Mbps Ethernet connection
RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC)
USB 2.0 host (not galvanically isolated)
Number of slots
1 (for SD-Card)
Protocol
MODBUS
EtherNet/IP
TCP/IP
CAN
EtherCAT
EtherNet/IP
TCP/IP
CAN
EtherCAT
Display
Display contrast ratio
500:1
Display lighting
LED
Dimmable via software
Dimmable via software
Display size
344.23 x 193.54 mm
16:9
16:9
Display type
Non-reflective tempered glass in aluminum frame
Color display, TFT, anti-glare
TFT
Color display, TFT, anti-glare
TFT
Display viewing angle
85°/85°/80°/80° (left/right/up/down)
Luminance intensity
300 cd/m²
Number of colors of the display
16777216
Resolution
Screen size (diagonal)
15.6 in
Touch technology
Projected Capacitive Touch (PCT)
Capacitive multitouch
Multi-touch touch panel touch sensor
Capacitive multitouch
Multi-touch touch panel touch sensor
System
Backup time
10 years, typ. (time at zero voltage)
Memory
Flash: 1 GByte SLC
NVRAM: 128kByte Retain
DRAM: 512 MByte RAM
SD card, Type: SDSC, SDHC (external memory)
NVRAM: 128kByte Retain
DRAM: 512 MByte RAM
SD card, Type: SDSC, SDHC (external memory)
Memory capacity
512,000 kByte
Operating system
Windows Embedded Compact 7 Pro
Processor
ARM Cortex-A9 800 MHz
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
21.6 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
