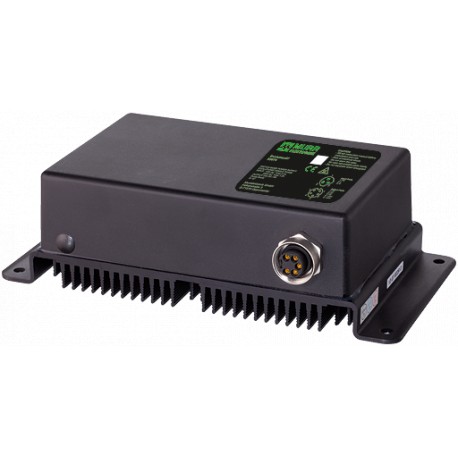

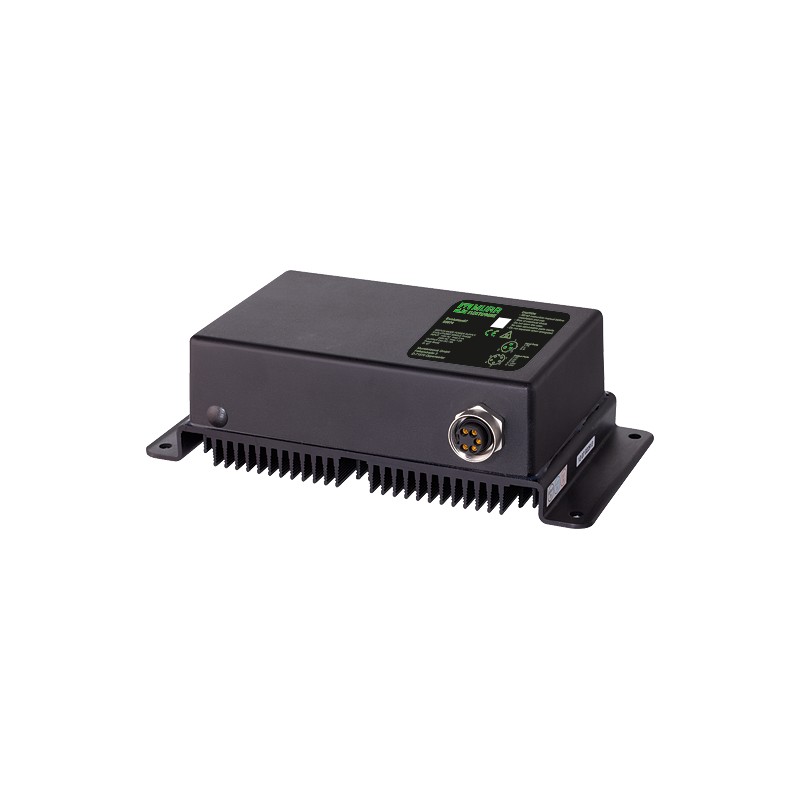

85674 MURRELEKTRONIK EVOLUTION67 power supply 1-phase IN: 90...264 V OUT: 24V/8A
85674
MURRELEKTRONIK
EVOLUTION67 power supply 1-phase IN: 90...264 V OUT: 24V/8A
Power supplies
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲IN: 90...264 V OUT: 24V/8A
| Art.No.: | 85674 |
| Weight: | 2.6 kg |
OUTPUT: 24 V DC ±2%
INPUT: 90...264 V AC (M12)
Current: 8 A
INPUT: 90...264 V AC (M12)
Current: 8 A
Input
| Input voltage | 90...264 V DC |
|---|---|
| Input current | 2.4 A (115 V AC); 1.2 A (230 V AC) |
| Primary fusing external | max. 10 A (C) |
| Frequency | 50...60 Hz |
General data
| Standards | EN 60950-1, EN 61204-3, EN 55011 A, EN 61000-3-2 |
|---|---|
| Relative humidity | 5...95%, no condensation |
| Protection | IP67 inserted and tightened (EN 60529) |
| Efficiency | 89% |
| Connection | IN: M12, C-coded; OUT: 7/8" |
| Mounting method | screw fixing, M5 |
| Temperature range | -25...+60 °C (storage temperature -40...+85 °C) |
Output
| Output voltage | 24 V DC (SELV), ±2% |
|---|---|
| Power Boost | Iout N × 150% (min. 4 s) |
| Output current | 8 A (+60 °C); 6.4 A (+70 °C) |
| Mains failure bridging time | min. 50 ms (230 V AC); 8 A (24 V DC) |
| Ripple | max. 240 mVrms |
| Spikes | max. 240 mV p-p |
| Unit protection | Short-circuit and overload protected |
| LED display | LED (green): OK |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85044090 |
| EAN | 4048879410601 |
| eClass | 27049002 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 85674 85674 85674_Data_Sheet_1.pdf | 87 Kbytes |
|
| Download general catalog |
|
