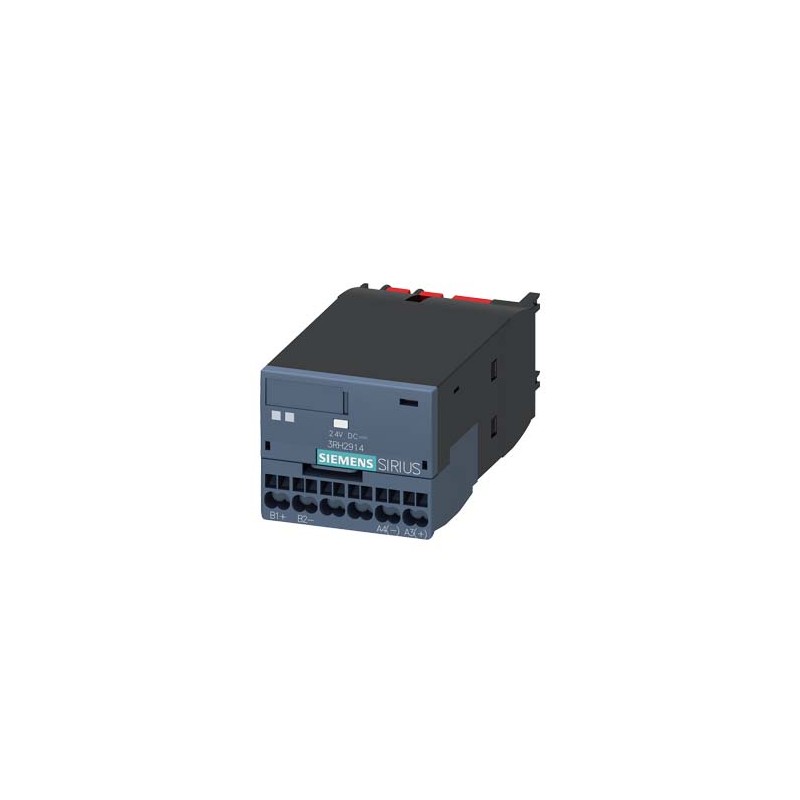

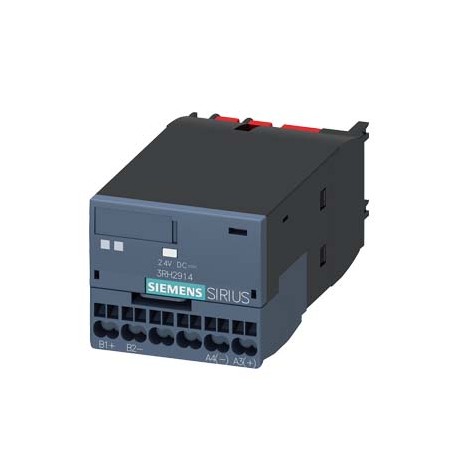

3RH2914-2GP11 SIEMENS Coupling link for front-end mounting to AC, DC, AC / DC Contactors, 3RT2 S00-S3, 24 V .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3RH2914-2GP11 SIEMENS Coupling link for front-end mounting to AC, DC, AC / DC Contactors, 3RT2 S00-S3, 24 V ..

3RH2914-2GP11

SIEMENS

Coupling link for front-end mounting to AC, DC, AC / DC Contactors, 3RT2 S00-S3, 24 V DC Control, Spring-type terminal

More details


CONTROL AND CONTACTORS > Contactors for switching motors

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $76.24
Unit price: $76.24

Quantity Price
1+$76.24
2+$65.82
3+$60.82
4+$58.45
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Coupling link for front-end mounting to AC, DC, AC / DC Contactors, 3RT2 S00-S3, 24 V DC Control, Spring-type terminal
General technical data
product brand nameSIRIUS
size of contactorS00, S0, S2, S3
protection class IP on the frontIP20
degree of pollution3
product component protective wiringYes
ambient temperature
● during storage°C-40 ... +80
● during operation°C-25 ... +60
insulation voltage rated valueV300
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage 1
● at DC rated valueV24
operating range factor control supply voltage rated value of magnet coil
● at DC0.7 ... 1.25
Auxiliary circuit
number of NO contacts for auxiliary contacts instantaneous contact1
operational current of auxiliary contacts
● at AC-12
— at 24 VA6
— at 230 VA6
● at AC-15
— at 24 VA3
— at 230 VA3
● at DC-13
— at 24 VA1
— at 110 VA0.2
— at 220 VA0.1
Installation/ mounting/ dimensions
mounting positionany
fastening methoddirect mounting
widthmm45
heightmm35
depthmm50
Connections/ Terminals
type of connectable conductor cross-sections
● for auxiliary contacts
— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
— finely stranded
— with core end processing2x (0.5 ... 1.5 mm²)
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCTest CertificatesMarine / Shipping

Confirmation

UL

EAC

RCM

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

Marine / Shipping

BV / Bureau Veritas

DNV / Det Norske Veritas

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

otherRailway

Confirmation

Household and similar appliances

Vibration and Shock

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/21/2020
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RH2914-2GP11
Product DescriptionCoupling link for front-end mounting to AC, DC, AC / DC Contactors, 3RT2 S00-S3, 24 V DC Control, Spring-type terminal
Product familyCoupling links for control by PLC
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41B / 41B
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works60 Day/Days
Net Weight (kg)0,071 Kg
Packaging Dimension50,00 x 108,00 x 55,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209953284
UPC887621914790
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group3729
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-92-01
eClass7.127-37-92-01
eClass827-37-92-01
eClass927-37-92-01
eClass9.127-37-92-01
ETIM5EC002498
ETIM6EC002498
ETIM7EC002498
ETIM8EC002498
IDEA44727
UNSPSC1539-12-15-21

ETIM data

ETIM: EC002498 - Accessories/spare parts for low-voltage switch technology

Value Unit
Type of accessory/spare part (EF000215) -


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
3RH2914-2GP11 3RH2914-2GP11 EN_3RH2914-2GP11.pdf 222 Kbytes 3RH2914-2GP11 3RH2914-2GP11 EN_3RH2914-2GP11.pdf
