3SE2243-0XX SIEMENS Safety position switch with separate actuator Molded-plastic enclosure lateral and face-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SE2243-0XX SIEMENS Safety position switch with separate actuator Molded-plastic enclosure lateral and face-..

3SE2243-0XX

SIEMENS

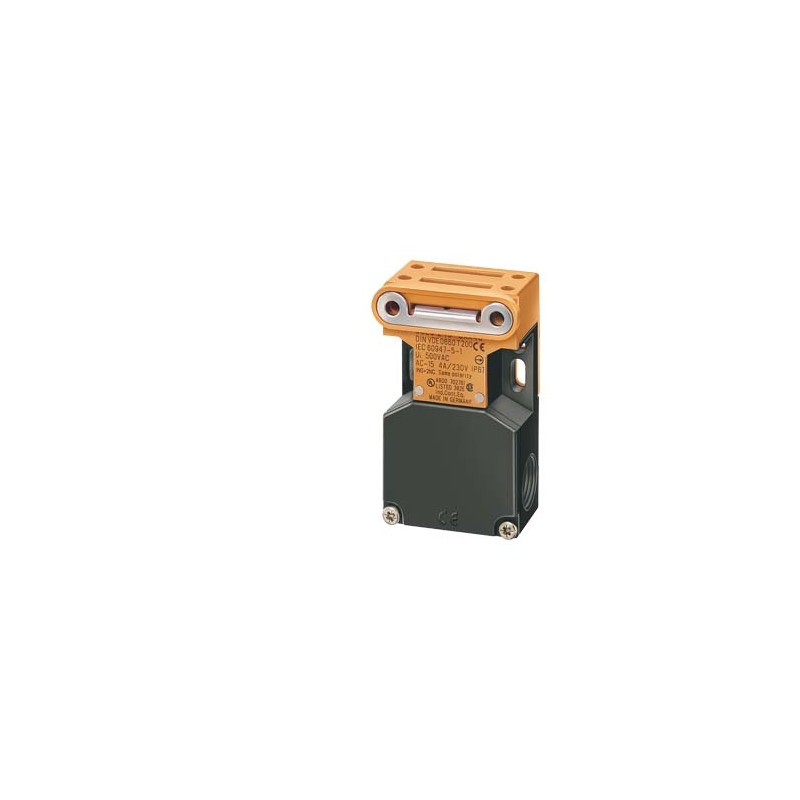

Safety position switch with separate actuator Molded-plastic enclosure lateral and face-end Slow-action contacts 1 NO+2 NC, 3 x (M20 x 1.5) Pull-out force 30 N Supplied without actuator

More details


Sensors > Position switch with separate actuator

CONTROL AND CONTACTORS > Limit Switches and safety relays

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $48.62
Unit price: $48.62

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


Technical data

Safety position switch with separate actuator Molded-plastic enclosure lateral and face-end Slow-action contacts 1 NO+2 NC, 3 x (M20 x 1.5) Pull-out force 30 N Supplied without actuator
