SKVS 13,5/B
10061874
WISKA
25
Black cable glands RAL 9005, PA IP68, flexible protection input range from 6.0 to 12.0mm, pg.13 thread

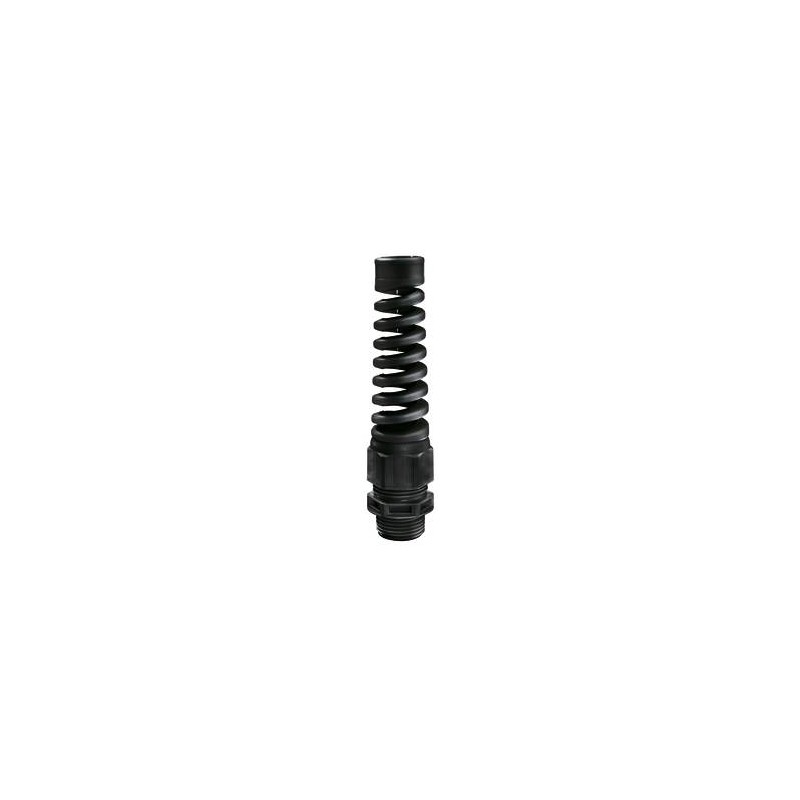

Cable gland with bend protection, polyamide, Pg 13,5 RAL 9005
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material cable gland | Polyamide |
Material sealing gasket | EPDM |
Protection class | IP69, IP68 (5 bar 30 min) |
Temp. range min | -20 °C |
Temp. range max | 80 °C |
Glow wire test | 750 °C |
Thread type | PG |
Ø Connection thread D | 13,5 |
Length screw-in thread L | 9 mm |
Ø cable diameter min | 6 mm |
Ø cable diameter max | 12 mm |
Key width SW | 24 mm |
Collar diameter (E) | 27 mm |
Total length TL | 105 mm |
Type of cable anchorage | A |
Product Color | RAL 9005 |
Type | SKVS 13,5 |
Order no. RAL 9005 | 10061874 |
Packing unit | 25 |
ETIM-Classification | EC000441 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
SKVS 13,5/B 10061874 EN_10061874.pdf | 414 Kbytes |
